WeCo 16K0 HV rack akkumulátor 16,1 kWh

Name: WeCo 16K0 HV rack akkumulátor 16,1 kWh
Brand: WeCo
SKU: WECO-16K0-RACK-BATTERY
Price: 1126331.00 HUF
Availability: InStock

Vendor: WeCo

Type: Akkumulátor

SKU: WECO-16K0-RACK-BATTERY

1.126.331 Ft

Tax included.

Available in stock

Warranty:

Szeretné telepítéssel együtt? (KATTINTSON IDE)

Payment and delivery

Payment
You can pay for your order by bank transfer, in HUF or EUR. We will send you a payment request via email, which includes the necessary data for the transfer. If you would like a unique payment method (for example, cash or cash on delivery), select the “Unique payment plan” option and our colleagues will contact you to discuss the details.

Transport
The shipping fee depends on the size and type of the ordered product. For smaller packages, the home delivery fee is 3,790 HUF, for larger products it is 6,490 HUF. For solar panels, batteries and other large products, the delivery is based on an individual price quote, which our staff will always discuss with you after placing the order.

Product description

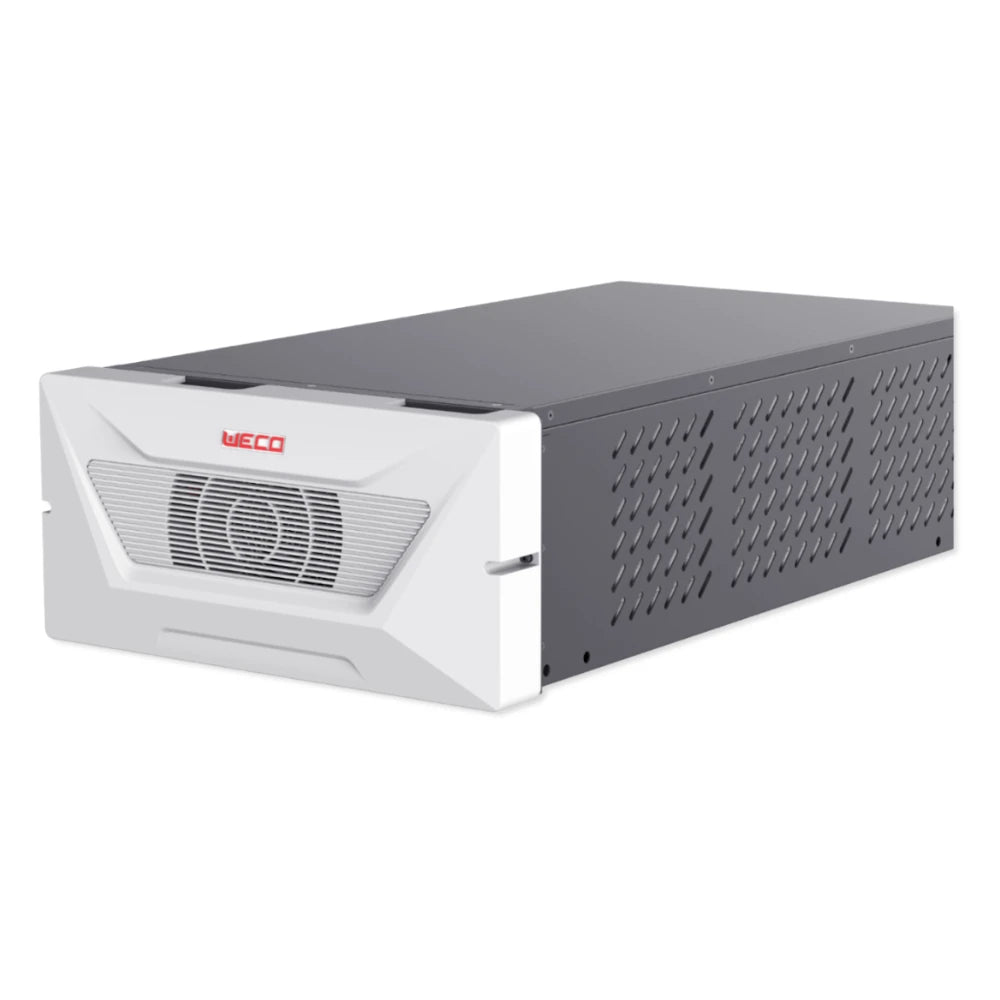

A WeCo 16K0 HV rack akkumulátor nagyfeszültségű, ipari energiatároló rendszerekhez készült modul. Egy akkumulátormodul kapacitása 16,0 kWh, névleges feszültsége 51,2 Vdc, a modul feszültségtartománya 46,5–56,8 Vdc.

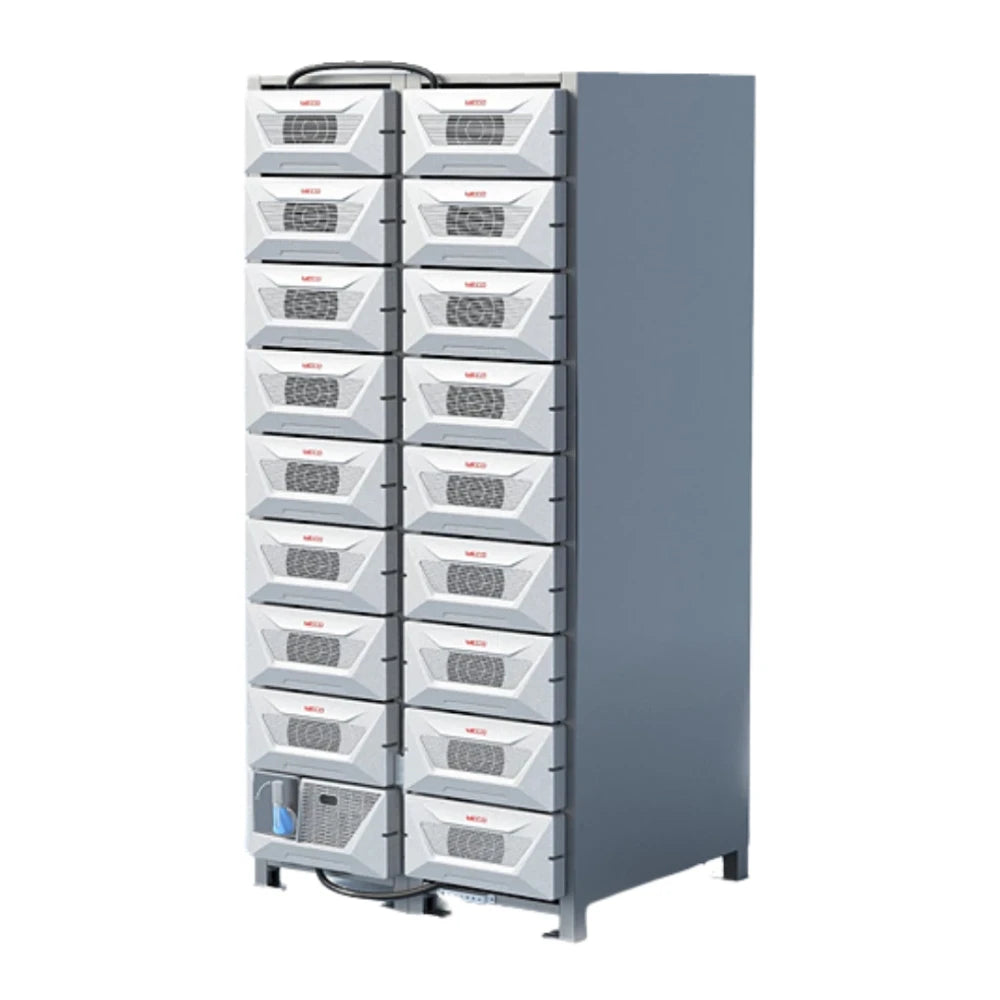

A rendszer rack szekrényes vagy WeCo A-Kool kabinetes kialakításban használható. Egy klaszterben 5–17 modul kapcsolható sorba, a klaszter nettó kapacitása így 80,4–273,3 kWh között alakulhat. HV-HUB használatával legfeljebb 8 klaszter is kialakítható.

A modul támogatja a valós idejű cellakiegyenlítést, az adaptív töltési/kisütési CAN logikát és a háromlépcsős adaptív töltést. A rendszerben HV Box használata szükséges.

Nagyfeszültségű rack akkumulátormodul
Kapacitás: 16,0 kWh
Névleges modulfeszültség: 51,2 Vdc
Feszültségtartomány: 46,5–56,8 Vdc
Kisütési mélység: akár 98%
Min. 5, max. 17 modul / klaszter
Klaszterkapacitás: 80,4–273,3 kWh
Max. 8 klaszter HV-HUB használatával
IP30 védelem, rack vagy A-Kool kabinetes alkalmazáshoz
RS485 / CAN / RS232 kommunikáció
Várható ciklusszám: >8000 25 °C-on, 80% DoD mellett

A WeCo 16K0 HV rack akkumulátor olyan nagyobb energiatároló rendszerekhez használható, ahol nagy kapacitású, rack alapú HV akkumulátoros kialakításra van szükség.

WeCo 16K0 HV rack akkumulátor 16,1 kWh

1.126.331 Ft

Névleges kapacitás (kWh)	16.08 kWh
Hasznosítható energia	16.0 kWh
Max. töltőáram	314 A
Max. kisütési áram	314 A
Névleges feszültség	51.2 V
Működési feszültségtartomány	46.5–56.8 V
IP védelem	IP30
Működési hőmérséklet	-5 °C ~ +55 °C
Méret	482 × 910 × 230 mm
Tömeg	109

Do you have a question?

View the most frequently asked questions or contact us.

How do I choose the right battery?

The most important thing is that the battery fits your inverter and the performance of your system. It is worth considering how much capacity (kWh) you need and whether you want to expand the system later.

Always check the inverter's technical data sheet, as it will tell you which batteries it is compatible with. For example, Huawei inverters only work with Huawei batteries, while Deye inverters can be connected to multiple manufacturers, offering a more flexible solution.

How do inverter types differ?

The lifespan of modern lithium batteries is usually 10–15 years, depending on usage and temperature conditions.

Manufacturers typically give an expected lifespan of 6,000–8,000 charging cycles – this can mean up to a decade and a half, assuming one cycle per day.

What happens in the event of a power outage?

If the inverter supports backup (stand-alone) operation, it will automatically switch to the battery during a power outage, so the most important consumers continue to operate.

It is important to know that if there is no backup function, the system will completely stop in the event of a power outage, even if the solar panels are producing. This is because most on-grid inverters cannot operate without mains voltage for safety reasons, so they cannot supply power or charge batteries.

What warranty does the battery have?

Depending on the manufacturer, batteries come with a 5 or 10 year warranty, and for some models this is also tied to the number of cycles. We indicate the exact warranty period on each product page, so you can always see how long the manufacturer's warranty lasts before you buy.

What happens if the battery fails?

If the battery is not working properly, it is a good idea to first have the problem diagnosed by a professional to rule out incorrect setup or installation. It is possible that the problem is not with the battery itself, but with a non-activated function or communication setting.

If it is proven that there is indeed a problem with the product, you should contact the manufacturer's or distributor's customer service, who will assist you in the troubleshooting process and the warranty administration process.
