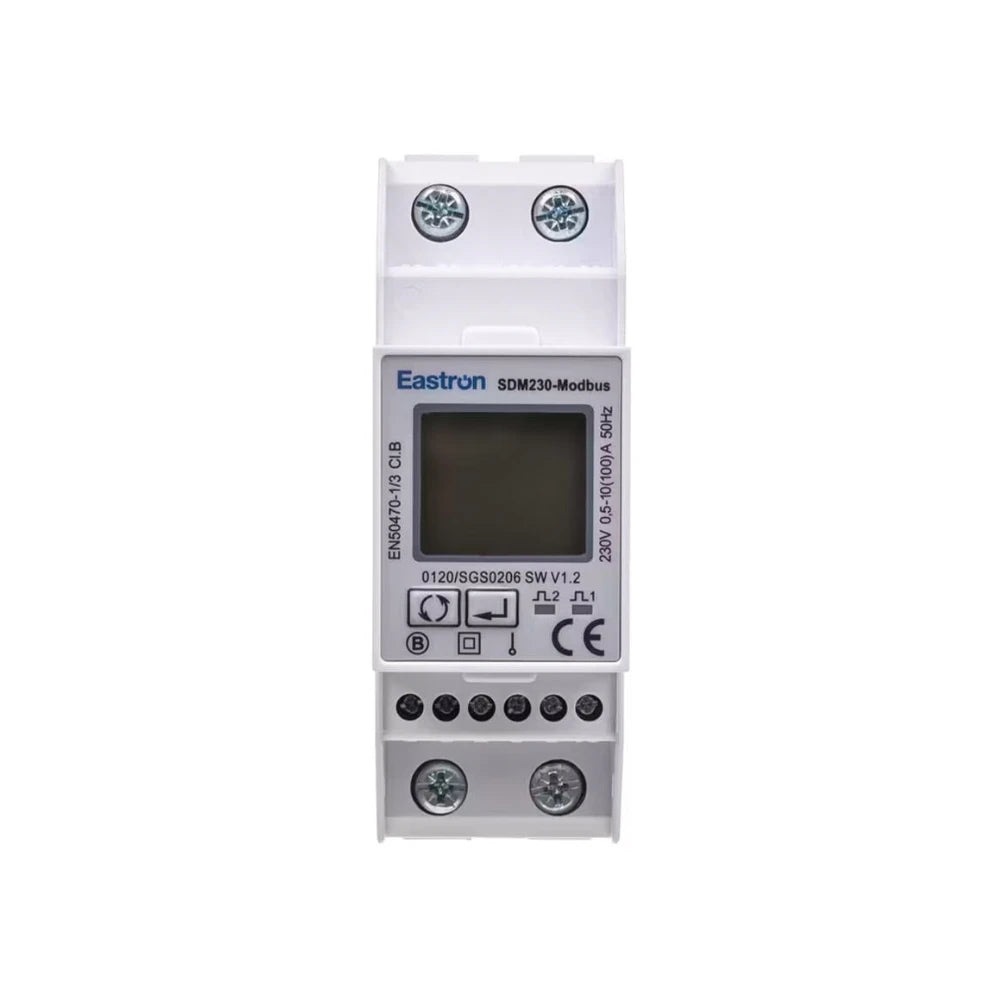

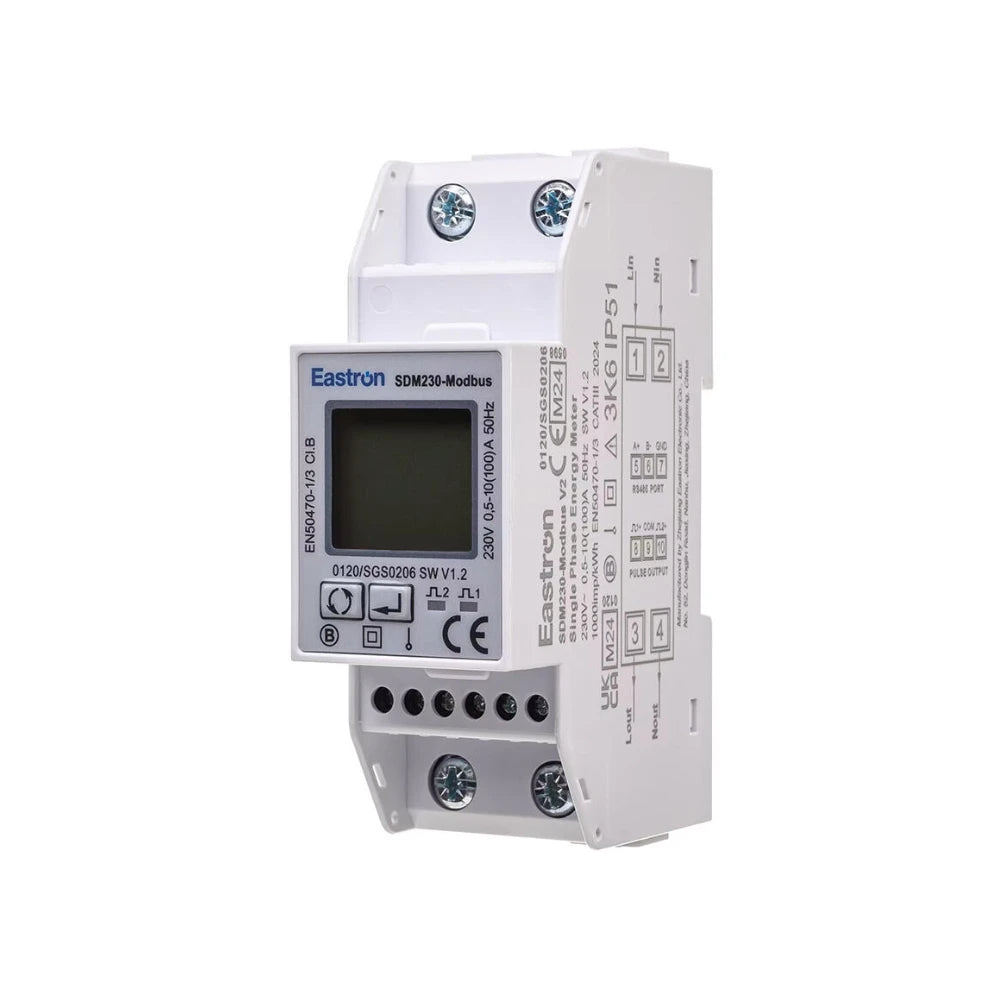

The Solplanet Smart Meter Eastron is a single-phase energy meter for Solplanet inverter systems. Based on distributor and manufacturer data, this type is typically referred to as the Eastron SDM230-Modbus meter, which can be used to measure consumption and feed-in data for single-phase systems.

The meter connects to the inverter via RS485 Modbus communication. Its role is to provide the inverter with more accurate data on the current household consumption, feed-in to the grid, and measurement values required for feed-in limitation operation.

The Eastron SDM230-Modbus is direct measurement, meaning it can be used without an external current transformer, up to a load of 100 A. It is DIN rail mountable, features a backlit LCD display, and measures various electrical parameters such as voltage, current, power, power factor, frequency, and import and export energy.

• Single-phase smart meter for Solplanet inverters
• Typical model: Eastron SDM230-Modbus
• RS485 Modbus RTU communication
• Direct measurement, without external CT
• Max. direct load capacity: 100 A
• For 230 V AC, single-phase networks
• DIN rail mountable design
• Measures import and export energy
• Measures voltage, current, power, frequency, and power factor
• Can be used for feed-in limitation and consumption monitoring

The Solplanet Eastron single-phase smart meter is necessary when the Solplanet inverter requires accurate consumption and grid measurement data, for example, due to export limitations or more detailed system monitoring.
