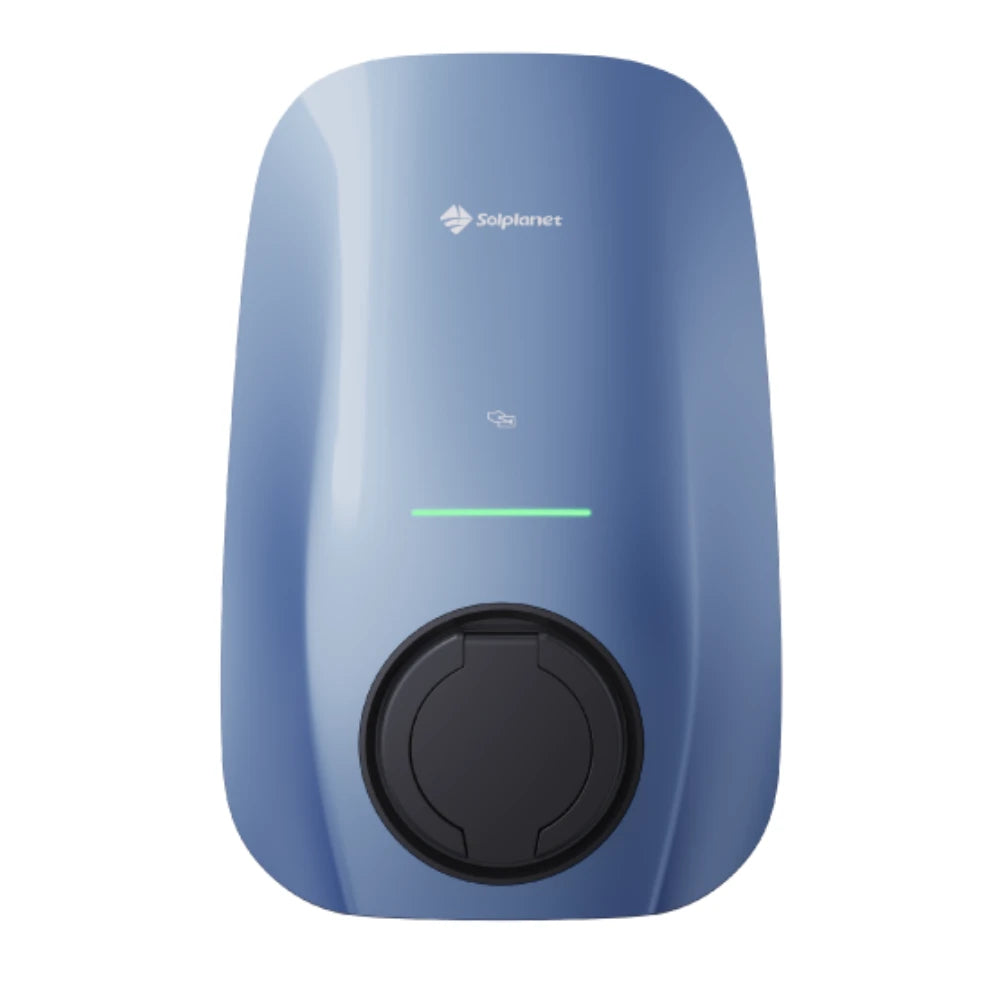

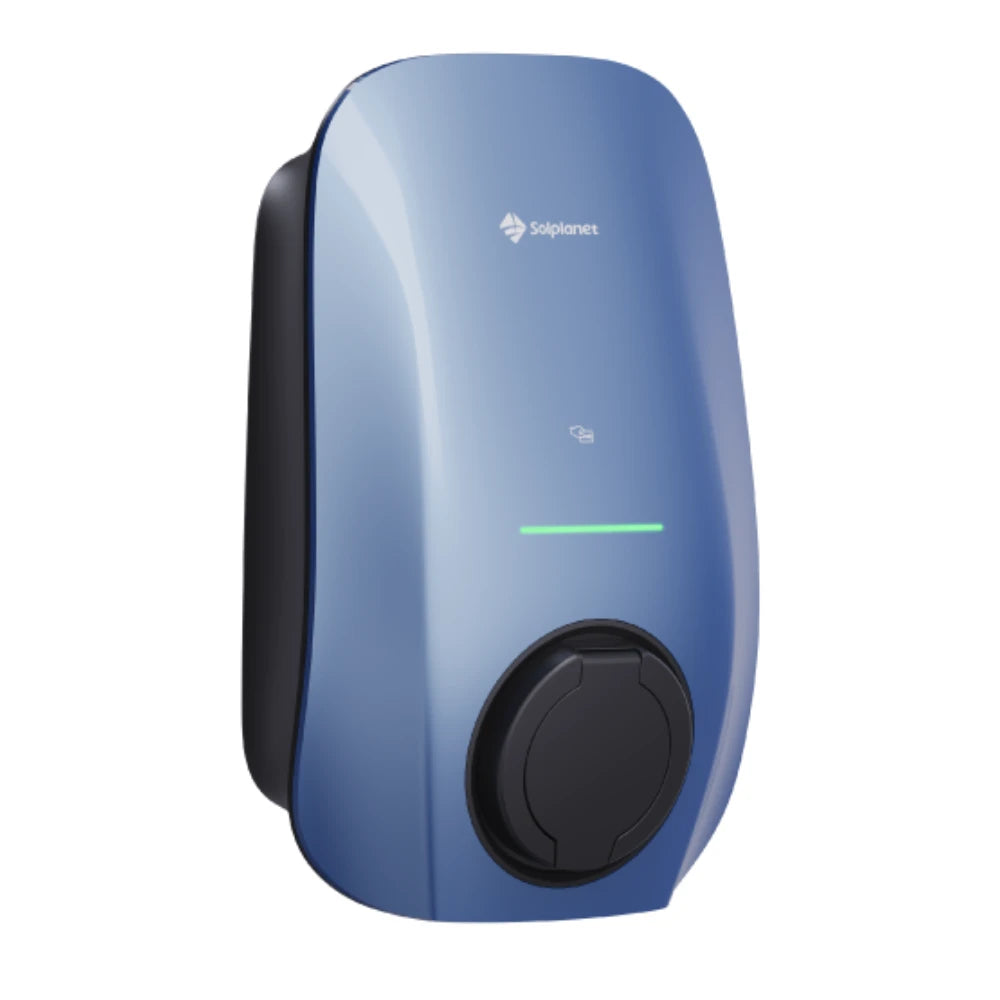

Solplanet Apollo EV charger 11kW - cable-free
Payment and delivery
Payment and delivery
Payment
You can pay for your order by bank transfer, in Hungarian Forints (HUF) or Euros (EUR). Cash on delivery is available for orders up to HUF 500,000, with a handling fee of HUF 4,990. For orders exceeding HUF 500,000, only bank transfer is accepted. We will send you a proforma invoice by email, which will include the necessary bank details for the transfer.
Delivery
We deliver your orders across the entire territory of Hungary with the help of our reliable logistics partners or our own transportation. Personal pickup is possible by prior arrangement. Shipping costs are determined based on the size, weight, and type of the ordered product:
- Small package: HUF 3,790
- Large package: HUF 6,490
- Heat pump: free delivery
- Solar panel and battery: custom shipping fee (based on size, weight, and quantity)
Product description
Product description
The Solplanet Apollo series of wall-mounted AC electric vehicle chargers is designed for home and small business use. The range includes 11 kW and 22 kW three-phase versions, available with a tethered cable or a Type 2 socket.
The 11 kW model operates with a maximum output current of 16 A on a 400 V AC three-phase network, while the 22 kW version supports a maximum output current of 32 A. The tethered cable version comes with a fixed Type 2 charging connector and a 5 or 7.5 meter cable, while with the socket version, the charging cable can be connected separately.
The chargers communicate via Wi-Fi, Bluetooth, RS485, and optional LAN connections. The built-in RFID / NFC reader and app control can be used to start, stop, and configure charging. With an optional energy meter, solar charging functionality and dynamic load balancing can also be implemented.
The housing has IP65 protection, IK10 impact resistance, and is UV-resistant. The chargers operate with natural convection cooling, indicate status with an LED light strip, and feature DC leakage current, overheating, grounding, and overvoltage protection.
- Three-phase AC EV chargers
- Available power: 11 kW and 22 kW
- Tethered cable and Type 2 socket versions
- 11 kW: 400 V AC, max. 16 A
- 22 kW: 400 V AC, max. 32 A
- Tethered version: 5 m or 7.5 m Type 2 cable
- Wi-Fi, Bluetooth, RS485 and optional LAN communication
- RFID / NFC identification and app control
- OCPP 1.6J support
- IP65 protection, IK10 impact resistance
- Natural cooling, LED status indication
- Optional energy meter for solar charging and dynamic load balancing
The Solplanet Apollo EV charger series is ideal when you need to charge an electric car from a three-phase network with a wall-mounted design, whether with a fixed cable or a separately connectable Type 2 charging cable.
| Max. töltési teljesítmény | 11 kW |
|---|---|
| Névleges feszültség | 400 V |
| Névleges áram | 16 A |
| Csatlakozó típusa | With Type 2 socket |
| Telepítés típusa | On the wall |
| Kábel | Not included |
| Méret | 230 x 360 x 130 mm |
| Tömeg | 2.6 |
| Garancia | 3 years |
Do you have a question?
View frequently asked questions, or contact us.
How do I choose the right home EV charger?
How do I choose the right home EV charger?
When choosing a home car charger, compatibility and available power are paramount.
First, it's worth checking the maximum charging power your car supports (e.g., 1 phase / 3 phase, kW), as the charger will need to match this. A more powerful charger does not necessarily mean faster charging if the car cannot utilize its full capacity.
Additionally, it's important to consider the capacity of your property's electrical grid to ensure the charger can operate safely and not overload the system.
If you're thinking long-term, it's worth choosing a charger with smart features (e.g., scheduling, load management, integration with solar systems) that allow for more efficient and economical use.
What is the difference between single-phase and three-phase chargers?
What is the difference between single-phase and three-phase chargers?
The main difference between single-phase and three-phase chargers lies in their charging power and grid requirements.
Single-phase chargers typically provide 3.6–7.4 kW of power, making them ideal primarily for systems with lower power consumption or lower charging needs.
Three-phase chargers, on the other hand, can deliver up to 11 or 22 kW of power, allowing for significantly faster charging.
However, it is important to note that faster charging is only achievable if both the electrical grid and the car support three-phase charging. Without this, the system will operate at limited power.
If you are unsure about your choice, it is advisable to check the technical specifications of both your property and your vehicle in advance to avoid oversizing or undersizing.
How long does it take to charge an electric car?
How long does it take to charge an electric car?
The charging time of an electric car depends on the battery size and the charger's power.
For an average battery with a capacity of ~60 kWh:
From a standard household socket (2.3 kW): approx. 24–30 hours
With an 11 kW wall charger: approx. 5–7 hours
With a 22 kW charger: approx. 3–5 hours (only if the car supports it)
It's important to note that charging in practice is not linear (it slows down towards the end), so the actual time may always be slightly longer.
If you regularly charge your car at home, a wall charger is a significantly faster and safer solution than a traditional socket.
Can you charge a car with solar panels?
Can you charge a car with solar panels?
Yes, an electric car can also be charged from solar panels, provided there is a suitable system.
This requires an inverter and a charger that can work with the solar panel system and prioritize the use of the generated energy.
Many modern car chargers have a "PV optimized" or "solar priority" mode, which primarily adapts charging to the available solar energy.
If the system also includes a battery, the energy generated during the day can be used later to charge the car, thus achieving even greater energy independence.
What warranty applies to car chargers?
What warranty applies to car chargers?
In most cases, a 2-5 year manufacturer's warranty applies, ensuring the reliable operation of the device under normal use.
The exact warranty conditions are specified for each product, allowing you to clearly check the duration and terms of the warranty before purchase.
If needed, we can also help you navigate warranty matters and choose the right product.
