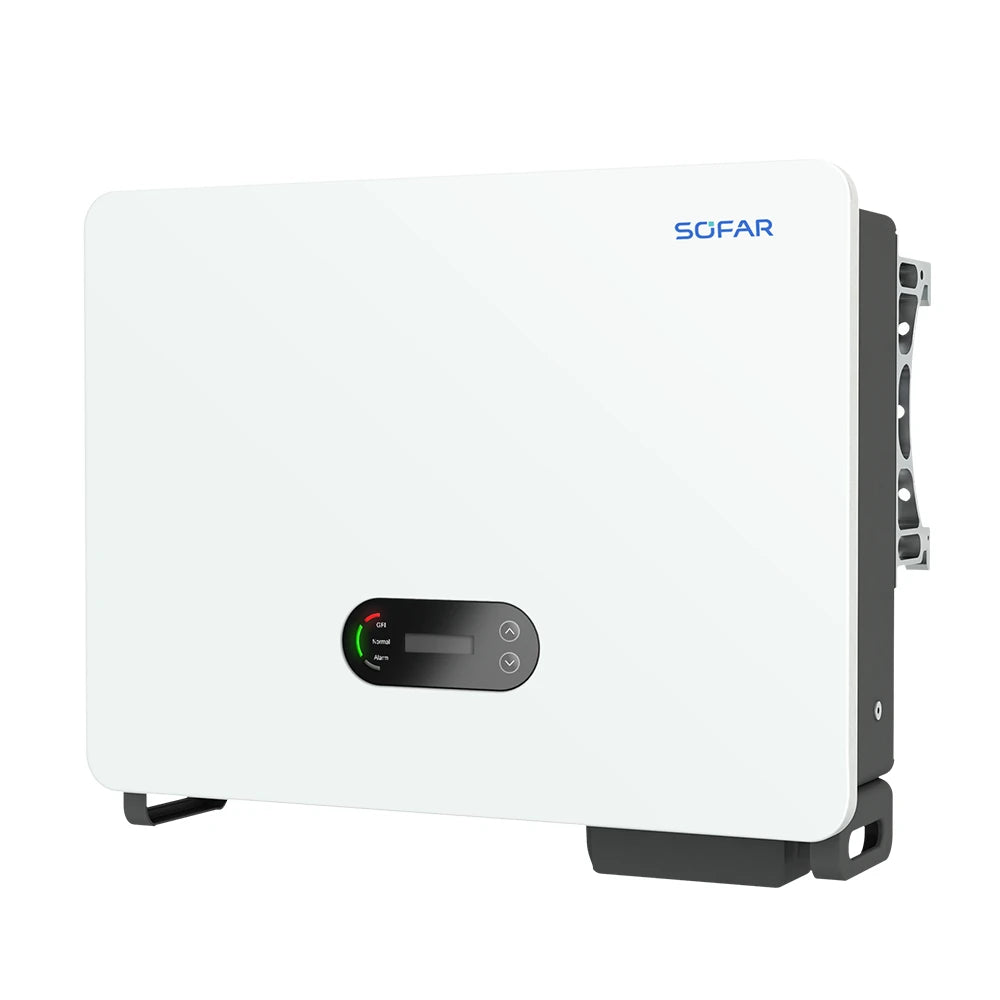

Sofar 80KTLX-G3 ongrid inverter 80kW - 3 fázis

Sofar 80KTLX-G3 on-grid inverter 80kW - 3 phase

Name: Sofar 80KTLX-G3 on-grid inverter 80kW - 3 phase
Brand: Sofar
SKU: SOF-80KTLX-G3
Price: 1619298.00 HUF
Availability: InStock

Vendor: Sofar

Type: Inverter

SKU: SOF-80KTLX-G3

1.619.298 Ft

Tax included.

Warranty: 10 years

Do you want it with installation? (CLICK HERE)

Payment and delivery

Payment
You can pay for your order by bank transfer in advance, in Hungarian Forints or Euros. Cash on delivery is available for orders up to HUF 500,000, with a handling fee of HUF 4,990. For orders over HUF 500,000, only bank transfer in advance is possible. The proforma invoice will be sent to you by e-mail, containing the necessary bank transfer details.

Delivery
We deliver your orders throughout Hungary with the help of our reliable logistics partners or our own transport. Personal pickup is possible by prior arrangement. Shipping costs are determined based on the size, weight, and type of the ordered product:

Small package: HUF 3,790
Large package: HUF 6,490
Heat pump: free shipping
Solar panel and battery: individual shipping fee (based on size, weight, and quantity)

Product description

The SOFAR 80KTLX-G3 is SofarSolar's latest high-power inverter, developed for commercial and industrial (C&I) solar projects. This three-phase inverter features up to 80 kW of power, 6 MPP trackers, and a maximum efficiency of 98.7%, making it an ideal choice for large-scale PV installations. It is compatible with modern 500W+ PV modules and can handle up to 150% DC oversizing.

Key Features

Power and Efficiency:

Maximum Efficiency: Up to 98.7%, ensuring minimal energy loss.
6 MPP Trackers: Independent string management that optimizes energy yield.
DC Oversizing Capability: Up to 150%, providing greater flexibility in PV system design.

Excellent Compatibility:

Support for 500W+ PV Modules: Compatibility with high-power, large-format modules using 210mm cells.
Wide MPPT Operating Range: Low startup voltage and wide input voltage range (180V to 1000V).

Protection Functions:

Type II Surge Protection: For both DC and AC sides, protecting the system from surge damage.
110% Long-term AC Overload Capability: Stable operation even under high loads.

Easy Installation and Monitoring:

WiFi-stick: For easy connection and access to the SOFAR View monitoring portal.
Compact and Lightweight Design: The high-power inverter offers high power density, simplifying installation and reducing operating costs.

Energy Management and Regulation:

4 Digital Input Ports and Energy Meter Input: Easy grid regulation to comply with national standards.
Built-in Grid Relays: Suitable for direct control of external grid protection devices.

Environmental Resistance and Long Lifespan:

IP65 Protection: Full dust protection and protection against water jets, making it suitable for both indoor and outdoor use.
Operating Temperature Range: From -30°C to +60°C, ensuring reliable operation even under extreme conditions.

Installation Dimensions and Weight:

Dimensions: 708 x 610 x 252 mm.
Weight: 60 kg.

Recommendations

The SOFAR 80KTLX-G3 inverter is an ideal choice for:

High-power commercial and industrial PV systems where high efficiency and reliability are crucial.
Installations requiring flexible MPP tracking and modern PV modules.
Those who want a long-term optimized system with easy monitoring and maintenance options.

This inverter combines modern technology with high-performance operation, providing an ideal solution for C&I installations.

Sofar 80KTLX-G3 on-grid inverter 80kW - 3 phase

1.619.298 Ft

Teljesítmény	80 kW
Típus	On-grid inverter
MPPT-k száma	8
Max. hatásfok	98.80%
Garancia	10 years
Max. PV feszültség	1100 V
MPP tartomány	200-1000 V
IP védelem	IP65
Méret	983 x 605 x 310 mm
Tömeg	187.39 lbs

Do you have a question?

See our most frequently asked questions, or contact us.

How do I choose the right inverter?

When selecting an inverter, the most important aspects are the system size, type, and future expandability.

First, the inverter must be matched to the power and voltage range of the solar panels, and it must also be considered whether the system will be connected to a single-phase or three-phase grid. It is also worth thinking ahead about whether you want to add a battery later, as this requires a suitable (hybrid) inverter.

For three-phase systems, a significant difference exists between symmetric and asymmetric operation. A symmetric inverter distributes power evenly among the phases, while an asymmetric inverter can regulate it differently per phase, according to actual consumption.

The latter solution is more efficient in most households, as it better adapts to daily consumption patterns and can reduce the amount of energy drawn from the grid.

When is it worth choosing a hybrid inverter?

It is worth choosing a hybrid inverter if you are thinking about developing the system in the long term.

This type is an ideal solution if you want to build a battery energy storage system in the future, or if it is important for you to have power supply even in the event of a power outage (with a backup function).

Although hybrid inverters initially represent a higher investment, they are more flexible and allow for later expansion of the system without the need for a complete inverter replacement.

Therefore, it is especially recommended for those who want to optimize their energy consumption and increase energy independence in the long term.

What happens in a power outage?

In the event of a power outage, whether there will be electricity depends on the inverter type and the system's design.

Traditional grid-tied (on-grid) inverters automatically shut down in such cases and therefore do not provide power for safety reasons, even if the solar panels are generating.

Hybrid inverters – with an appropriate battery – are capable of off-grid (backup) operation, but this is not always a basic function. For many systems, a separate backup box or EPS (Emergency Power Supply) output/add-on is required for the system to operate during a power outage.

With such a design, the inverter disconnects itself from the grid and continues to supply designated consumers (e.g., lighting, refrigerator, essential devices) with the help of the battery.

Therefore, if continuous power supply is important, it is worth checking during the planning phase whether the given inverter supports the backup function and if an additional unit is needed.

What is the warranty for inverters?

Inverter warranties vary depending on the manufacturer and model.

In most cases, a 5-10 year manufacturer's warranty applies, which can be extended with some manufacturers through registration or a separate extension.

The exact warranty period and conditions are specified for each product, allowing them to be clearly checked before purchase.

If you are unsure about your choice, we can help you find an inverter that provides a reliable long-term solution.

What happens if the inverter fails?

If the inverter malfunctions, the first step is to accurately identify the fault.

In many cases, the problem does not originate from the inverter itself, but can be attributed to a configuration, communication, or system connection error, so it is worth checking this first.

If it is a genuine device fault, repair or replacement will be carried out with the involvement of the manufacturer or an official service partner, either within or outside the warranty period.

If necessary, we can assist with fault investigation and initiating warranty claims to ensure a quick and smooth process.
