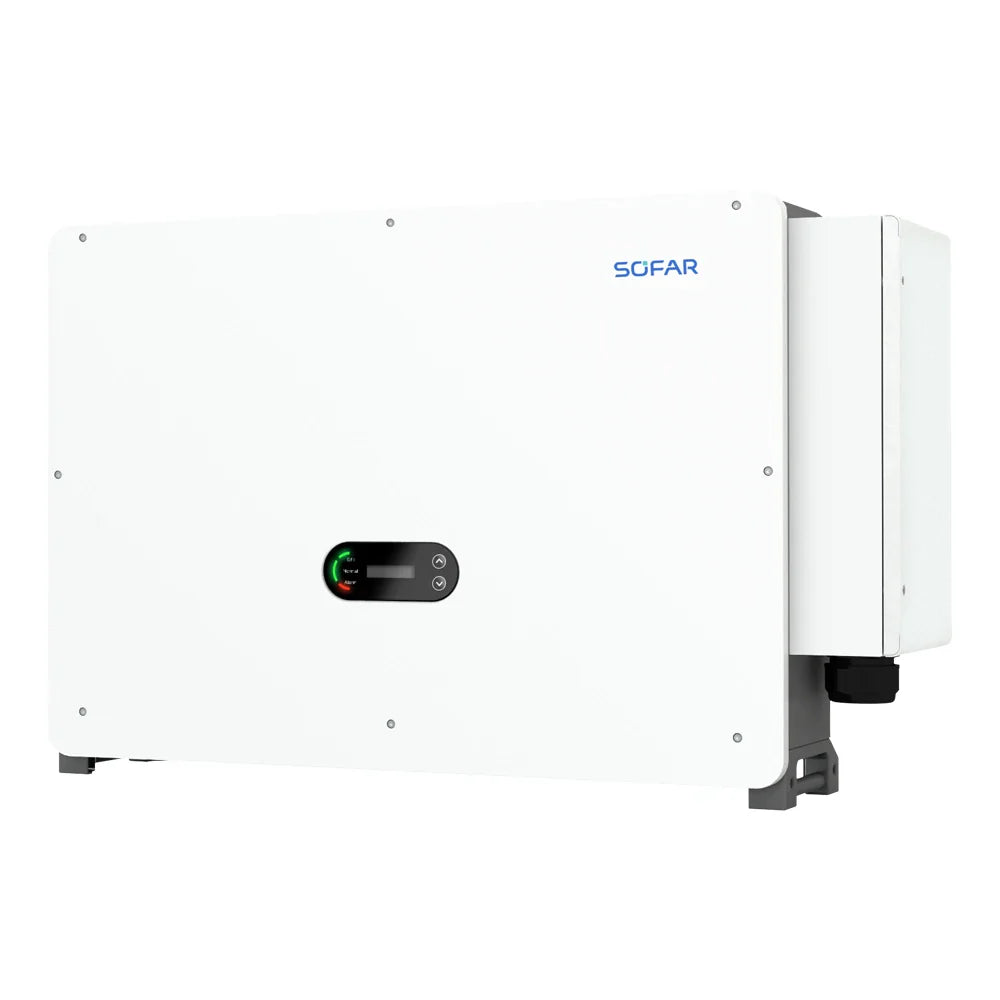

Sofar 255KTL-HV ongrid inverter 255kW - 3 fázis

Sofar 255KTL-HV on-grid inverter 255kW - 3 phase

Name: Sofar 255KTL-HV on-grid inverter 255kW - 3 phase
Brand: Sofar
SKU: SOF-255KTL-HV
Price: 3091910.00 HUF
Availability: InStock

Vendor: Sofar

Type: Inverter

SKU: SOF-255KTL-HV

3.091.910 Ft

Tax included.

Warranty: 10 years

Do you want it with installation? (CLICK HERE)

Payment and delivery

Payment
You can pay for your order by bank transfer in advance, in Hungarian Forints or Euros. Cash on delivery is available for orders up to HUF 500,000, with a handling fee of HUF 4,990. For orders over HUF 500,000, only bank transfer in advance is possible. The proforma invoice will be sent to you by e-mail, containing the necessary bank transfer details.

Delivery
We deliver your orders throughout Hungary with the help of our reliable logistics partners or our own transport. Personal pickup is possible by prior arrangement. Shipping costs are determined based on the size, weight, and type of the ordered product:

Small package: HUF 3,790
Large package: HUF 6,490
Heat pump: free shipping
Solar panel and battery: individual shipping fee (based on size, weight, and quantity)

Product description

The SOFAR 255KTL-HV is SofarSolar's latest high-power inverter, designed for 1500 V utility-scale PV systems. This inverter is an ideal choice for large ground-mounted solar systems, reaching a maximum efficiency of 99.02%, and optimizing energy yield with up to 12 MPPT trackers. The IP66/C5 rated housing makes it perfectly suitable for outdoor use.

Key Features

Performance and Efficiency:

Maximum efficiency: Up to 99.02%, ensuring minimal energy loss.
1500 V maximum DC input voltage, compatible with modern high-power PV modules.
12 MPPT trackers: Ensuring optimal energy yield by monitoring various PV strings.
High DC current handling capability: Up to 1230 A input current and 1250 A short-circuit current.

Protection Functions:

Built-in Anti-PID and PID recovery: Minimizes potential induced degradation losses while increasing system lifespan.
Type II SPD surge protection: Protects the system from both DC and AC sides.
Comprehensive protection: PV reverse polarity, ground fault monitoring, leakage current protection, string fault detection.

Flexible Connectivity:

Compatibility with Al and Cu AC cables: Flexible installation options for various cable materials.
800 V AC output voltage: Ideal for utility-scale installations.

Environmental Resistance:

IP66 protection: Full dust and water resistance, optimized for outdoor use.
C5 corrosion protection: Suitable for use in extreme environmental conditions.
Operating temperature range: -30°C to +60°C.
Maximum operating altitude: 5000 m (with derating above 4000 m).

Easy Installation and Use:

I-V curve scanning function: Quick identification of installation and maintenance issues.
Compact design: Dimensions: 1100.5 x 713.5 x 368 mm, weight: 99 kg.

Cooling: Intelligent forced air cooling system.

Communication and Monitoring:

24-hour status monitoring: Dual AC/DC power supply with redundancy.
Communication protocols: RS485 and PLC support.

Recommendations

The SOFAR 255KTL-HV is an ideal choice for:

Large ground-mounted solar systems requiring utility-scale power.
Installations where maximum energy yield and long lifespan are critical.
Those seeking a high-power inverter that is quick to install and maintain.

This inverter series offers state-of-the-art technology, excellent efficiency, and reliability, making it an ideal choice for large-scale PV projects.

Sofar 255KTL-HV on-grid inverter 255kW - 3 phase

3.091.910 Ft

Teljesítmény	255 kW
Típus	On-grid inverter
MPPT-k száma	12
Max. hatásfok	99.02%
Garancia	10 years
Max. PV feszültség	1500 V
MPP tartomány	500-1500 V
IP védelem	IP65
Méret	1100.5 × 713.5 × 368 mm
Tömeg	99 kg

Do you have a question?

See our most frequently asked questions, or contact us.

How do I choose the right inverter?

When selecting an inverter, the most important aspects are the system size, type, and future expandability.

First, the inverter must be matched to the power and voltage range of the solar panels, and it must also be considered whether the system will be connected to a single-phase or three-phase grid. It is also worth thinking ahead about whether you want to add a battery later, as this requires a suitable (hybrid) inverter.

For three-phase systems, a significant difference exists between symmetric and asymmetric operation. A symmetric inverter distributes power evenly among the phases, while an asymmetric inverter can regulate it differently per phase, according to actual consumption.

The latter solution is more efficient in most households, as it better adapts to daily consumption patterns and can reduce the amount of energy drawn from the grid.

When is it worth choosing a hybrid inverter?

It is worth choosing a hybrid inverter if you are thinking about developing the system in the long term.

This type is an ideal solution if you want to build a battery energy storage system in the future, or if it is important for you to have power supply even in the event of a power outage (with a backup function).

Although hybrid inverters initially represent a higher investment, they are more flexible and allow for later expansion of the system without the need for a complete inverter replacement.

Therefore, it is especially recommended for those who want to optimize their energy consumption and increase energy independence in the long term.

What happens in a power outage?

In the event of a power outage, whether there will be electricity depends on the inverter type and the system's design.

Traditional grid-tied (on-grid) inverters automatically shut down in such cases and therefore do not provide power for safety reasons, even if the solar panels are generating.

Hybrid inverters – with an appropriate battery – are capable of off-grid (backup) operation, but this is not always a basic function. For many systems, a separate backup box or EPS (Emergency Power Supply) output/add-on is required for the system to operate during a power outage.

With such a design, the inverter disconnects itself from the grid and continues to supply designated consumers (e.g., lighting, refrigerator, essential devices) with the help of the battery.

Therefore, if continuous power supply is important, it is worth checking during the planning phase whether the given inverter supports the backup function and if an additional unit is needed.

What is the warranty for inverters?

Inverter warranties vary depending on the manufacturer and model.

In most cases, a 5-10 year manufacturer's warranty applies, which can be extended with some manufacturers through registration or a separate extension.

The exact warranty period and conditions are specified for each product, allowing them to be clearly checked before purchase.

If you are unsure about your choice, we can help you find an inverter that provides a reliable long-term solution.

What happens if the inverter fails?

If the inverter malfunctions, the first step is to accurately identify the fault.

In many cases, the problem does not originate from the inverter itself, but can be attributed to a configuration, communication, or system connection error, so it is worth checking this first.

If it is a genuine device fault, repair or replacement will be carried out with the involvement of the manufacturer or an official service partner, either within or outside the warranty period.

If necessary, we can assist with fault investigation and initiating warranty claims to ensure a quick and smooth process.
