Huawei SUN2000-330KTL-H1 on-grid inverter 330kW - 3 phase
Payment and delivery
Payment and delivery
Payment
You can pay for your order by bank transfer in advance, in Hungarian Forints or Euros. Cash on delivery is available for orders up to HUF 500,000, with a handling fee of HUF 4,990. For orders over HUF 500,000, only bank transfer in advance is possible. The proforma invoice will be sent to you by e-mail, containing the necessary bank transfer details.
Delivery
We deliver your orders throughout Hungary with the help of our reliable logistics partners or our own transport. Personal pickup is possible by prior arrangement. Shipping costs are determined based on the size, weight, and type of the ordered product:
- Small package: HUF 3,790
- Large package: HUF 6,490
- Heat pump: free shipping
- Solar panel and battery: individual shipping fee (based on size, weight, and quantity)
Product description
Product description

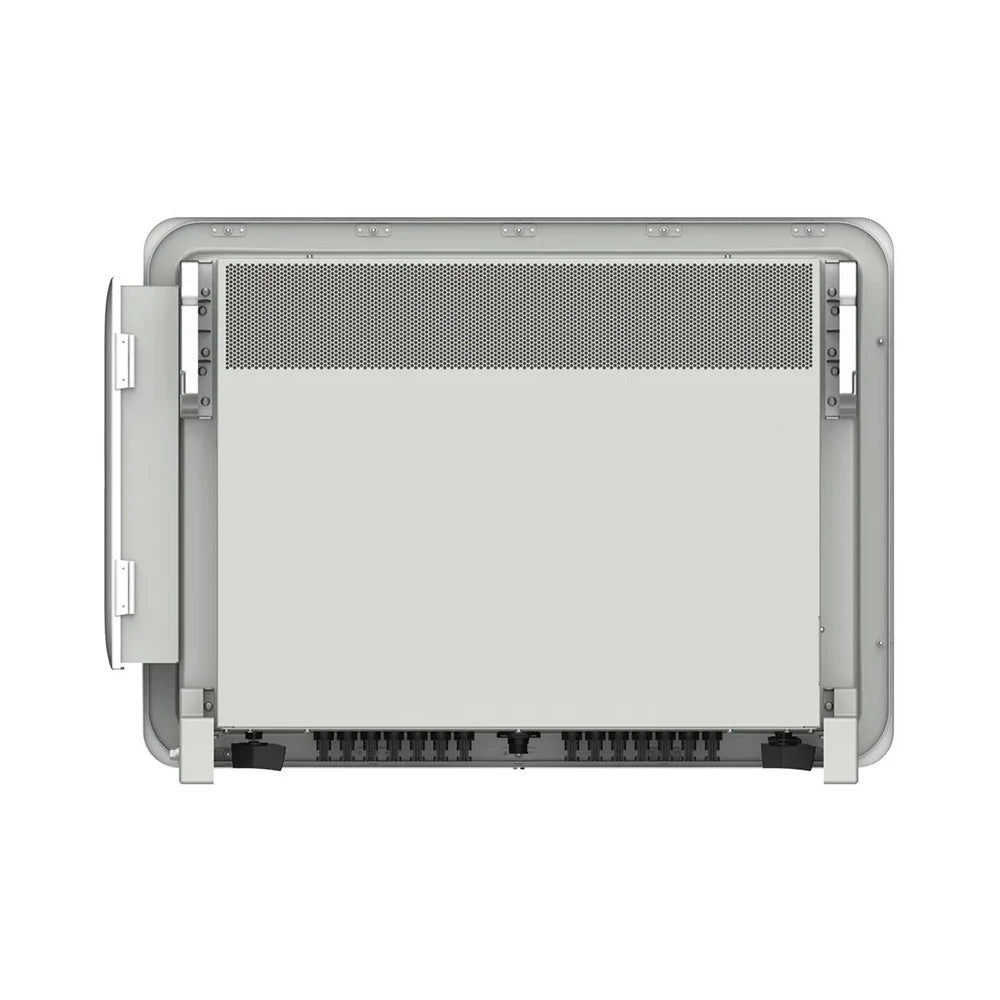

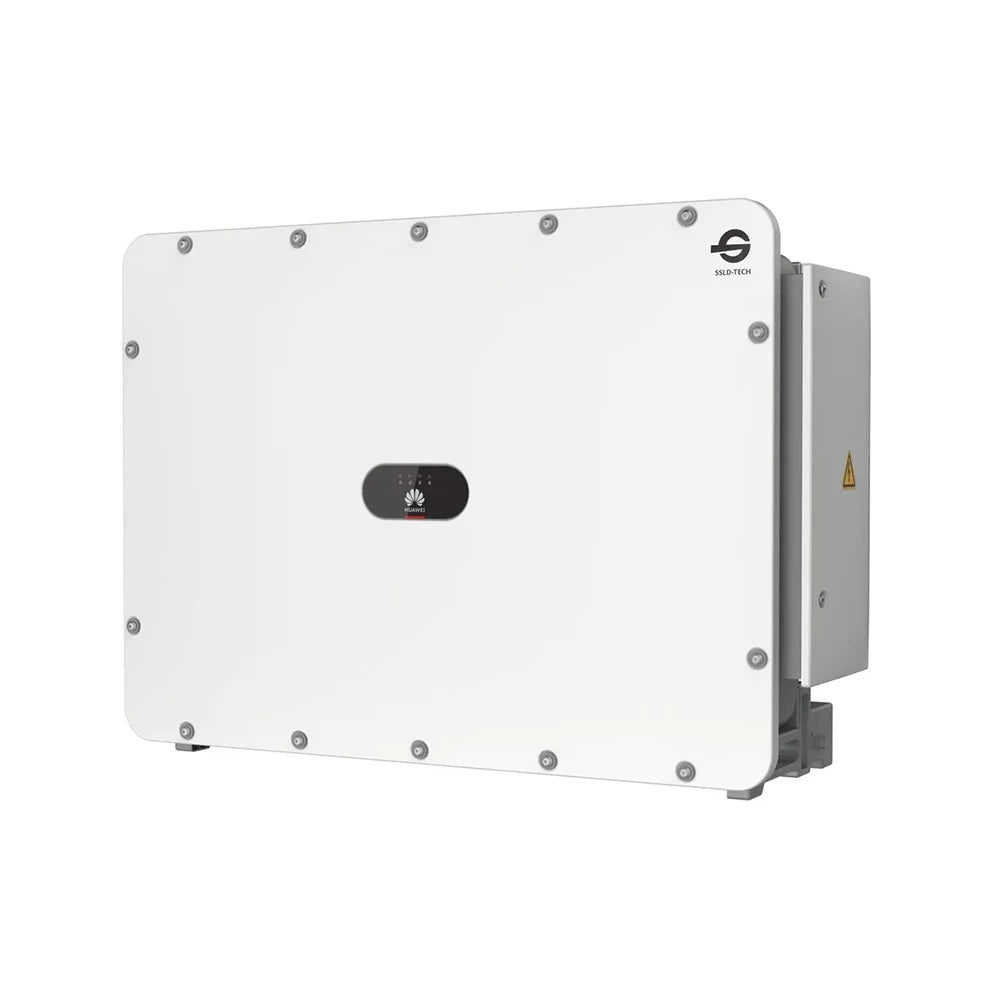

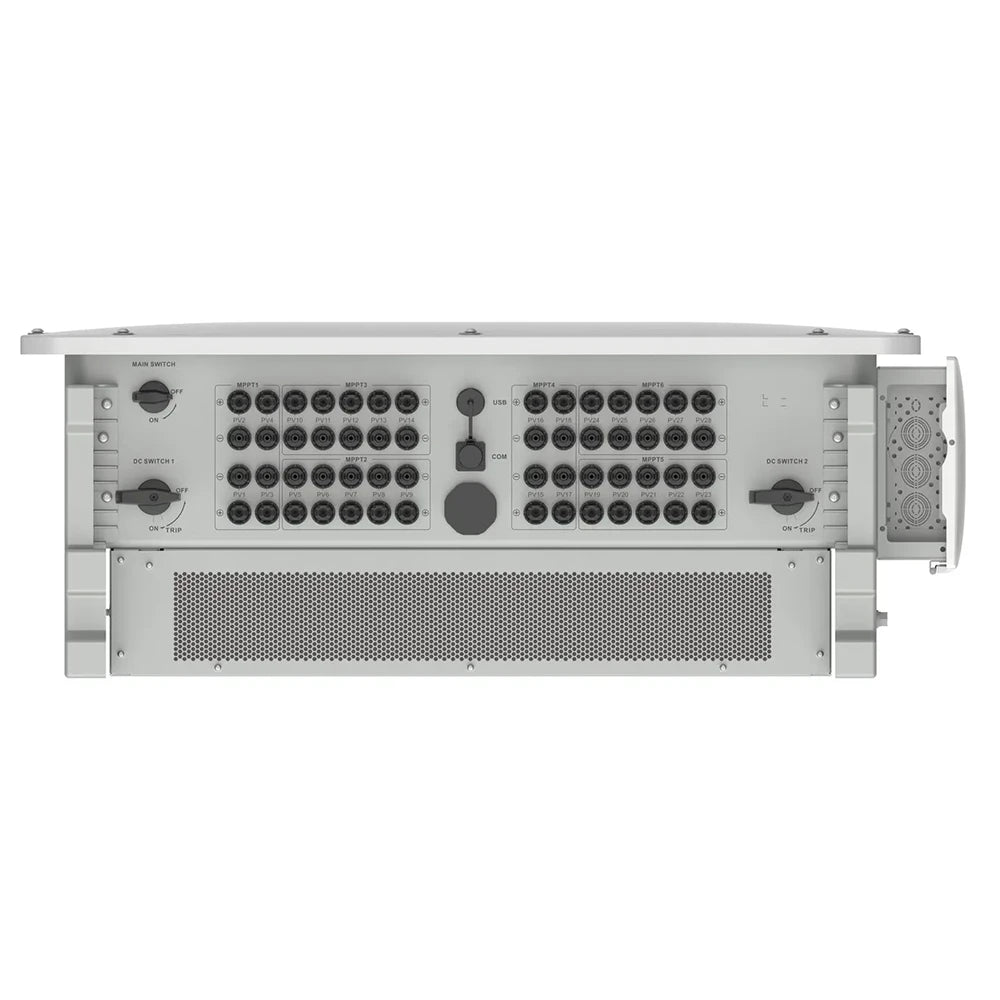

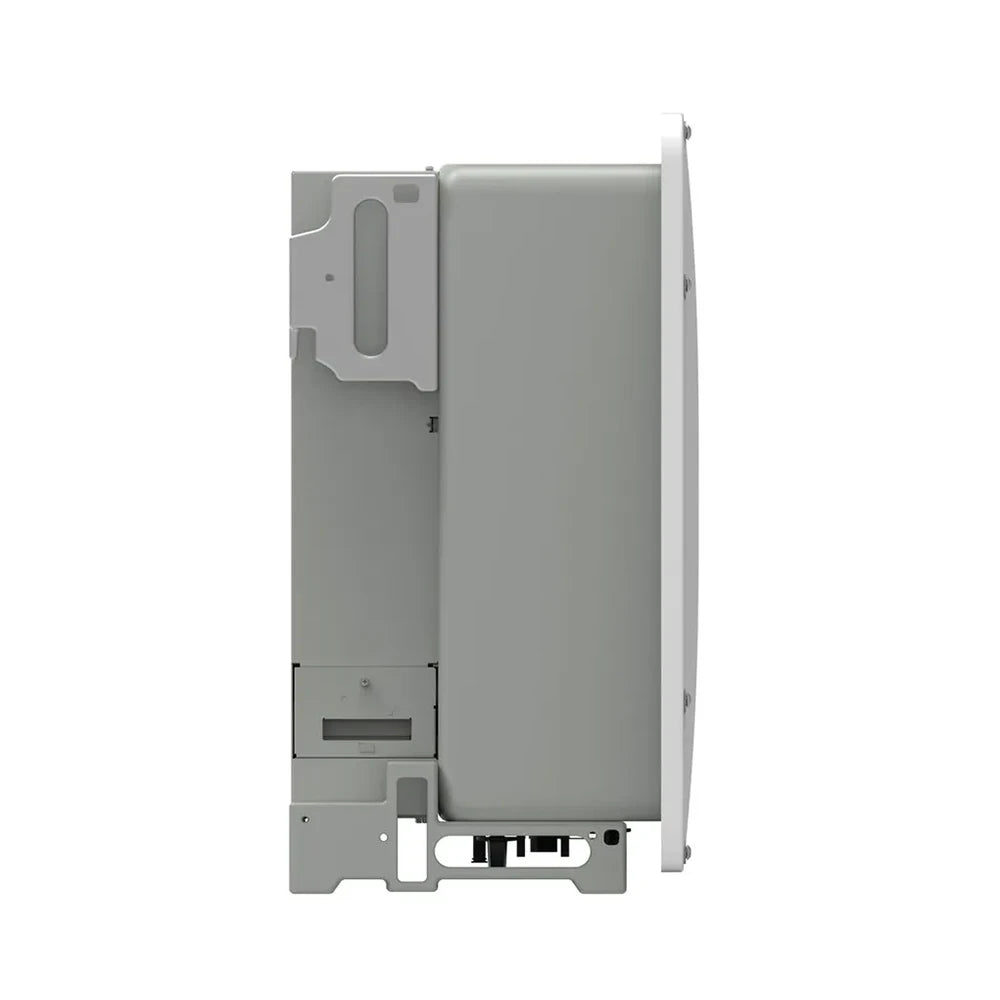

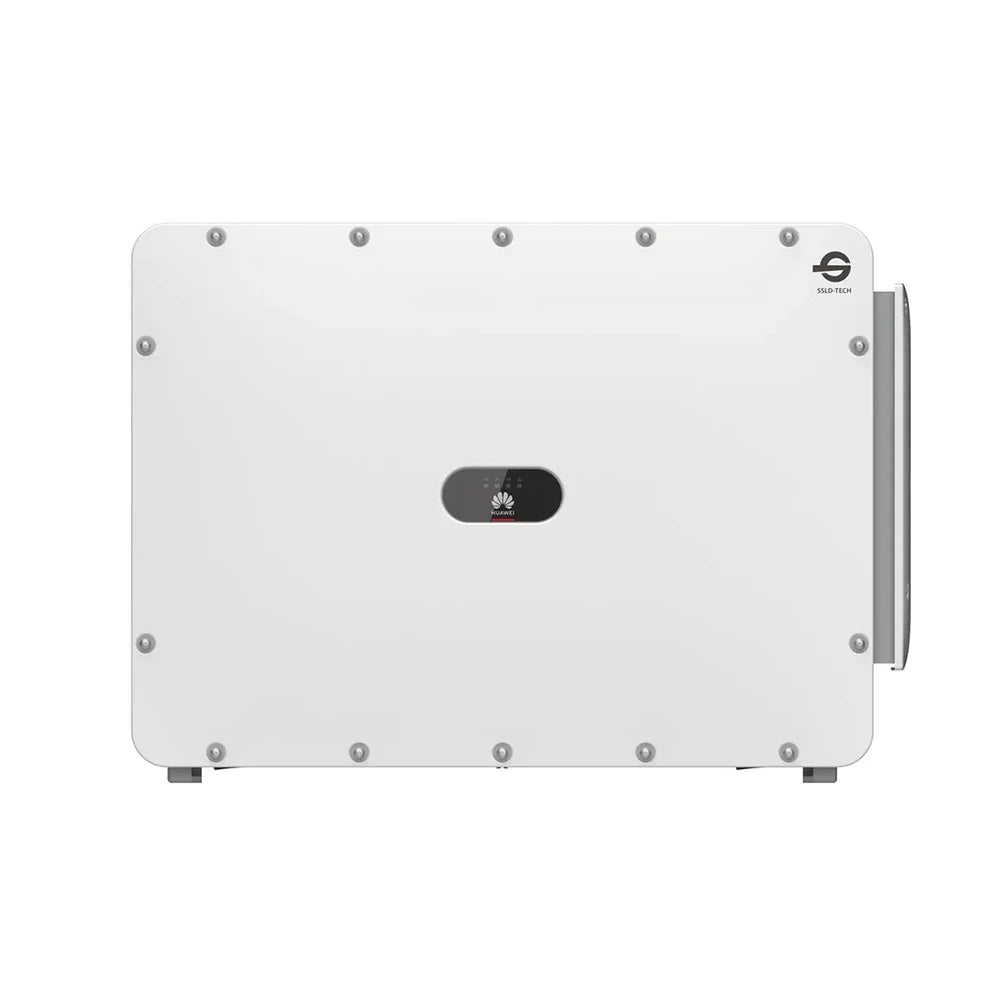

The Huawei SUN2000-330KTL-H1 is one of the highest-power string inverters in the manufacturer's portfolio, specifically designed for industrial and large-scale solar power plants. The device provides 330 kW of rated AC power, making it an ideal choice for multi-megawatt projects where reliability and efficiency are paramount.
The inverter boasts outstanding efficiency, operating with a maximum efficiency exceeding 99% and a European efficiency of 98.8%, placing it at the forefront of its category. Its six fully independent MPPT trackers allow for versatile string configurations and efficient operation of systems with uneven orientation or shading.
A wide range of safety features ensures reliable operation: Smart String-Level Disconnector (SSLD) for intelligent string disconnection, AFCI arc fault protection, and Type II surge protection on both AC and DC sides. Additionally, residual current monitoring, ground fault protection, and PV string fault monitoring are built-in.
The Huawei SUN2000-330KTL-H1 is built with a robust industrial design, featuring IP66 protection, smart air cooling, and derating-free operation up to an ambient temperature of 60 °C. It can be installed up to 4,000 m without power reduction, providing long-term reliability even in extreme environments.
Communication options include WLAN, RS485, MBUS, and USB, allowing easy integration of the device into the Huawei FusionSolar management system.
Key features at a glance:
- Rated power: 330 kW (AC)
- Six MPPT trackers for flexible string configuration
- Max. efficiency: ≥99%, European efficiency: 98.8%
- Built-in SSLD, AFCI, and Type II AC/DC surge protection
- PV string fault monitoring and residual current monitoring
- Smart Air Cooling, outdoor design (IP66)
- Communication: WLAN, RS485, MBUS, USB
- Installable up to 4,000 m altitude, without derating
The Huawei SUN2000-330KTL-H1 is an ideal choice for large-scale industrial projects and power plant systems where high power, excellent efficiency, and advanced safety features are all essential.
| Teljesítmény | 300 kW |
|---|---|
| Típus | On-grid inverter |
| MPPT-k száma | 6 |
| Max. hatásfok | ≥99.0% |
| Garancia | 5 years |
| Max. PV feszültség | 1500 V |
| MPP tartomány | 500-1500 V |
| EPS / Backup kimenet | No |
| IP védelem | IP66 |
| Méret | 1048 x 732 x 395 mm |
| Tömeg | 112 kg |
Do you have a question?
See our most frequently asked questions, or contact us.
How do I choose the right inverter?
How do I choose the right inverter?
When selecting an inverter, the most important aspects are the system size, type, and future expandability.
First, the inverter must be matched to the power and voltage range of the solar panels, and it must also be considered whether the system will be connected to a single-phase or three-phase grid. It is also worth thinking ahead about whether you want to add a battery later, as this requires a suitable (hybrid) inverter.
For three-phase systems, a significant difference exists between symmetric and asymmetric operation. A symmetric inverter distributes power evenly among the phases, while an asymmetric inverter can regulate it differently per phase, according to actual consumption.
The latter solution is more efficient in most households, as it better adapts to daily consumption patterns and can reduce the amount of energy drawn from the grid.
When is it worth choosing a hybrid inverter?
When is it worth choosing a hybrid inverter?
It is worth choosing a hybrid inverter if you are thinking about developing the system in the long term.
This type is an ideal solution if you want to build a battery energy storage system in the future, or if it is important for you to have power supply even in the event of a power outage (with a backup function).
Although hybrid inverters initially represent a higher investment, they are more flexible and allow for later expansion of the system without the need for a complete inverter replacement.
Therefore, it is especially recommended for those who want to optimize their energy consumption and increase energy independence in the long term.
What happens in a power outage?
What happens in a power outage?
In the event of a power outage, whether there will be electricity depends on the inverter type and the system's design.
Traditional grid-tied (on-grid) inverters automatically shut down in such cases and therefore do not provide power for safety reasons, even if the solar panels are generating.
Hybrid inverters – with an appropriate battery – are capable of off-grid (backup) operation, but this is not always a basic function. For many systems, a separate backup box or EPS (Emergency Power Supply) output/add-on is required for the system to operate during a power outage.
With such a design, the inverter disconnects itself from the grid and continues to supply designated consumers (e.g., lighting, refrigerator, essential devices) with the help of the battery.
Therefore, if continuous power supply is important, it is worth checking during the planning phase whether the given inverter supports the backup function and if an additional unit is needed.
What is the warranty for inverters?
What is the warranty for inverters?
Inverter warranties vary depending on the manufacturer and model.
In most cases, a 5-10 year manufacturer's warranty applies, which can be extended with some manufacturers through registration or a separate extension.
The exact warranty period and conditions are specified for each product, allowing them to be clearly checked before purchase.
If you are unsure about your choice, we can help you find an inverter that provides a reliable long-term solution.
What happens if the inverter fails?
What happens if the inverter fails?
If the inverter malfunctions, the first step is to accurately identify the fault.
In many cases, the problem does not originate from the inverter itself, but can be attributed to a configuration, communication, or system connection error, so it is worth checking this first.
If it is a genuine device fault, repair or replacement will be carried out with the involvement of the manufacturer or an official service partner, either within or outside the warranty period.
If necessary, we can assist with fault investigation and initiating warranty claims to ensure a quick and smooth process.
