Huawei SUN2000-15K-MB0 hibrid inverter 15kW - 3 fázis

Huawei SUN2000-15K-MB0 hybrid inverter 15kW - 3 phase

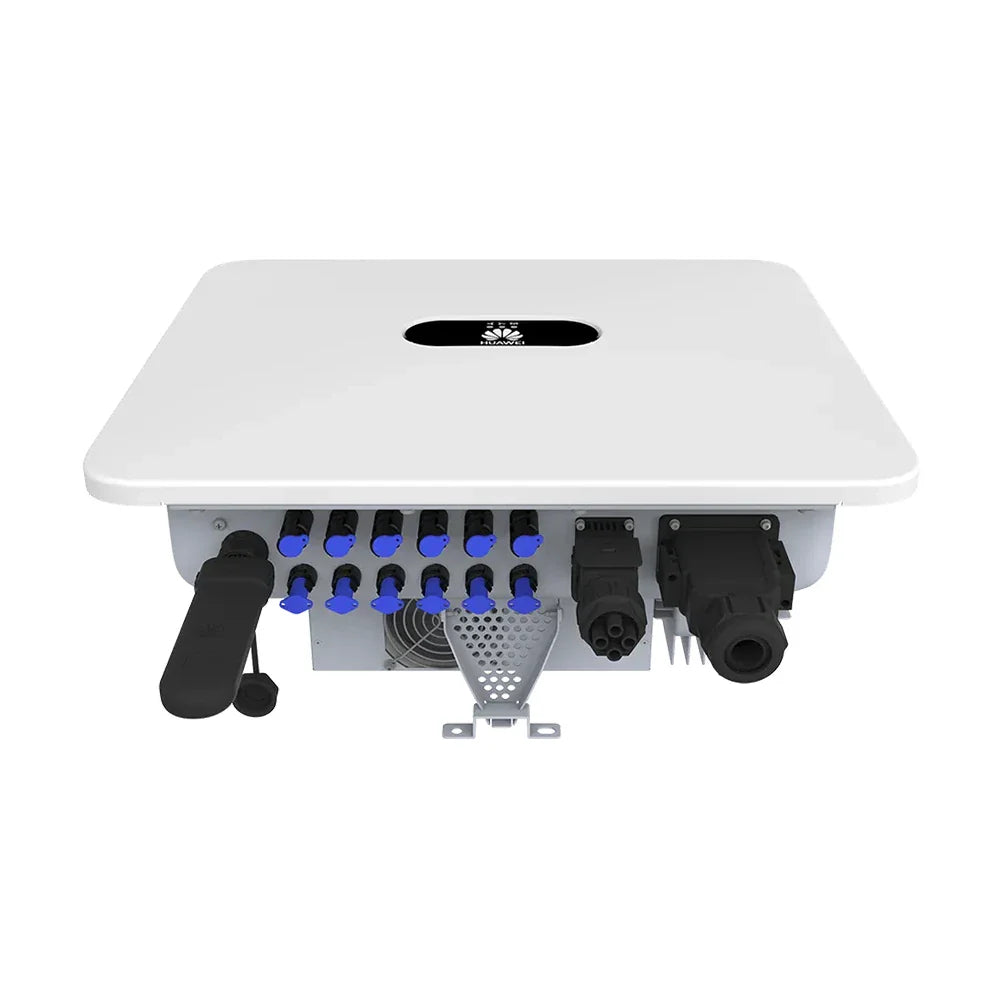

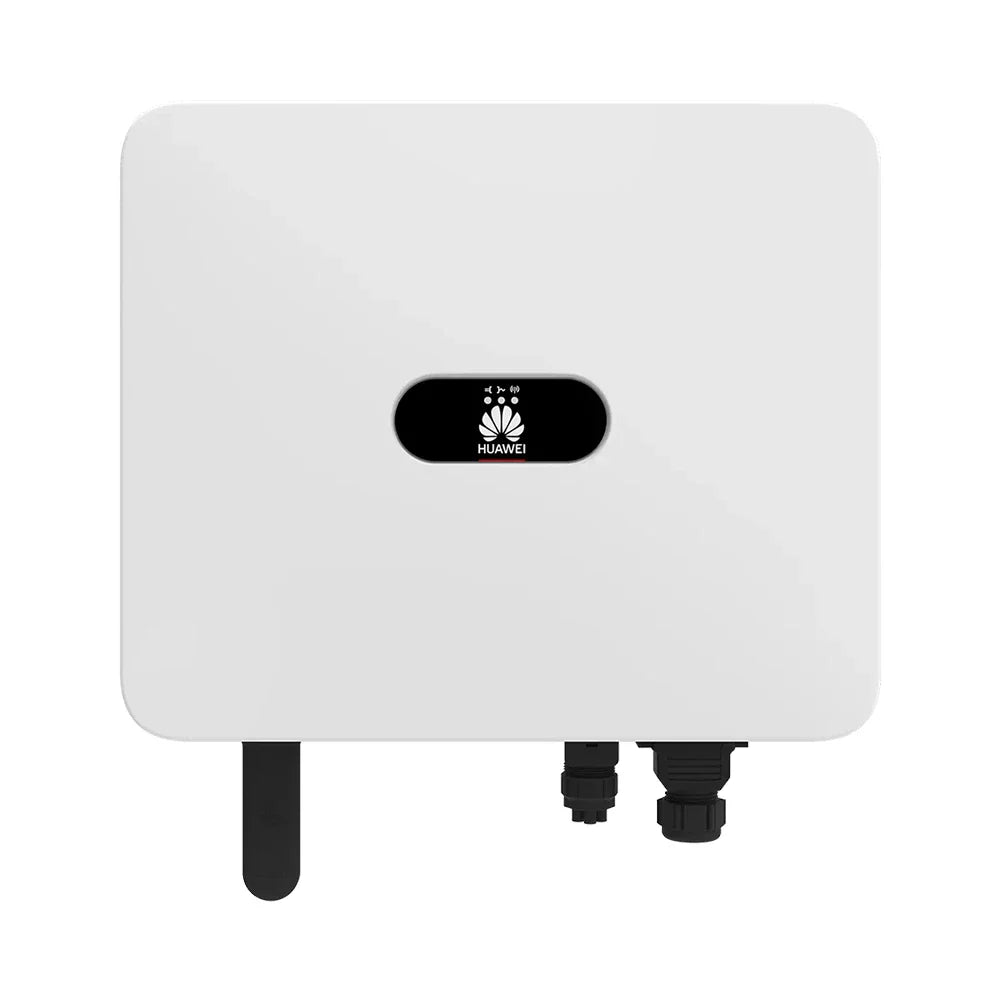

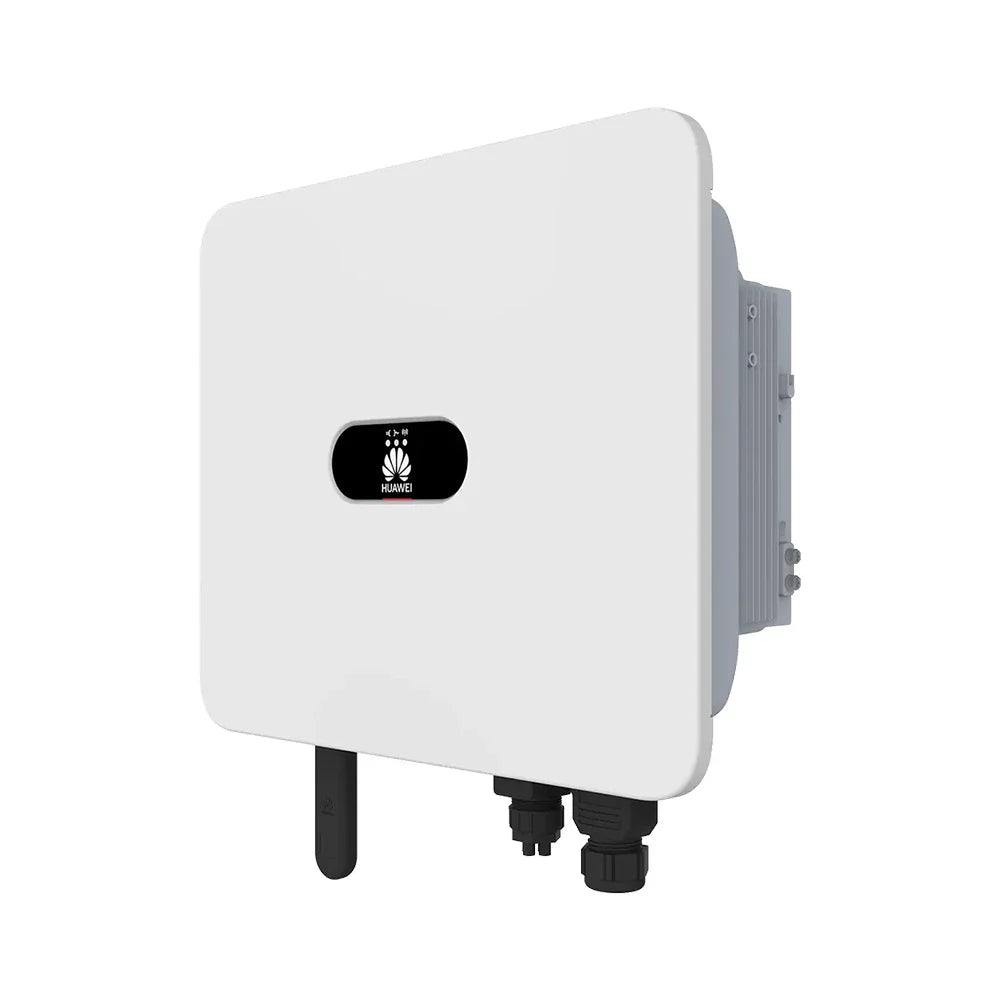

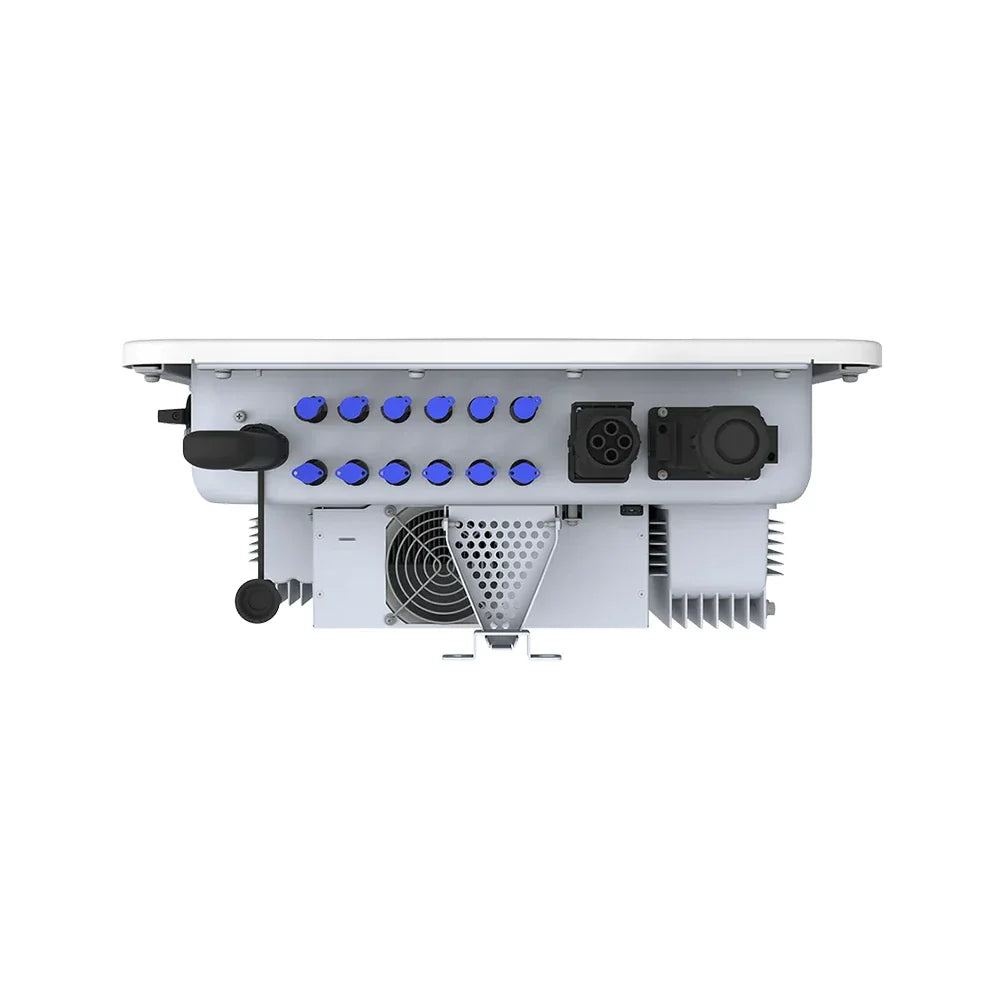

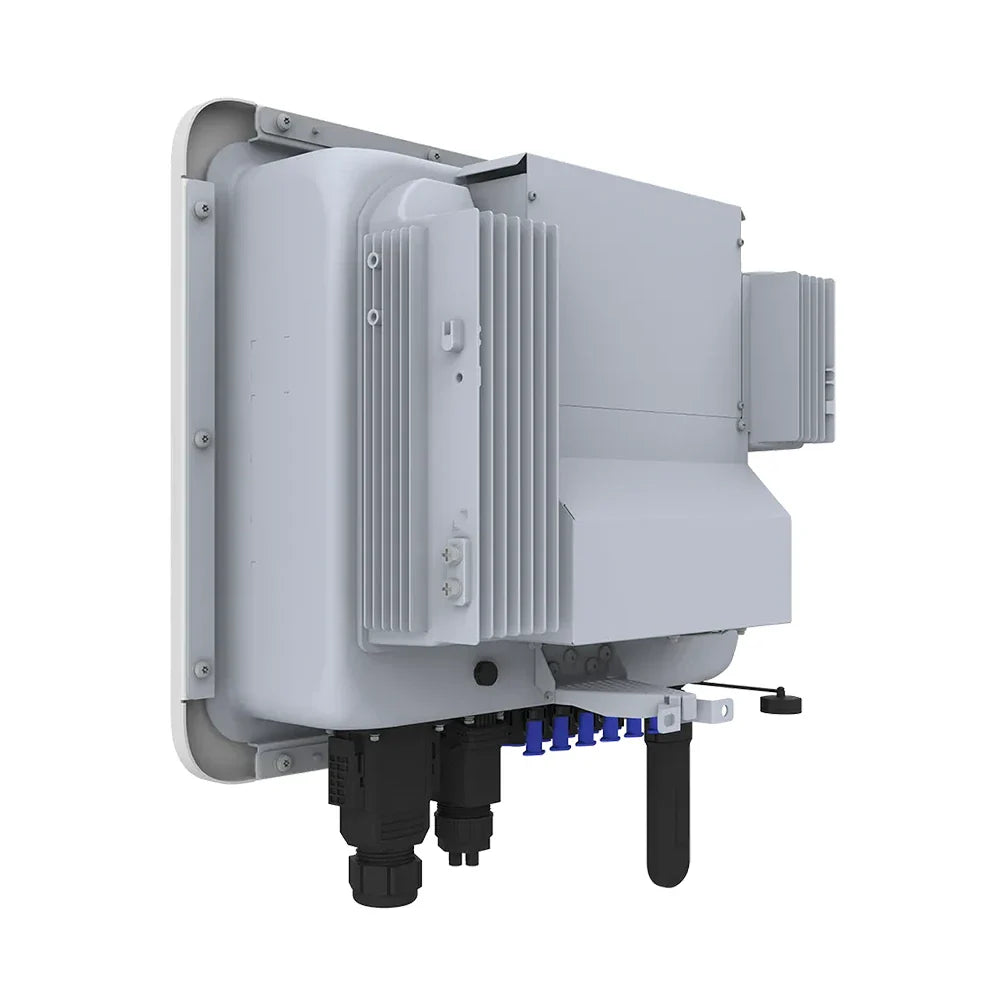

Name: Huawei SUN2000-15K-MB0 hybrid inverter 15kW - 3 phase
Brand: Huawei
SKU: HUA-SUN2000-15K-MB0
Price: 968220.00 HUF
Availability: InStock

Vendor: Huawei

Type: Inverter

SKU: HUA-SUN2000-15K-MB0

968.220 Ft

Tax included.

Low stock

Warranty:

Szeretné telepítéssel együtt? (KATTINTSON IDE)

Payment and delivery

Payment
You can pay for your order by bank transfer, in HUF or EUR. We will send you a payment request by email, which includes the necessary data for the transfer. If you would like a unique payment method (for example, cash or cash on delivery), select the “Unique payment plan” option and our colleagues will contact you to discuss the details.

Transport
The shipping fee depends on the size and type of the ordered product. For smaller packages, the home delivery fee is 3,790 HUF, for larger products it is 6,490 HUF. For solar panels, batteries and other large products, the delivery is based on an individual price quote, which our staff will always discuss with you after placing the order.

Product description

The Huawei SUN2000-MB0 series is the manufacturer's three-phase hybrid inverter family designed for medium to high-power residential or commercial solar power systems. The series consists of five models:

SUN2000-12K-MB0 – 12kW
SUN2000-15K-MB0 – 15kW
SUN2000-17K-MB0 – 17kW
SUN2000-20K-MB0 – 20kW
SUN2000-25K-MB0 – 25kW

The devices can also operate independently, but are fully compatible with Huawei optimizers (SUN2000-450W-P2, SUN2000-600W-P, MERC-1100W-P, MERC-1300W-P). The use of optimizers is not mandatory, but they allow each panel to operate independently, thus maximizing energy production even in the event of shade or different orientations - by up to 30%.

The inverters fully support Huawei LUNA2000-S0 and LUNA2000-S1 batteries (600-980V), with two battery connection options. This provides flexibility for system expansion and ensures uninterrupted operation in the event of a power outage.

Safety features include Rapid Shutdown (RSD), which provides rapid de-energizing in an emergency, AFCI arc fault protection, and Type II surge protection on the DC and AC sides. Residual current monitoring and PV string fault monitoring are also available.

The inverters have a maximum efficiency of 98.4%, with a European efficiency of 97.9–98.2%. They support 200% PV oversizing and 110% AC overload, allowing flexible system design. Cooling is provided by Smart Air Cooling technology, and the devices have IP66 protection, making them suitable for outdoor installation.

On the communication side, WLAN/Ethernet (optional Smart Dongle), RS485 and 4G modem support are available. Monitoring is done via the FusionSolar app.

Main features in brief:

Power range: 12–25 kW, three-phase hybrid inverters
They work without an optimizer, but are fully compatible with Huawei optimizers
Compatible with LUNA2000 batteries (600–980 V), 2 batteries can be connected
200% PV oversizing, 110% AC overload capacity
Max. efficiency: 98.4%, European efficiency: 97.9–98.2%
Safety features: Rapid Shutdown, AFCI, AC/DC surge protection
IP66 protection, Smart Air Cooling, -25 °C and +60 °C operation
Communication: WLAN/Ethernet, RS485, optional 4G, FusionSolar monitoring

The Huawei SUN2000-MB0 series is an ideal choice for those looking for a flexible, battery-compatible, and safe hybrid inverter in the 12-25 kW power range, with or without an optimizer.

Huawei SUN2000-15K-MB0 hybrid inverter 15kW - 3 phase

968.220 Ft

Teljesítmény	15 kW
Típus	Hybrid inverter
MPPT-k száma	2
Max. hatásfok	98.40%
Garancia	10 év
Max. PV feszültség	1100V
MPP tartomány	200-1000V
Max. backup teljesítmény	16.5 kW
IP védelem	IP66
Méret	546 × 460 × 228mm
Tömeg	21 kg

Do you have a question?

View the most frequently asked questions or contact us.

How do I choose the right inverter?

When choosing an inverter, it is worth considering the power of the solar panels, their voltage range, the number of phases in the system (single- or three-phase), and whether you plan to expand with batteries in the future.

In the case of three-phase systems, a distinction must be made between symmetrical and asymmetrical inverters. The symmetrical type distributes the power equally across all three phases, which is an advantageous solution for simpler networks. The asymmetrical inverter, on the other hand, can regulate the power differently per phase, thus adapting more flexibly to the real consumption pattern of the house - for this reason it is usually the more practical and efficient choice for domestic systems.

When is it worth choosing a hybrid inverter?

It is worth choosing a hybrid inverter if you want to expand the system with battery energy storage in the future or if you want to provide the house with protection against power outages.

Hybrid models are more expensive, but offer a more flexible solution in the long term, as they can be easily integrated into the existing system later.

What happens in the event of a power outage?

During a power outage, traditional grid-fed inverters automatically shut down to prevent power from being fed back into the utility grid for safety reasons.

Hybrid inverters, on the other hand, can operate in stand-alone, so-called backup mode, if a battery is also connected to the system. In this case, the inverter disconnects itself from the grid and uses the energy stored in the battery to continue supplying designated consumers in the house, such as lighting, a refrigerator or a router. As soon as the grid voltage returns, the inverter automatically returns to normal operation and begins recharging the battery.

What warranty does the inverter have?

The warranty is typically 5-10 years, depending on the manufacturer and model. Some manufacturers also offer extended warranties with registration. The exact duration is listed on each product page, so it's worth checking before purchasing.

What happens if the inverter fails?

As a first step, it is always recommended to diagnose the fault, because often the problem is not related to the inverter, but to the settings or the communication module.
If there is an actual failure, the distributor or manufacturer's service partner will assist with the repair or replacement process, within or beyond warranty.
