Product description
Product description

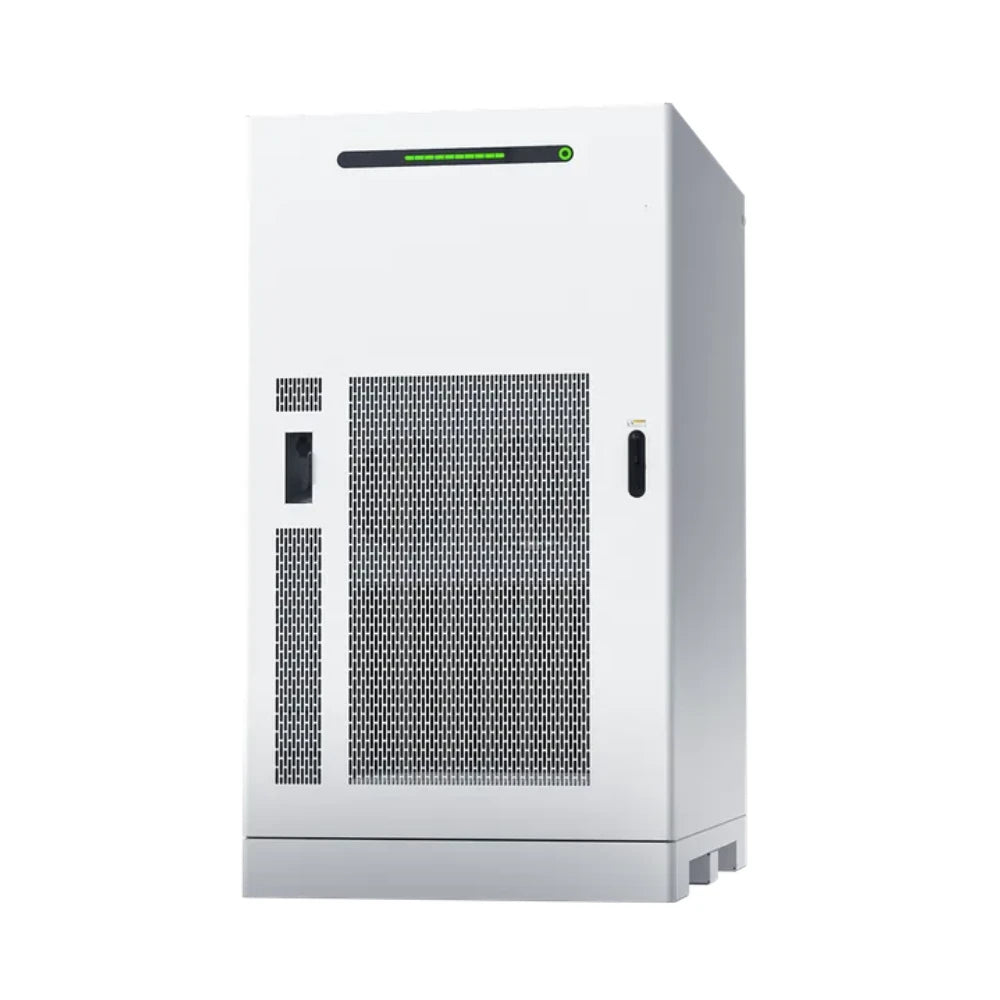

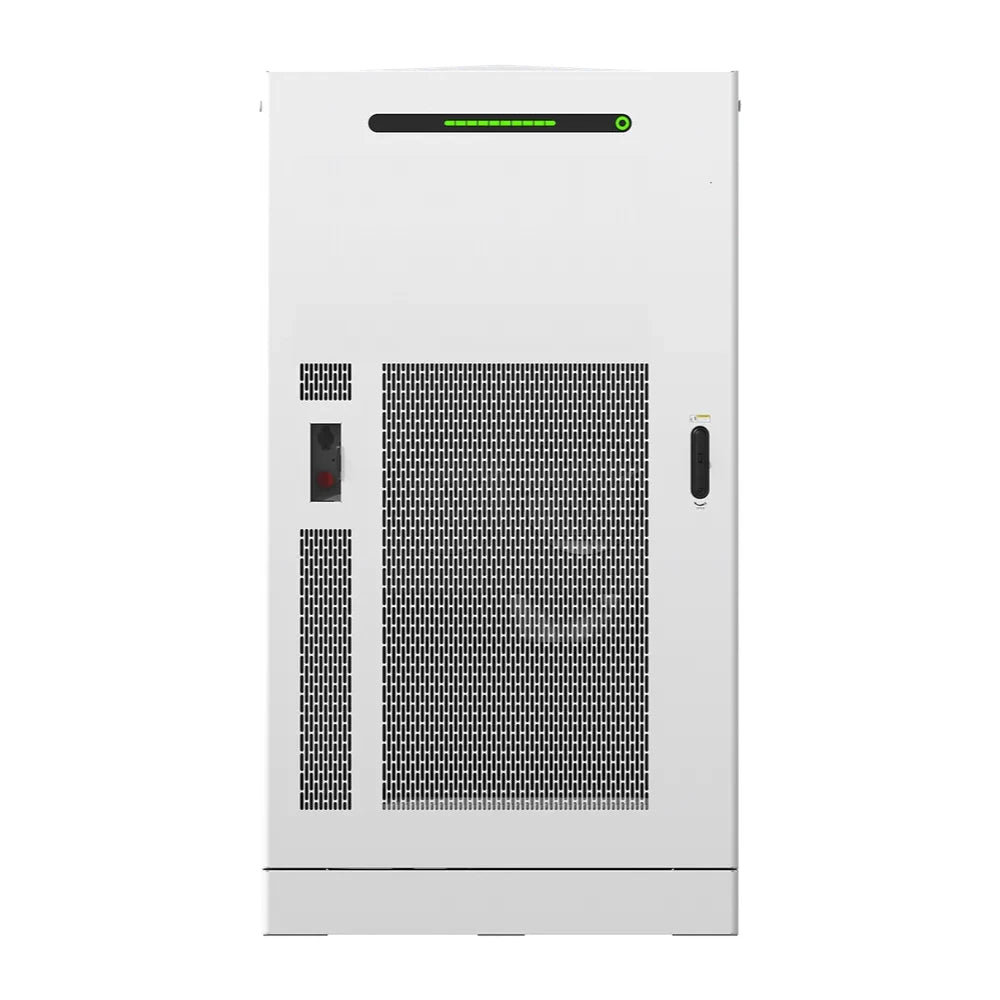

The Huawei LUNA2000-161kWh (2S11) is a high-capacity energy storage system designed for industrial use. It provides 161.3 kWh of usable capacity and 108 kW of output power, enabling it to balance the power supply of a factory, logistics center, or other large consumer, and provide backup in case of power outages.
- Smart String architecture → cell-level active equalization, automatic SOC calibration
- Integrated PCS (108 kW) → no external inverter required

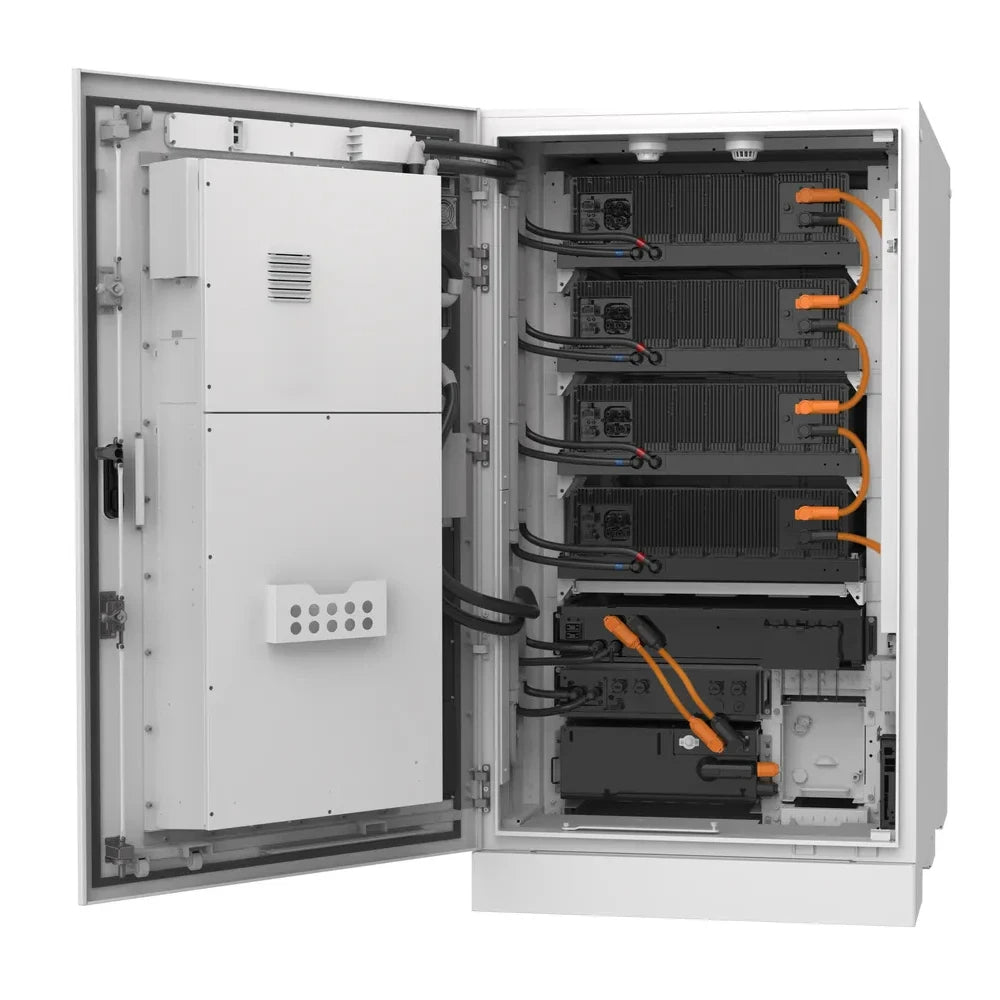

The system consists of 3 battery packs with LFP (lithium iron phosphate) cells, which are thermally stable, cobalt-free, and offer a long lifespan. The operating voltage range is 486–648 V DC, and the nominal current is 187 A.
The hybrid cooling system (active + natural) keeps the cells at a stable temperature at all times, contributing to a longer lifespan and higher efficiency. The system achieves 88% cycle efficiency, and the operating temperature ranges from –30 °C to +55 °C (with derating above 50 °C).
Huawei places a high priority on safety, which is why the LUNA2000-161 ESS is equipped with a multi-level protection system:
- pack-level oxygen barrier,
- controlled gas venting,
- top explosion-proof valve,
- aerosol fire extinguishing module.
These are complemented by AC side protection (insulation monitoring, residual current monitoring, overcurrent and cable connection protection), ensuring that the system complies with the strictest international certifications (UL9540A, IEC 62619, VDE 2510-2/50, etc.).
The ESS communicates via Ethernet and optical cable, using the Modbus TCP protocol. The IP55 protection allows for outdoor installation, and the noise level remains below 65 dB, making it acceptable in industrial environments. Easy commissioning and maintenance are supported by built-in diagnostic functions and remote monitoring capabilities.
The Huawei LUNA2000-161kWh (2S11) is a fully integrated, turnkey industrial energy storage system. Its high performance and advanced safety solutions make it an ideal choice for companies looking for a reliable, long-term sustainable energy storage system for cost reduction, grid balancing, or the protection of critical operations.
| Névleges kapacitás (kWh) | 161.3 kWh |
|---|---|
| Hasznosítható energia | 161.3 kWh (0-100% DoD) |
| Max. töltőáram | 187 A |
| Max. kisütési áram | 187 A |
| Névleges feszültség | 540 V |
| Működési feszültségtartomány | 486-648 A |
| IP védelem | IP55 |
| Működési hőmérséklet | -30 °C to +55 °C |
| Méret | 1150 × 1800 × 2100 mm |
| Tömeg | ≤ 2,400 kg |
| Garancia | 10 years |
Do you have a question?
View frequently asked questions or contact us.
How do I choose the right battery?
How do I choose the right battery?
First, always check if the battery is compatible with your inverter, as not all systems work with all manufacturers. This information is usually found in the inverter's technical data sheet.
Next, you should consider what storage capacity you need (kWh). This depends on how much energy you want to store and which appliances you wish to operate in case of a power outage. If you are considering future expansion, it is advisable to choose a modularly expandable system.
An important distinction is that some systems operate in a closed ecosystem (e.g., only compatible with batteries from their own manufacturer), while other inverters can be connected to products from multiple manufacturers, thus providing greater flexibility.
If you are unsure about your choice, it is worth seeking expert advice – this can help avoid compatibility issues and unnecessary costs.
How do inverter types differ?
How do inverter types differ?
Inverters differ in several aspects, depending on the system and requirements for which they are used.
1. Grid-tied (on-grid) inverter
This is the most common type. It feeds the generated energy directly back into the grid and does not operate during a power outage.
2. Hybrid inverter
It is also capable of managing batteries, so the generated energy can be stored. In the event of a power outage, certain systems can also provide backup power.
3. Off-grid inverter
Completely independent of the grid. Used in places where there is no electrical grid (e.g., holiday homes, farmsteads).
4. By phase: single-phase and three-phase
Single-phase: for smaller systems (family homes, lower consumption)
Three-phase: for larger systems, with balanced load distribution
5. String inverter vs. optimized system
String inverter: several panels connected in series
Optimized system: individual optimizers per panel, better performance in case of shading
What happens in a power outage?
What happens in a power outage?
In the event of a power outage, the system's operation depends on the inverter type.
If the inverter has a backup (off-grid) function, it automatically switches to battery mode during a power outage, allowing selected consumers (e.g., lighting, refrigerator, essential appliances) to continue operating.
If the inverter does not support this function, the system will shut down in the event of a power outage. This means there will be no power supply even if the solar panels are generating electricity, as grid-tied inverters do not operate without grid voltage for safety reasons.
Therefore, if continuous power supply is important, it is advisable to choose an inverter-battery system that supports backup operation.
What is the warranty on the batteries?
What is the warranty on the batteries?
Battery warranties vary by manufacturer and type.
In most cases, a 5–10 year manufacturer's warranty is provided, which for some models may also be tied to a specific number of charging cycles or performance.
The exact warranty conditions are specified for each product, so before purchasing, you can clearly see the duration and conditions under which the warranty is valid.
If you have any questions regarding the warranty, we will help you navigate the details to ensure you choose the system that best suits your needs.
What happens if the battery fails?
What happens if the battery fails?
As a first step, it's worth checking if the problem is indeed with the device itself, as in many cases, the issue lies with settings, communication, or system connection, rather than the battery.
If the fault is verifiably linked to the product, investigation and resolution will be carried out within the framework of warranty administration, involving the manufacturer or distributor.
If needed, we can assist in initiating and guiding this process to ensure troubleshooting is as quick and smooth as possible.
