EnerShare Smart BMS vezérlő egység

Name: EnerShare Smart BMS vezérlő egység
Brand: EnerShare
SKU: ENERSHARE-BMS-CONTROL
Price: 208026.00 HUF
Availability: InStock

Vendor: EnerShare

Type: Akkumulátor

SKU: ENERSHARE-BMS-CONTROL

208.026 Ft

Tax included.

Available in stock

Warranty:

Szeretné telepítéssel együtt? (KATTINTSON IDE)

Payment and delivery

Payment
You can pay for your order by bank transfer, in HUF or EUR. We will send you a payment request via email, which includes the necessary data for the transfer. If you would like a unique payment method (for example, cash or cash on delivery), select the “Unique payment plan” option and our colleagues will contact you to discuss the details.

Transport
The shipping fee depends on the size and type of the ordered product. For smaller packages, the home delivery fee is 3,790 HUF, for larger products it is 6,490 HUF. For solar panels, batteries and other large products, the delivery is based on an individual price quote, which our staff will always discuss with you after placing the order.

Product description

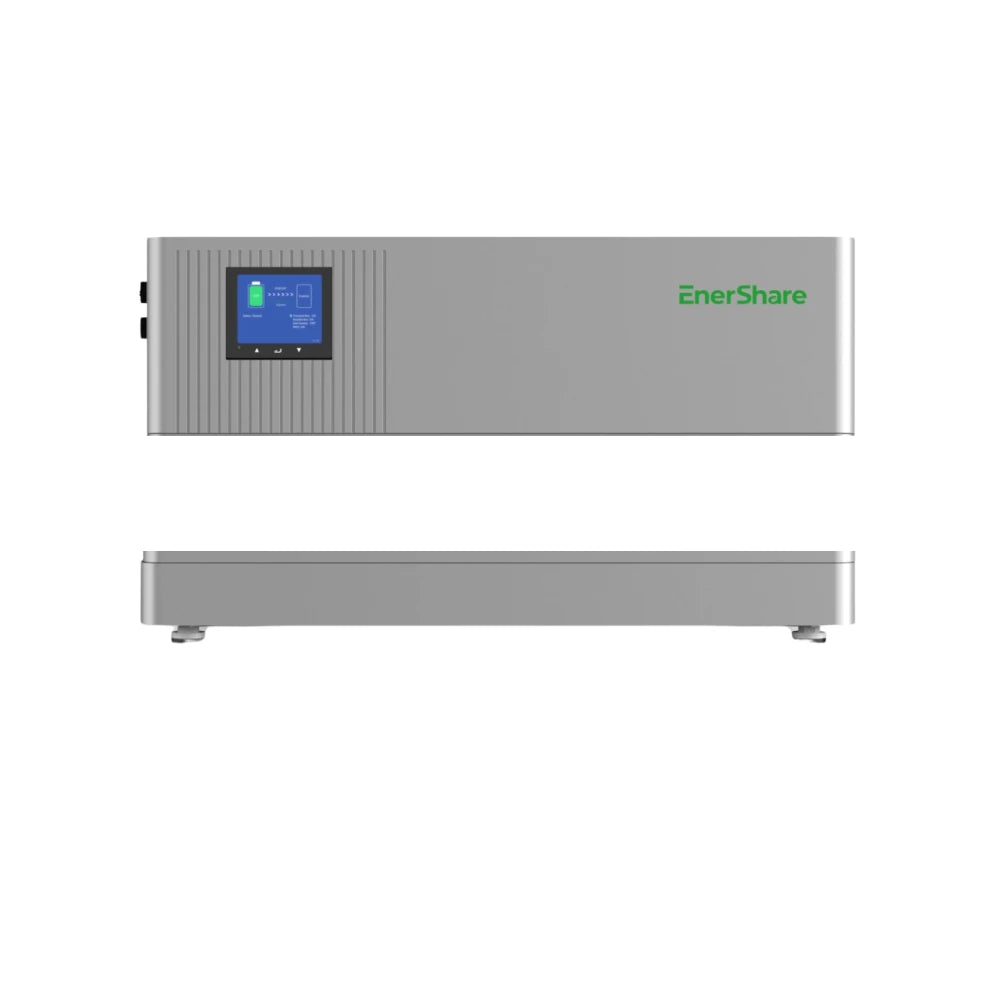

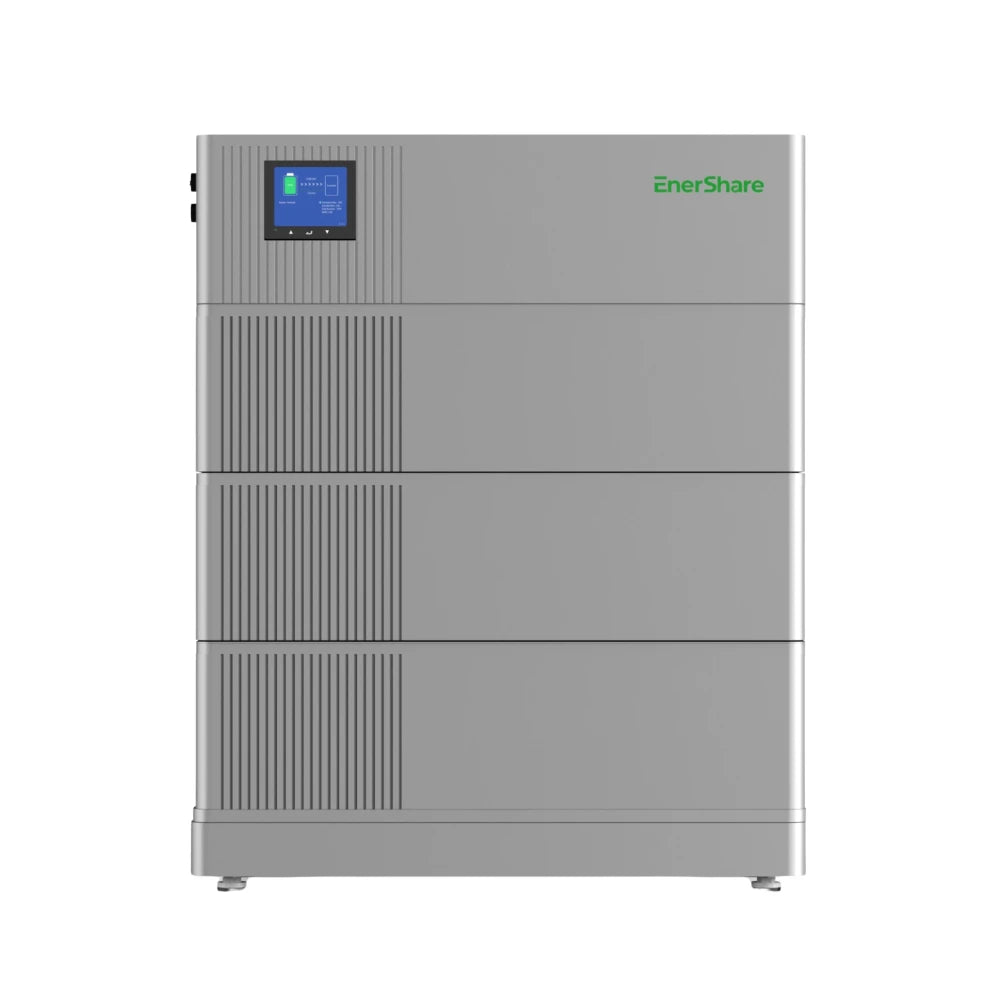

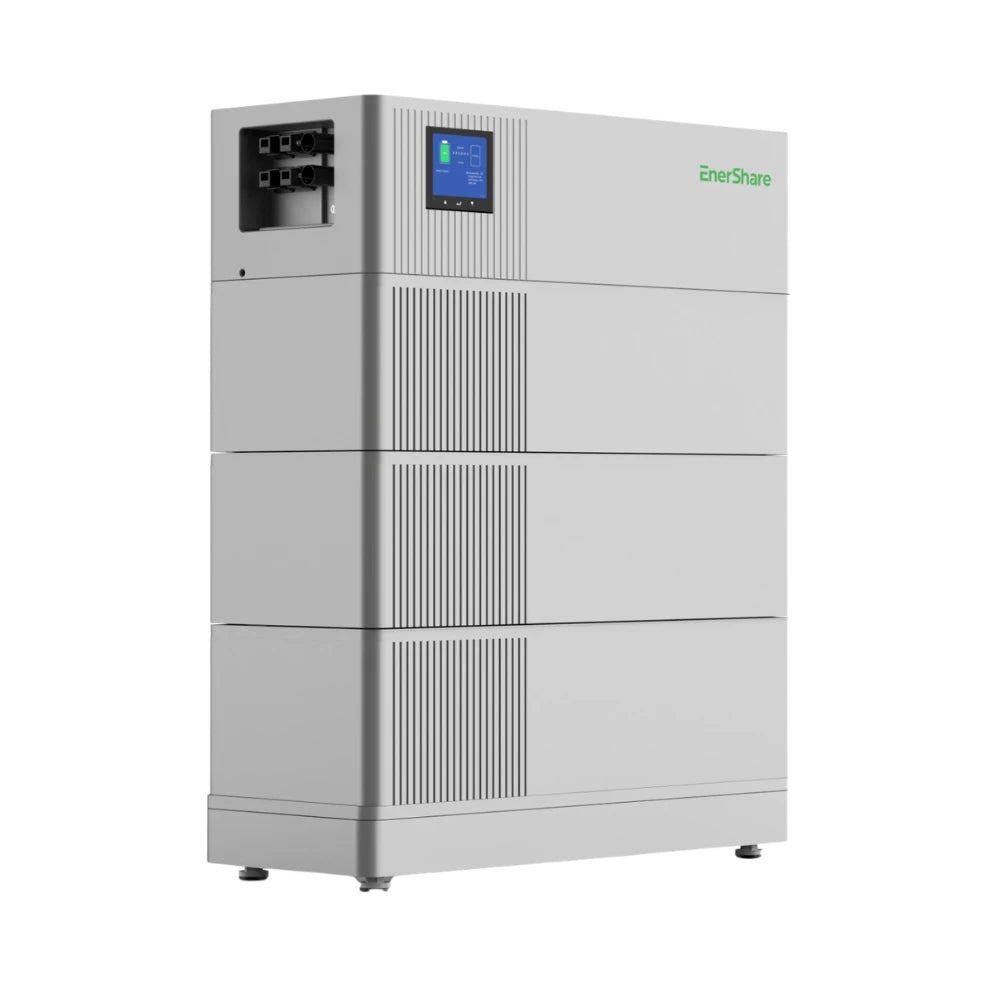

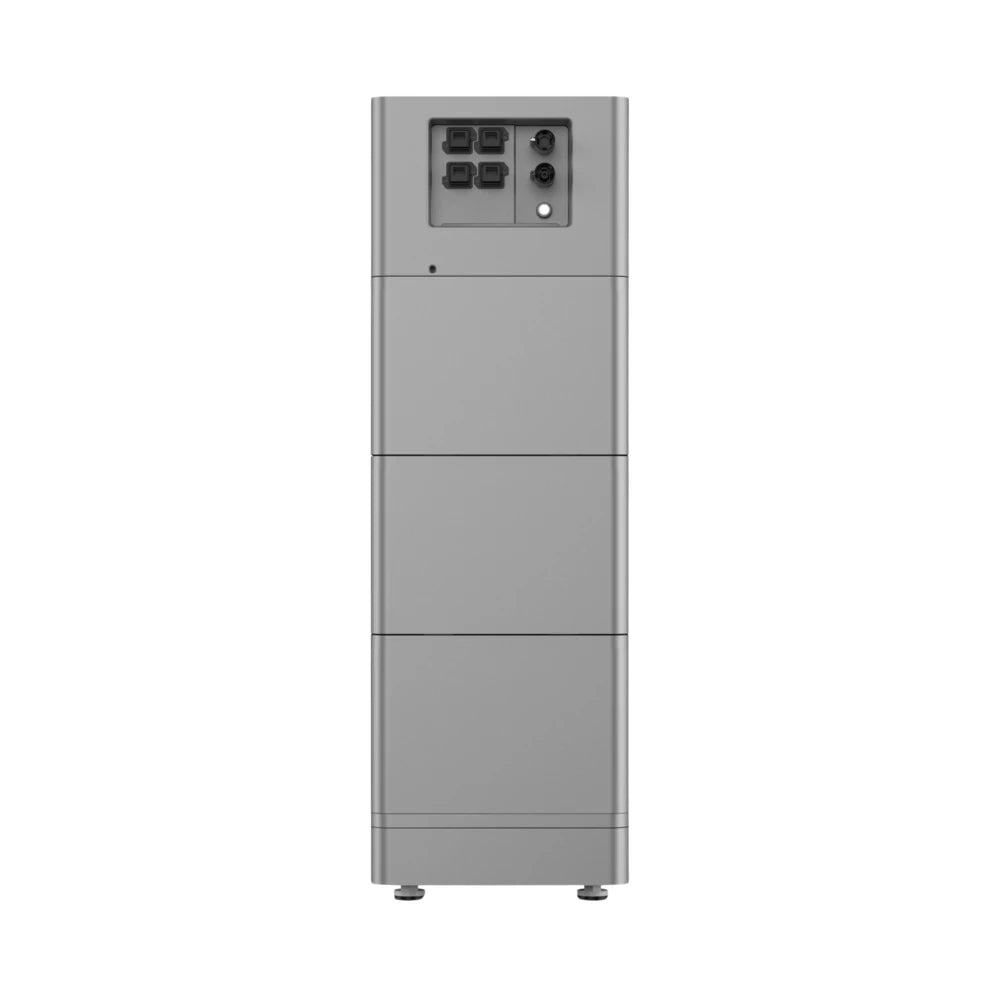

Az EnerShare Smart BMS a Battery Core sorozat vezérlőegysége. A Power-CORE és Energy-CORE akkumulátormodulok ezzel az egységgel alkotnak teljes nagyfeszültségű akkumulátorrendszert.

A Smart BMS üzemi feszültségtartománya 120–600 V, maximális kimeneti árama 30 A, rövid idejű csúcsárama pedig 50 A 5 másodpercig. Kommunikációs oldalon CAN 2.0 és RS485 kapcsolatot biztosít a kompatibilis inverterek felé.

A dokumentáció szerint a rendszer automatikus inverter- és akkumulátorkonfigurációt támogat, külön appos vagy laptopos beállítás nélkül. Az LCD kijelző a legfontosabb adatokat, hibakódokat és töltöttségi állapotot jeleníti meg.

EnerShare Battery Core rendszerek vezérlőegysége
Power-CORE és Energy-CORE modulokhoz használható
Üzemi feszültségtartomány: 120–600 V
Max. kimeneti áram: 30 A
Csúcs kimeneti áram: 50 A, 5 másodpercig
CAN 2.0 / RS485 kommunikáció
LCD kijelző alapadatokkal és hibakódokkal
Automatikus rendszerkonfiguráció támogatása
Kompatibilis 1 és 3 fázisú hibrid inverteres rendszerekkel
Nem önálló akkumulátor, hanem vezérlőegység

Az EnerShare Smart BMS akkor szükséges, ha Power-CORE vagy Energy-CORE akkumulátormodulokból teljes HV akkumulátoros rendszert szeretnének kialakítani.

EnerShare Smart BMS vezérlő egység

208.026 Ft

Max. töltőáram	30 A
Max. kisütési áram	30 A
Működési feszültségtartomány	120–600 V
IP védelem	IP65
Méret	175 × 650 × 260 mm
Tömeg	20
Garancia	10 év
