Deye MS-GS215-2H2 215kWh battery HV ESS - industrial energy storage
In stock
Payment and delivery
Payment and delivery
Payment
You can pay for your order by bank transfer, in HUF or EUR. We will send you a payment request via email, which includes the necessary data for the transfer. If you would like a unique payment method (for example, cash or cash on delivery), select the “Unique payment plan” option and our colleagues will contact you to discuss the details.
Transport
The shipping fee depends on the size and type of the ordered product. For smaller packages, the home delivery fee is 3,790 HUF, for larger products it is 6,490 HUF. For solar panels, batteries and other large products, the delivery is based on an individual price quote, which our staff will always discuss with you after placing the order.
Product description
Product description

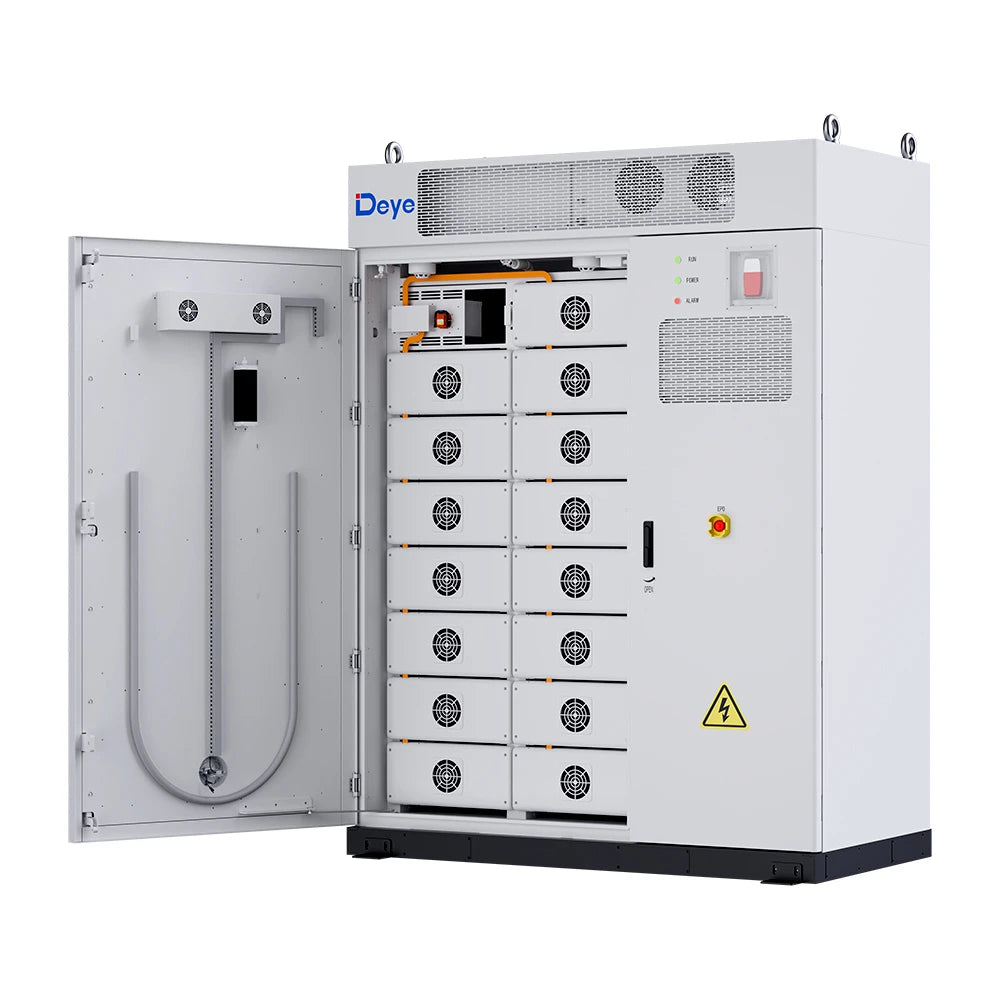

Deye MS-G215-2H2 is an integrated high-voltage industrial energy storage solution that provides 100 kW of power and 215 kWh of capacity in a single cabinet. The system integrates PCS (Power Conversion System), BMS (Battery Management System) and EMS (Energy Management System) functions, eliminating the need to coordinate separate components. This results in simpler installation, faster commissioning and stable operation.
The system is modularly expandable: up to 12 units can be connected in parallel, achieving 1.2 MW of power and more than 2.5 MWh of storage capacity. The LFP cells offer a long lifespan (≥6000 cycles) and increased safety, further enhanced by the aerosol fire extinguishing system, gas venting and explosion-proof design.
Several developments increase the safety and efficiency of operation: the black start function enables starting without a grid, and intelligent temperature control ensures that the operating temperature of the cells does not exceed 35 °C even at full load. The system also supports the integration of diesel generators, so it can also be used in hybrid mode.
Main features in brief:
- Power: 100 kW
- Capacity: 215 kWh
- Modular expandability: max. 12 units → 1.2 MW / 2.58 MWh
- LFP cell technology, ≥6000 cycle life
- Integrated PCS + BMS + EMS → quick installation, easy operation
- Black start and off-grid operation support
- Intelligent temperature control (max. 35 °C, ΔT <8 °C)
- Safety solutions: aerosol fire protection, gas venting, explosion-proof design
- IP54 protection, C4 corrosion resistance, operating temperature between –20 °C and +45 °C
The special feature of the Deye MS-G215-2H2 is that it is a fully integrated, high-voltage energy storage block that simultaneously offers high efficiency, safety and
| Névleges kapacitás (kWh) | 215 kWh |
|---|---|
| Hasznosítható energia | 193 kWh (90% DoD) |
| Csúcsteljesítmény | 110 kW |
| Max. töltőáram | 140 A |
| Max. kisütési áram | 140 A |
| Működési feszültségtartomány | 660-864 V |
| IP védelem | IP54 |
| Telepítési hely | Indoors and partly outdoors |
| Működési hőmérséklet | -20°C ~ +45°C |
| Méret | 1765 × 1000 × 2500mm |
| Tömeg | 2732 kg |
| Garancia | 10 years |
Do you have a question?
View the most frequently asked questions or contact us.
How do I choose the right battery?
How do I choose the right battery?
The most important thing is that the battery fits your inverter and the performance of your system. It is worth considering how much capacity (kWh) you need and whether you want to expand the system later.
Always check the inverter's technical data sheet, as it will tell you which batteries it is compatible with. For example, Huawei inverters only work with Huawei batteries, while Deye inverters can be connected to multiple manufacturers, offering a more flexible solution.
How do inverter types differ?
How do inverter types differ?
The lifespan of modern lithium batteries is usually 10–15 years, depending on usage and temperature conditions.
Manufacturers typically give an expected lifespan of 6,000–8,000 charging cycles – this can mean up to a decade and a half, assuming one cycle per day.
What happens in the event of a power outage?
What happens in the event of a power outage?
If the inverter supports backup (stand-alone) operation, it will automatically switch to the battery during a power outage, so the most important consumers continue to operate.
It is important to know that if there is no backup function, the system will completely stop in the event of a power outage, even if the solar panels are producing. This is because most on-grid inverters cannot operate without mains voltage for safety reasons, so they cannot supply power or charge batteries.
What warranty does the battery have?
What warranty does the battery have?
Depending on the manufacturer, batteries come with a 5 or 10 year warranty, and for some models this is also tied to the number of cycles. We indicate the exact warranty period on each product page, so you can always see how long the manufacturer's warranty lasts before you buy.
What happens if the battery fails?
What happens if the battery fails?
If the battery is not working properly, it is a good idea to first have the problem diagnosed by a professional to rule out incorrect setup or installation. It is possible that the problem is not with the battery itself, but with a non-activated function or communication setting.
If it is proven that there is indeed a problem with the product, you should contact the manufacturer's or distributor's customer service, who will assist you in the troubleshooting process and the warranty administration process.
