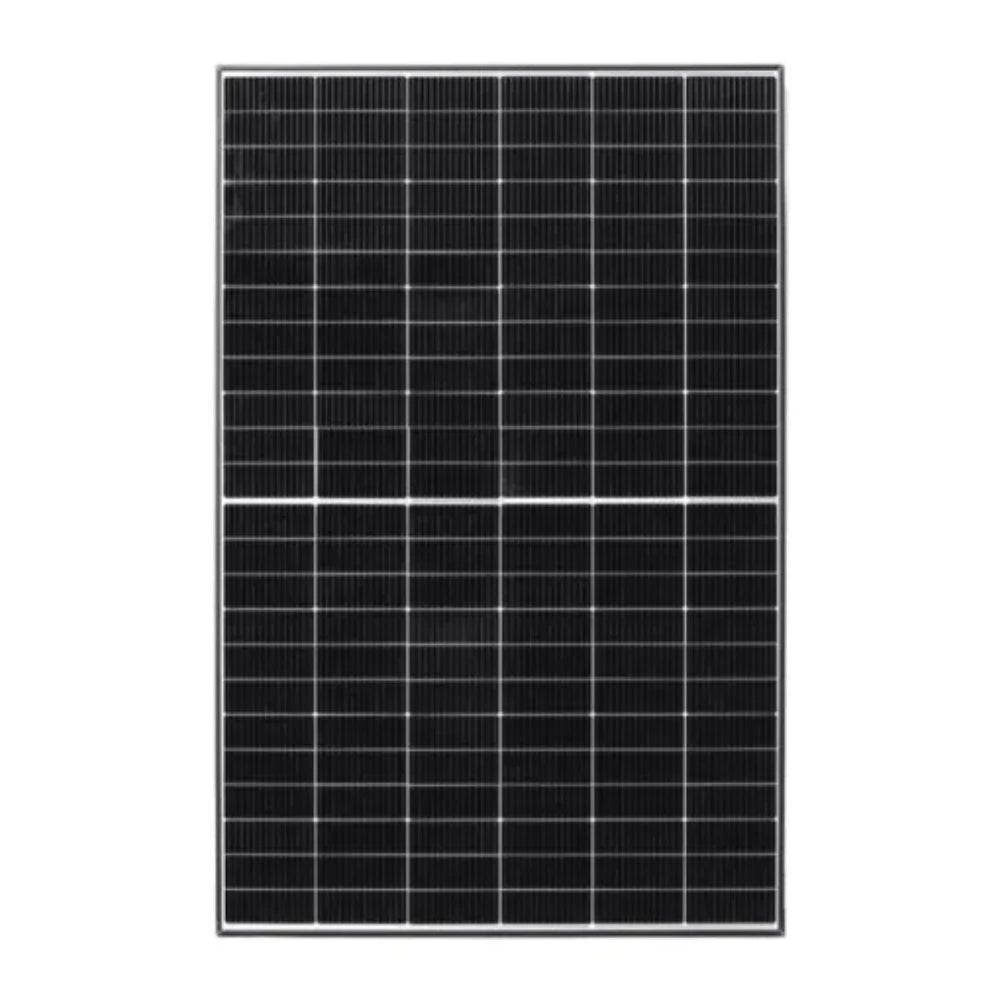

Trina Solar Vertex S+ TSM-NEG9R.28 470W monokristályos napelem - fekete keret
A napelemek elérhetősége gyorsan változhat. A kiválasztott panel aktuális készletéről és az elérhető alternatívákról kérjük, érdeklődjön ügyfélszolgálatunknál.
Payment and delivery
Payment and delivery
Payment
You can pay for your order by bank transfer, in HUF or EUR. We will send you a payment request by email, which includes the necessary data for the transfer. If you would like a unique payment method (for example, cash or cash on delivery), select the “Unique payment plan” option and our colleagues will contact you to discuss the details.
Transport
The shipping fee depends on the size and type of the ordered product. For smaller packages, the home delivery fee is 3,790 HUF, for larger products it is 6,490 HUF. For solar panels, batteries and other large products, the delivery is based on an individual price quote, which our staff will always discuss with you after placing the order.
Product description
Product description
A Trina Solar 470 W-os napeleme N-típusú i-TOPCon cellákkal és dupla üveges kialakítással készül. A fekete alumíniumkeretű modul lakossági és kisebb üzleti rendszerekhez is használható.
Főbb adatok
Névleges teljesítmény: 470 W
Hatásfok: 23,5%
Munkaponti feszültség (Vmp): 46,10 V
Üresjárati feszültség (Voc): 54,60 V
Munkaponti áram (Imp): 10,20 A
Rövidzárási áram (Isc): 10,89 A
Cellatechnológia: N-típusú i-TOPCon
Kialakítás: dupla üveges
Keret: fekete alumínium
Méret: 1762 × 1134 × 30 mm
Tömeg: 21 kg
Termékgarancia: 15 év
Teljesítménygarancia: 30 év
| Névleges teljesítmény (Wp) | 470 Wp |
|---|---|
| Modul hatásfok (%) | 23,50% |
| Cellatípus | Monokristályos, N-type i-TOPCon, félcellás (Half-Cell) |
| Teljesítménygarancia | 30 év |
| Maximális teljesítmény feszültség (Vmp) | 46.10 V |
| Maximális teljesítmény áramerősség (Imp) | 10.20 A |
| Nyitott áramköri feszültség (Voc) | 54.60 V |
| Rövidzárlati áramerősség (Isc) | 10.89 A |
| Cellák száma | 144 |
| IP védelem | IP68 |
| Méret | 1762 × 1134 × 30 mm |
Do you have a question?
View the most frequently asked questions or contact us.
How do solar panel types differ?
How do solar panel types differ?
Polycrystalline panels, often used in older systems, have now been pushed into the background due to their lower efficiency and poorer performance in lower light conditions.
Our webshop offers only modern monocrystalline panels, which provide higher energy yield on less surface area and have a longer lifespan.
Monocrystalline panels can be monofacial (only the front side is active) or bifacial, which also utilizes light reflected from the back side — thus being able to produce up to 10–20% more energy under optimal conditions.
What solar panel should I choose for the inverter?
What solar panel should I choose for the inverter?
The type of solar panels should be selected based on the inverter's MPPT voltage range and current limits. It is important that the operating point voltage of the panels falls within the specified range and that the series-connected arrays do not exceed the inverter's maximum input voltage.
What happens if one of the panels is in shadow?
What happens if one of the panels is in shadow?
If a panel is partially shaded, it will also reduce the power of the other panels in the same string, since the current strength within the string is the same for all modules.
This problem can be avoided with optimization modules (optics). The optimizer monitors and controls the operating point (MPPT) for each panel, so that the shaded panel does not reduce the performance of the others.
Optimizers work like DC/DC converters: if a panel produces less, the device increases voltage and decreases current (or vice versa) to keep the power of all panels within the string balanced.
How does tilt and orientation affect the performance of solar panels?
How does tilt and orientation affect the performance of solar panels?
The performance of solar panels is determined by the angle of incidence of the sun: the more perpendicular the light hits, the greater the production.
In Hungary, the optimal yield is given by a southern orientation and a tilt angle of 35–40°.
With an east-west layout, annual production is approximately 5–10% lower, but daily energy production is more even, which can be beneficial if consumption is high in both the morning and afternoon.
What warranty does the solar panels have?
What warranty does the solar panels have?
Manufacturers usually offer a 12–15 year product warranty and a 25 year performance warranty, which means that the panels will still provide at least 80–85% of their rated performance after two decades.
