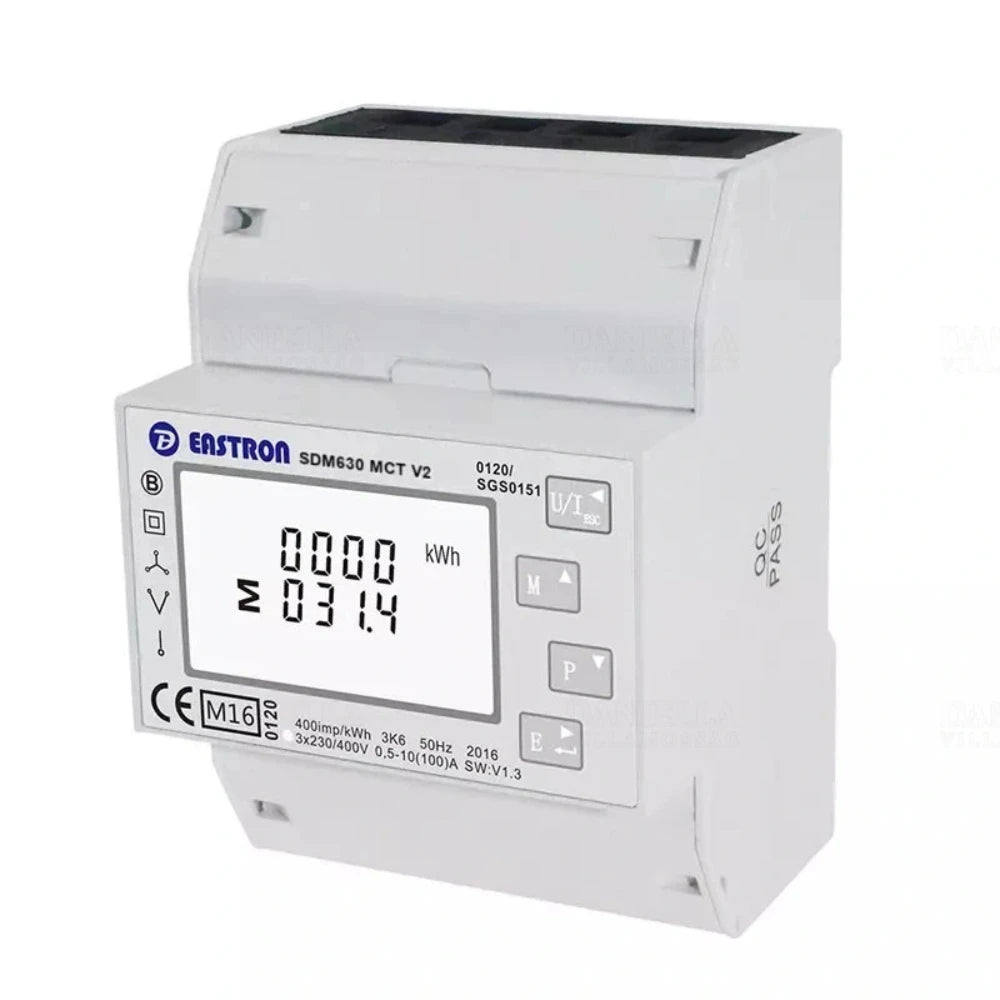

The Solplanet Smart Meter Eastron is a three-phase energy meter for Solplanet inverter systems. Based on distributor and Solplanet documentation, this type is typically referred to as Eastron SDM630-Modbus or SDM630-Modbus V2 meter.

The smart meter connects to the inverter via RS485 Modbus RTU communication. Its function is to measure consumption, production, and energy flow to the grid. This data may be necessary, for example, for export limitation, consumption monitoring, or more accurate management of energy flows in hybrid systems.

The SDM630-Modbus is a direct measurement three-phase meter, typically usable up to 100 A without an external current transformer. It supports bidirectional energy measurement, displays multiple electrical parameters, and is designed for DIN rail mounting.

• Three-phase smart meter for Solplanet inverters
• Typical type: Eastron SDM630-Modbus / SDM630-Modbus V2
• RS485 Modbus RTU communication
• Direct measurement, without external CT
• Max. direct current load: 100 A
• For 3×230/400 V, 50/60 Hz networks
• Bidirectional energy and power measurement
• For measuring consumption, production, and grid export
• Usable for export limitation
• DIN rail mountable design
• LCD display

The Solplanet Eastron three-phase smart meter is necessary when the Solplanet inverter requires accurate grid measurement data in a three-phase system, for example, for export limitation or detailed energy monitoring.
