Product description
Product description

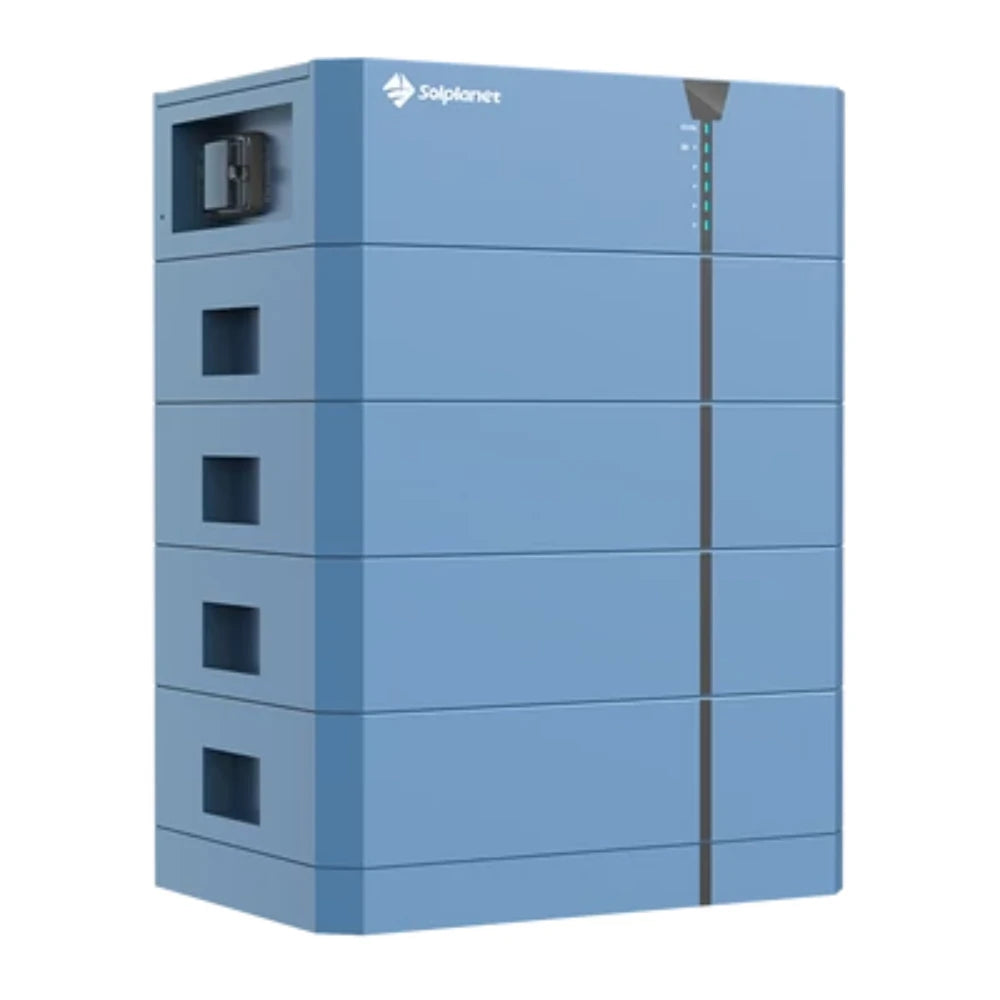

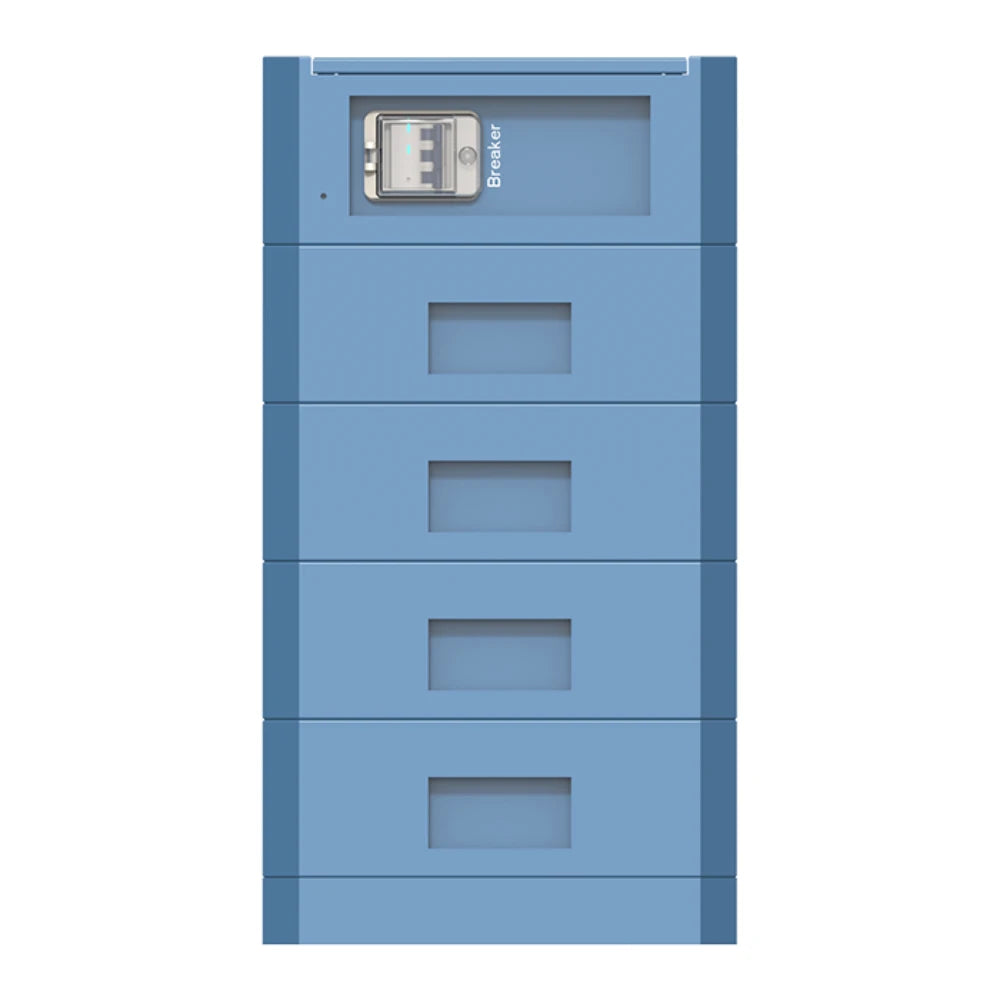

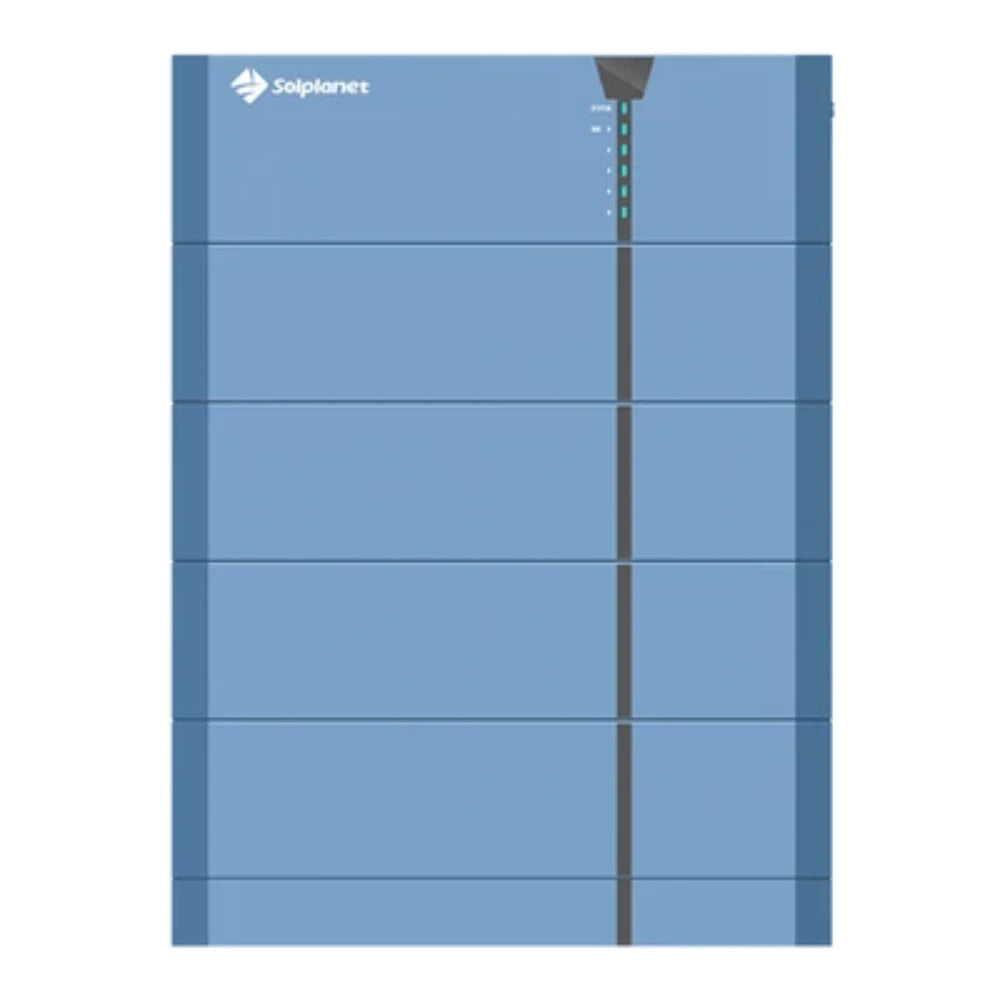

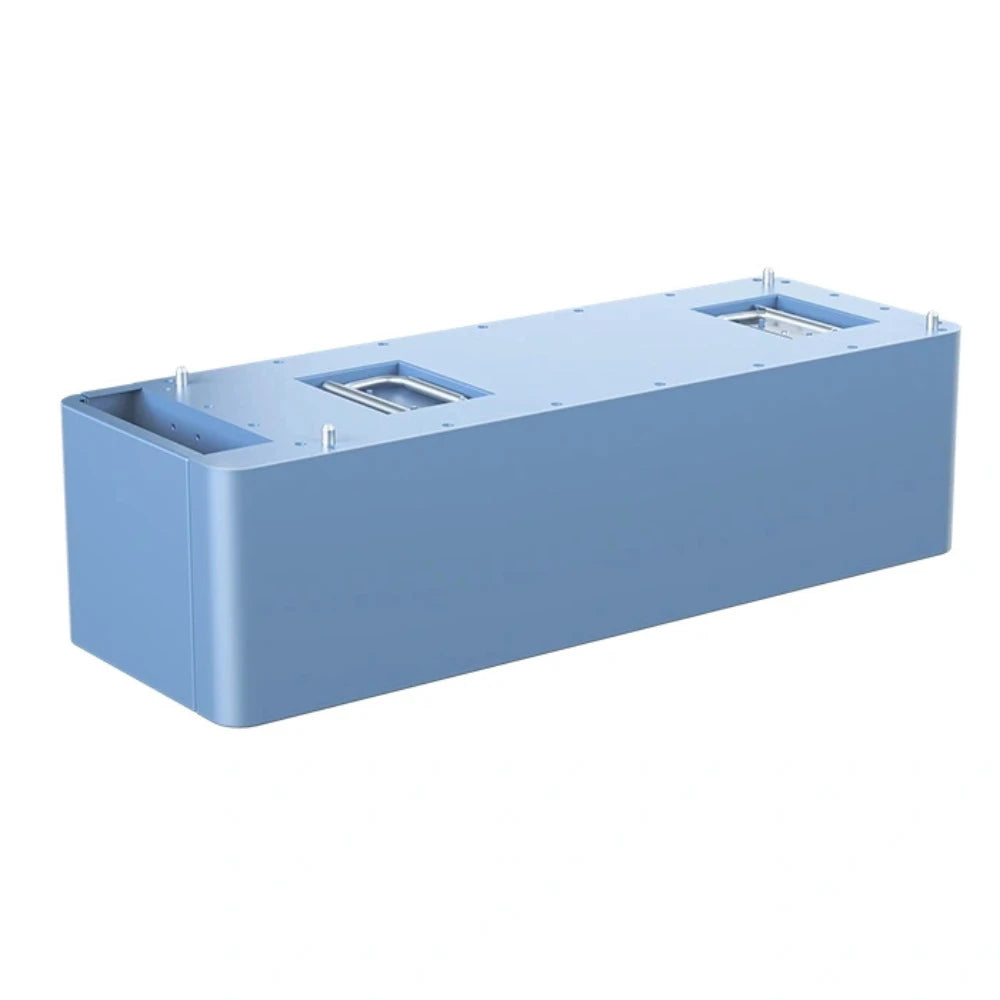

The Solplanet Ai-HB 2.56LG is a high-voltage LiFePO4 battery module for Solplanet energy storage systems. One module has a nominal energy content of 2.56 kWh; the complete system can be built from 3 to 10 modules, with a nominal capacity range of 7.68–25.6 kWh.
The usable energy content of the system, depending on the number of modules, ranges from 6.91–23.04 kWh. The nominal voltage varies between 153.6–512 V, with a maximum charge and discharge current of 50 A.
The modular design allows for expansion with simple cable connections. The system has IP65 protection, is designed for indoor installation, and operates with natural convection cooling. The manufacturer specifies a lifetime of 6000 cycles at 80% DoD and 25 °C.
- High-voltage LiFePO4 battery module
- Module energy content: 2.56 kWh
- System capacity: 7.68–25.6 kWh
- Usable energy: 6.91–23.04 kWh
- 3–10 modules can be used in one system
- Nominal voltage: 153.6–512 V
- Max. charge/discharge current: 50 A
- Round-trip efficiency: 97.8%
- IP65 protection, indoor installation
- RS485 / CAN communication
- Natural cooling
- Lifetime: 6000 cycles under specified test conditions
The Solplanet Ai-HB 2.56LG module can be used for high-voltage battery systems where a modularly expandable, Solplanet-compatible energy storage solution is needed.
| Névleges kapacitás (kWh) | 2.56 kWh |
|---|---|
| Hasznosítható energia | 2.30 kWh |
| Csúcsteljesítmény | 2.56 kW |
| Max. töltőáram | 50 A |
| Max. kisütési áram | 50 A |
| Névleges feszültség | 51.2 V |
| Működési feszültségtartomány | 44.8–56.16 V |
| IP védelem | IP65 |
| Működési hőmérséklet | 0 °C to +55 °C |
| Méret | 600 × 210 × 160 mm |
| Tömeg | 26.5 |
| Garancia | 10 years |
Do you have a question?
View frequently asked questions or contact us.
How do I choose the right battery?
How do I choose the right battery?
First, always check if the battery is compatible with your inverter, as not all systems work with all manufacturers. This information is usually found in the inverter's technical data sheet.
Next, you should consider what storage capacity you need (kWh). This depends on how much energy you want to store and which appliances you wish to operate in case of a power outage. If you are considering future expansion, it is advisable to choose a modularly expandable system.
An important distinction is that some systems operate in a closed ecosystem (e.g., only compatible with batteries from their own manufacturer), while other inverters can be connected to products from multiple manufacturers, thus providing greater flexibility.
If you are unsure about your choice, it is worth seeking expert advice – this can help avoid compatibility issues and unnecessary costs.
How do inverter types differ?
How do inverter types differ?
Inverters differ in several aspects, depending on the system and requirements for which they are used.
1. Grid-tied (on-grid) inverter
This is the most common type. It feeds the generated energy directly back into the grid and does not operate during a power outage.
2. Hybrid inverter
It is also capable of managing batteries, so the generated energy can be stored. In the event of a power outage, certain systems can also provide backup power.
3. Off-grid inverter
Completely independent of the grid. Used in places where there is no electrical grid (e.g., holiday homes, farmsteads).
4. By phase: single-phase and three-phase
Single-phase: for smaller systems (family homes, lower consumption)
Three-phase: for larger systems, with balanced load distribution
5. String inverter vs. optimized system
String inverter: several panels connected in series
Optimized system: individual optimizers per panel, better performance in case of shading
What happens in a power outage?
What happens in a power outage?
In the event of a power outage, the system's operation depends on the inverter type.
If the inverter has a backup (off-grid) function, it automatically switches to battery mode during a power outage, allowing selected consumers (e.g., lighting, refrigerator, essential appliances) to continue operating.
If the inverter does not support this function, the system will shut down in the event of a power outage. This means there will be no power supply even if the solar panels are generating electricity, as grid-tied inverters do not operate without grid voltage for safety reasons.
Therefore, if continuous power supply is important, it is advisable to choose an inverter-battery system that supports backup operation.
What is the warranty on the batteries?
What is the warranty on the batteries?
Battery warranties vary by manufacturer and type.
In most cases, a 5–10 year manufacturer's warranty is provided, which for some models may also be tied to a specific number of charging cycles or performance.
The exact warranty conditions are specified for each product, so before purchasing, you can clearly see the duration and conditions under which the warranty is valid.
If you have any questions regarding the warranty, we will help you navigate the details to ensure you choose the system that best suits your needs.
What happens if the battery fails?
What happens if the battery fails?
As a first step, it's worth checking if the problem is indeed with the device itself, as in many cases, the issue lies with settings, communication, or system connection, rather than the battery.
If the fault is verifiably linked to the product, investigation and resolution will be carried out within the framework of warranty administration, involving the manufacturer or distributor.
If needed, we can assist in initiating and guiding this process to ensure troubleshooting is as quick and smooth as possible.
