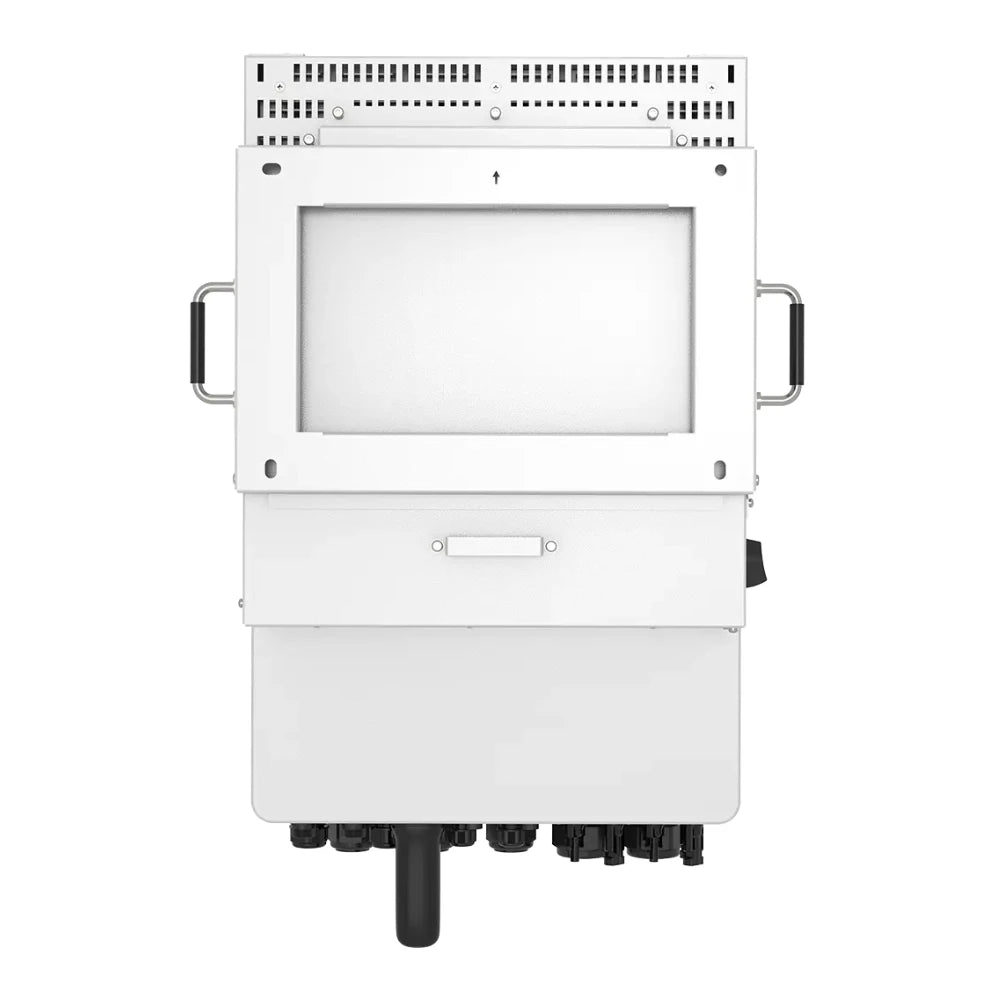

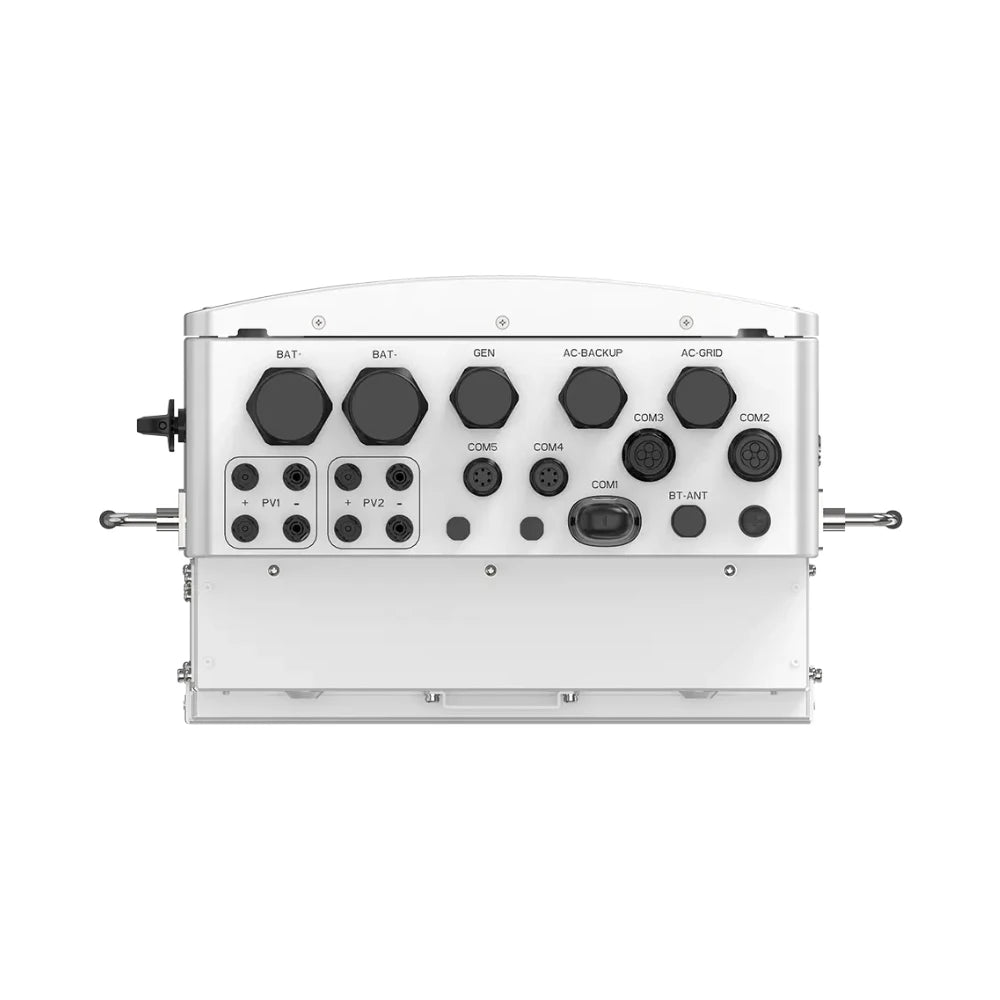

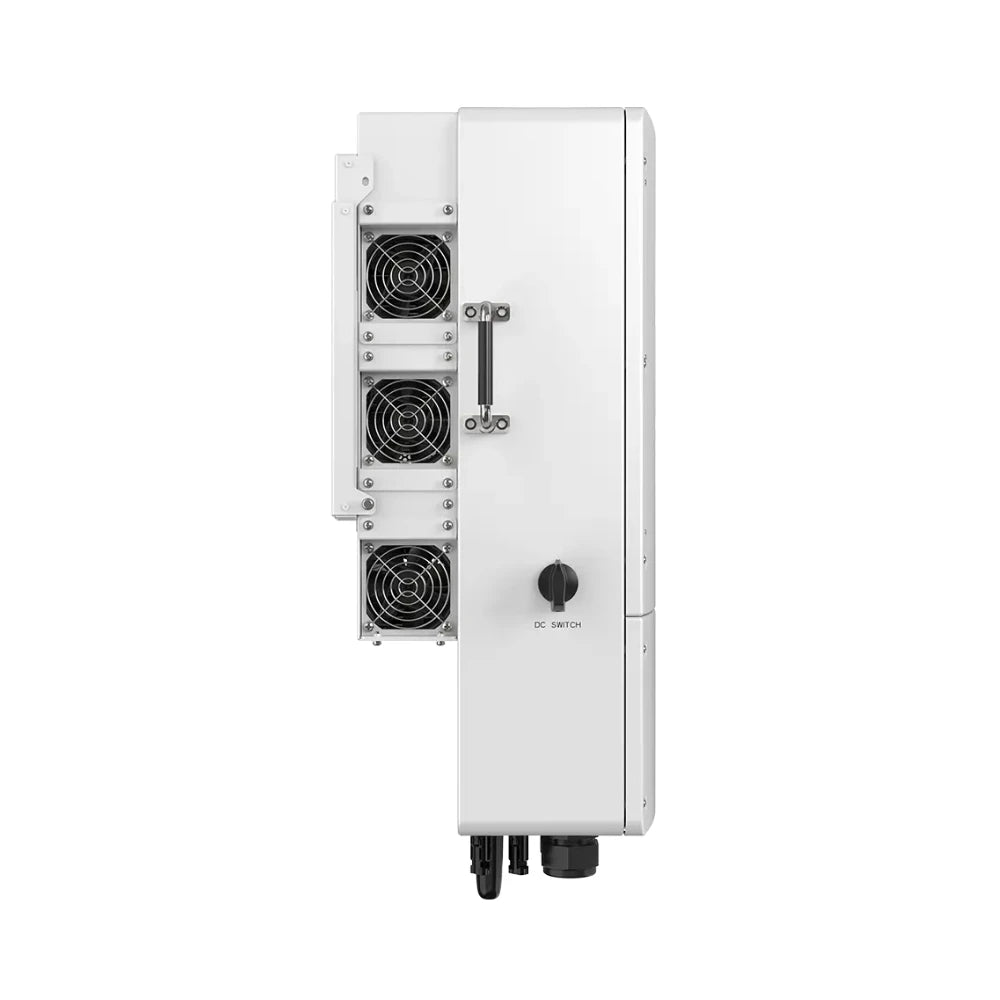

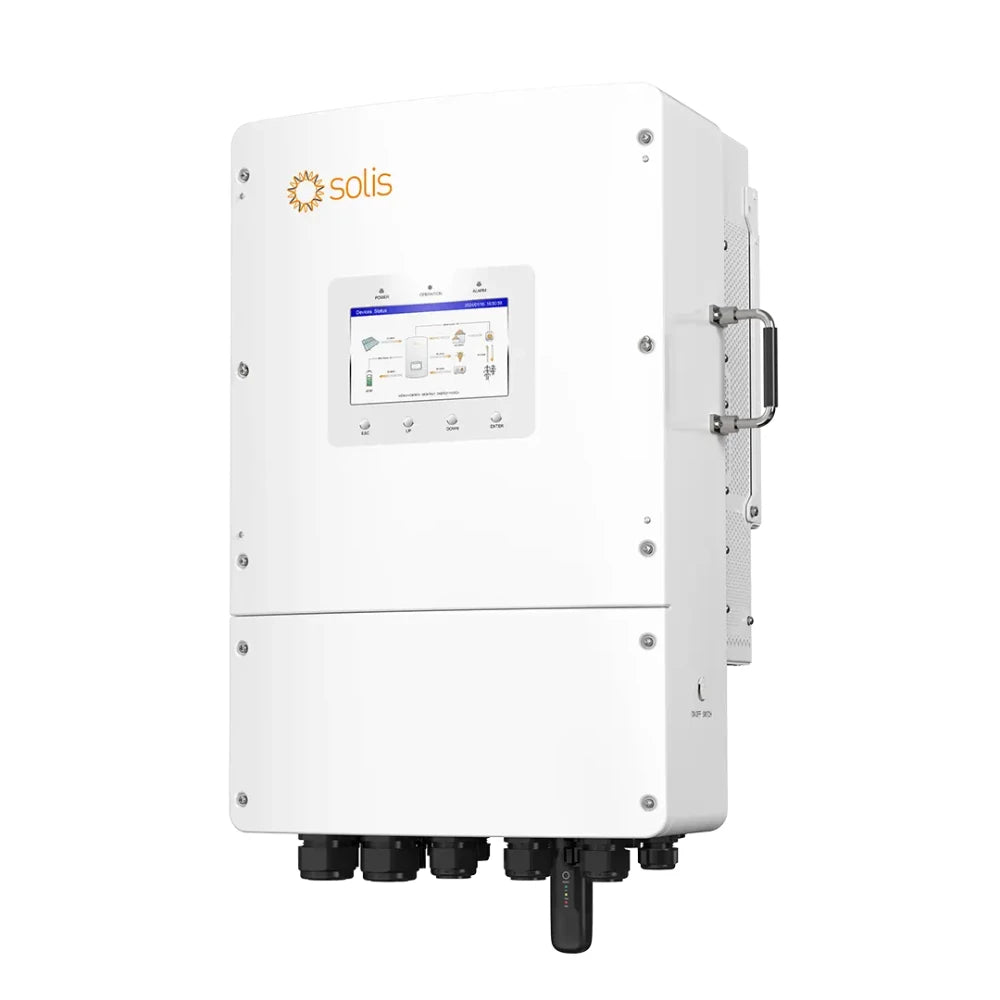

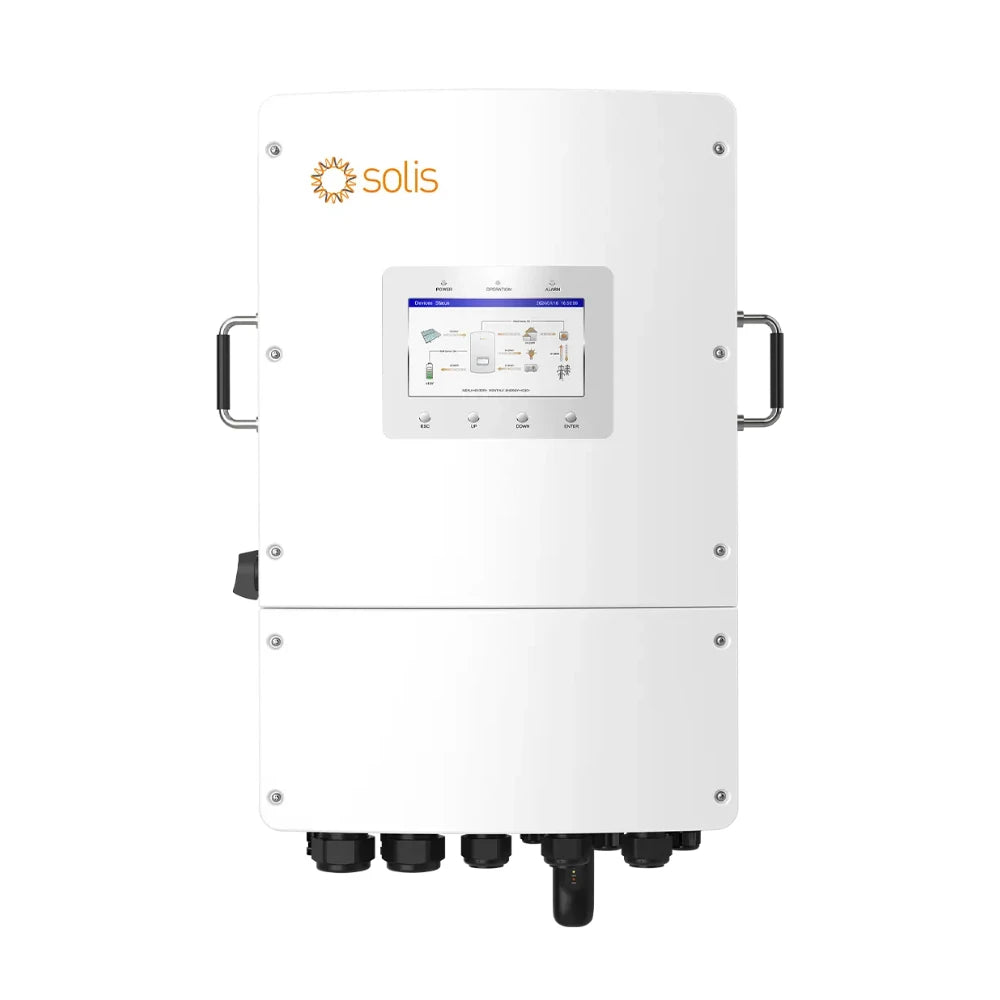

Solis S6-EH3P12K02-NV-YD-L Asymmetric Hybrid Inverter 12kW - 3-phase, Low Voltage (LV)

Payment
You can pay for your order by bank transfer, in Hungarian Forints or Euros. Cash on delivery is available for orders up to HUF 500,000, with a handling fee of HUF 4,990. For orders over HUF 500,000, only bank transfer is accepted. The proforma invoice will be sent to you by email, containing the details required for the transfer.

Shipping
We deliver your orders throughout Hungary with the help of our reliable logistics partners or our own transport. Personal pickup is possible by prior arrangement. Shipping costs are determined based on the size, weight, and type of the ordered product:

• Small package: HUF 3,790
• Large package: HUF 6,490
• Solar panels and batteries: custom shipping fee (based on size, weight, and quantity)

The Solis S6-EH3P-NV-YD-L series of three-phase, low-voltage hybrid inverters includes 8, 10, 12, and 15 kW models in this product group. These devices can be used in grid-connected, battery-storage, and backup power supply systems.

The inverters operate with 40–60 V lithium-ion or lead-acid batteries. The maximum charge and discharge current varies by model, ranging from 180–290 A for the relevant versions. Communication between the battery and the inverter occurs via CAN or RS485 connection.

The devices support three-phase asymmetric output. Different power levels can be assigned to individual phases, with a maximum of 50% of the inverter's nominal power usable on a single phase. The inverters also support DC and AC coupling, generator connection, and the parallel operation of up to six devices.

In the event of a power outage, the backup power output switches over in less than 10 ms when using a single inverter. In off-grid mode, it can provide twice the nominal power for 10 seconds, which can help operate consumers requiring higher starting currents.

The series features IP66 protection, insulation resistance monitoring, residual current detection, reverse polarity protection, and anti-islanding protection. AFCI 2.0 arc fault protection is optional. For local operation, a 7-inch LCD display is available, and for remote monitoring, Wi-Fi, LAN, Bluetooth, and SolisCloud connectivity are provided.

Key features
8–15 kW power range
Three-phase hybrid operation
40–60 V low-voltage battery
Support for lithium-ion and lead-acid batteries
180–290 A maximum charge and discharge current
Three-phase asymmetric output
Up to 50% nominal power per phase
DC and AC coupling
Generator connection and automatic control
Parallel operation of up to 6 inverters
Double backup power for 10 seconds
Switchover in less than 10 ms
97.5% maximum efficiency
IP66 protection
7-inch LCD display and remote monitoring
