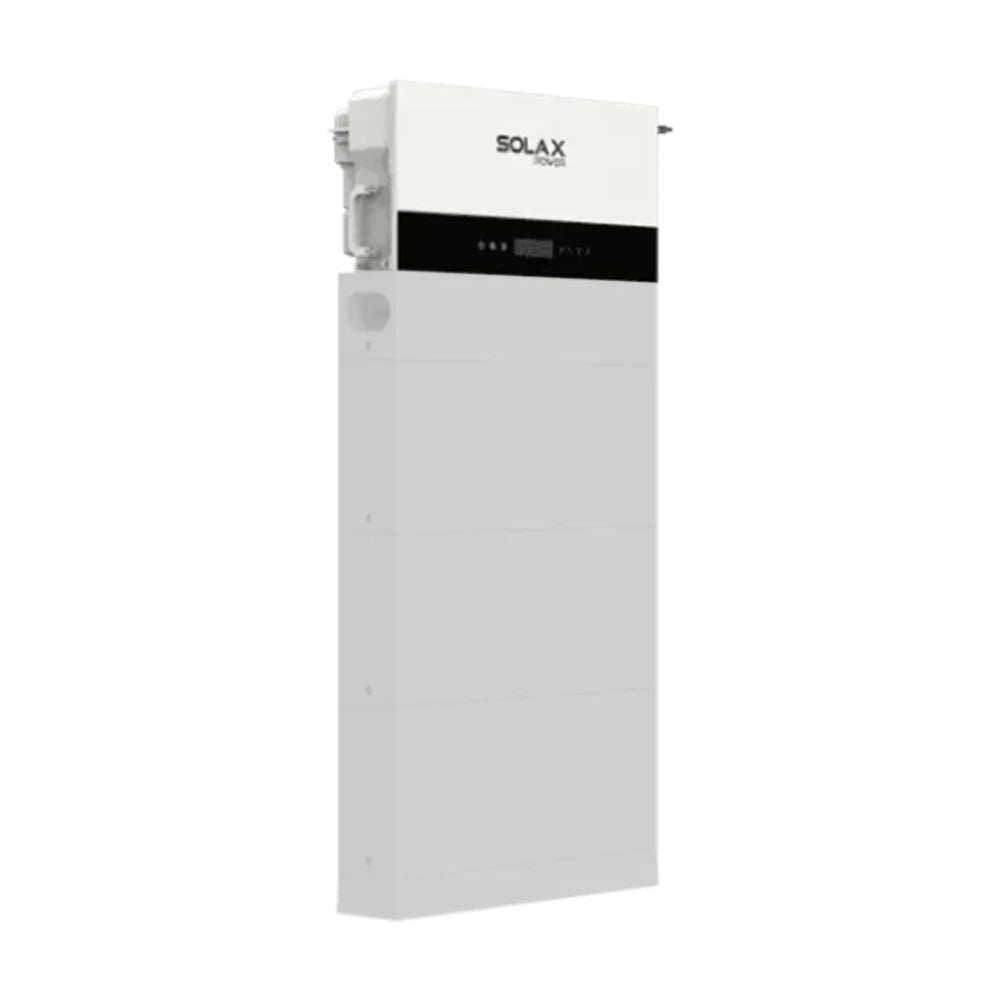

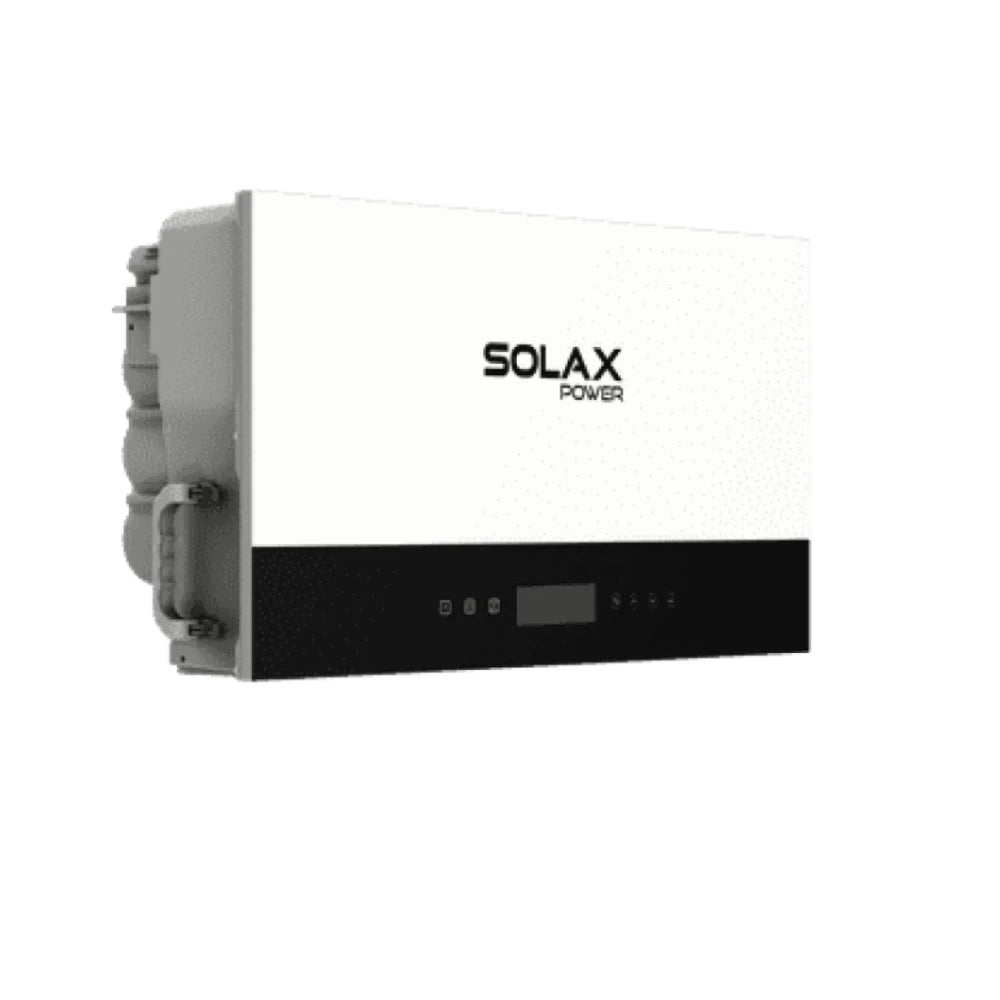

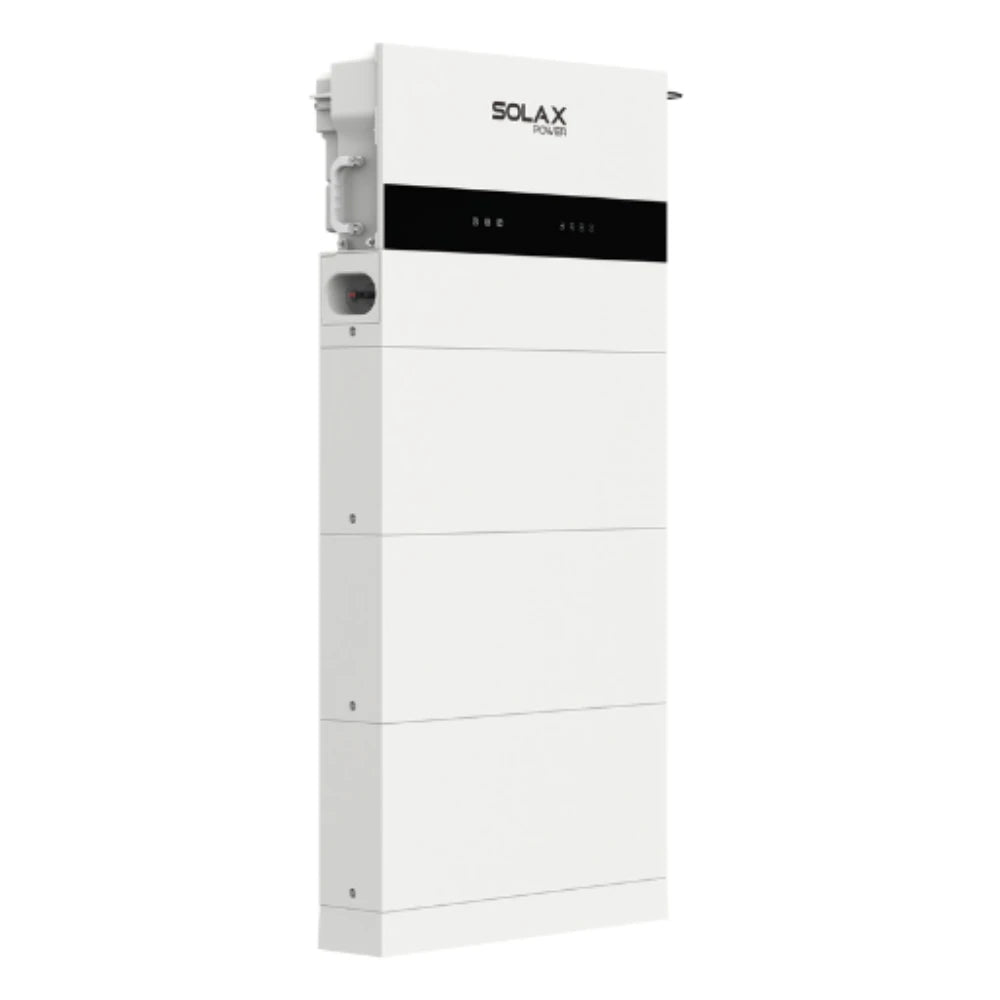

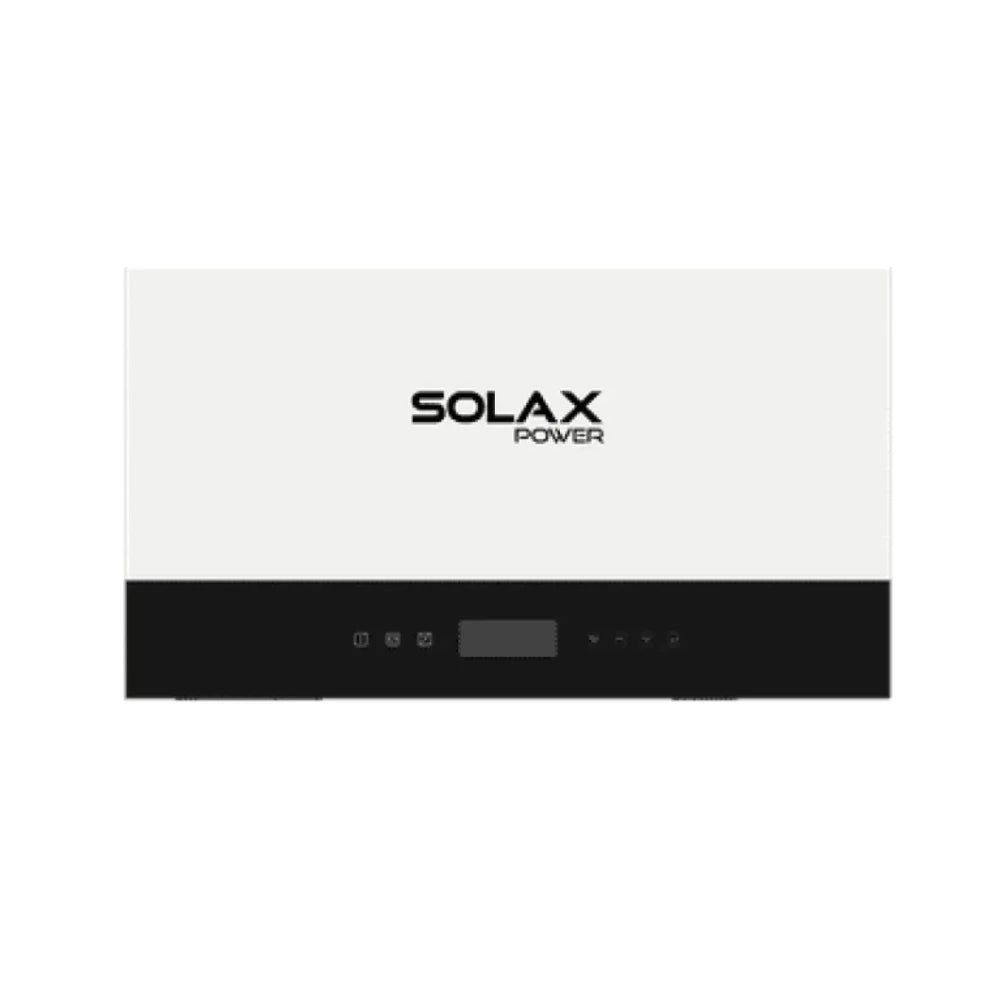

The SolaX X1-IES series of single-phase, high-voltage hybrid inverters are available with power ratings between 2.5 and 8 kW. The AIO design allows for the inverter and modular battery system to be installed as a unified system.

The system operates with an 80-480 V LFP battery, with a maximum charge and discharge current of 50 A. One battery module has a nominal capacity of 5.1 kWh, which can be expanded with up to four modules, for a total of 20.4 kWh.

The inverters support up to 200% PV-side oversizing. The maximum PV input voltage is 600 V, the MPPT operating range is 40-560 V, and the startup voltage is 50 V. Depending on the model, two or three MPPTs are available, with a maximum input current of 20 A per MPPT.

In the event of a power outage, the EPS backup power output switches over in less than 10 ms. In battery mode, the inverter can provide double its nominal power for 10 seconds.

The series supports smart load control, the use of a wireless smart meter, and microgrid operation. Communication is via RS485, CAN, Pocket-X, and digital inputs and outputs.

The devices feature IP66 protection, AC and DC side Type II surge protection, residual current detection, reverse polarity protection, and overheating protection. AFCI arc fault protection is optionally available.

Key features
2.5-8 kW power range
Single-phase hybrid operation
AIO, modular design
80-480 V HV battery system
Maximum 50 A charge and discharge current
1-4 battery modules
5.1-20.4 kWh nominal storage capacity
2 or 3 MPPTs depending on model
Up to 200% PV oversizing
600 V maximum PV input voltage
EPS switchover time: less than 10 ms
Double EPS peak power for 10 seconds
97.6% maximum efficiency
Natural cooling
IP66 protection
AC/DC Type II SPD and optional AFCI
