Product description
Product description

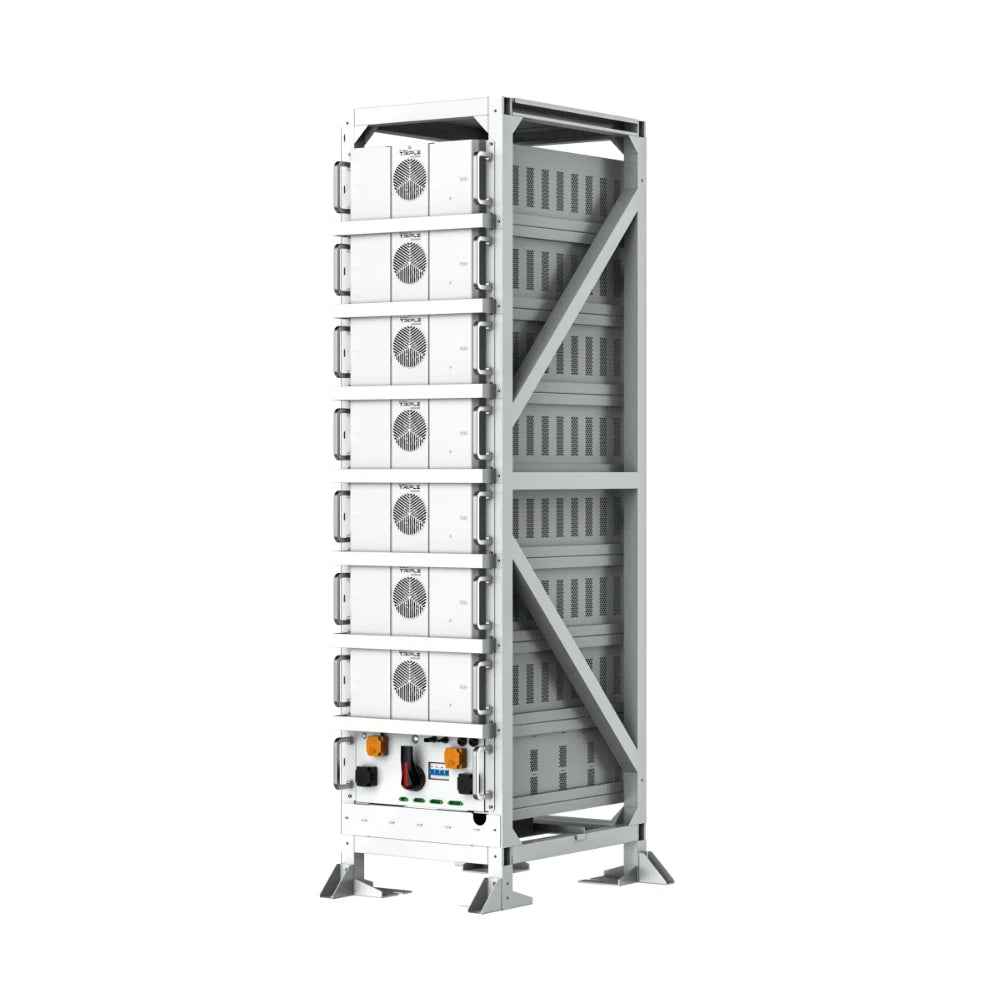

The SolaX HR140 is a rack-mounted, high-voltage (HV) industrial energy storage system developed specifically for commercial and industrial (C&I) projects. The system is built with TB-HR140 modules and a TBMS-R15 control unit, and can be scaled up to 200 kWh of storage capacity.
Available versions:
- SolaX HR140 – 100 kWh
- SolaX HR140 – 115 kWh
- SolaX HR140 – 129 kWh
- SolaX HR140 – 143 kWh
- SolaX HR140 – 158 kWh
- SolaX HR140 – 172 kWh
- SolaX HR140 – 186 kWh
- SolaX HR140 – 200 kWh

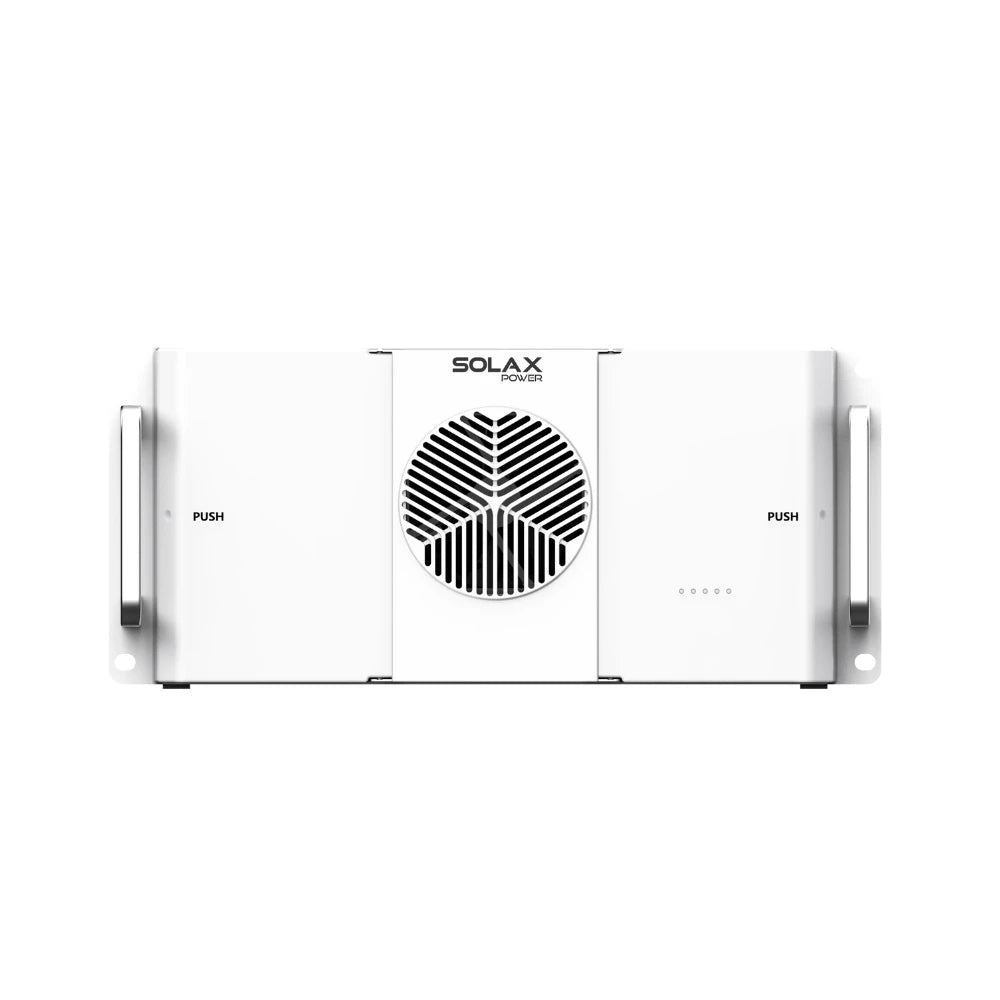

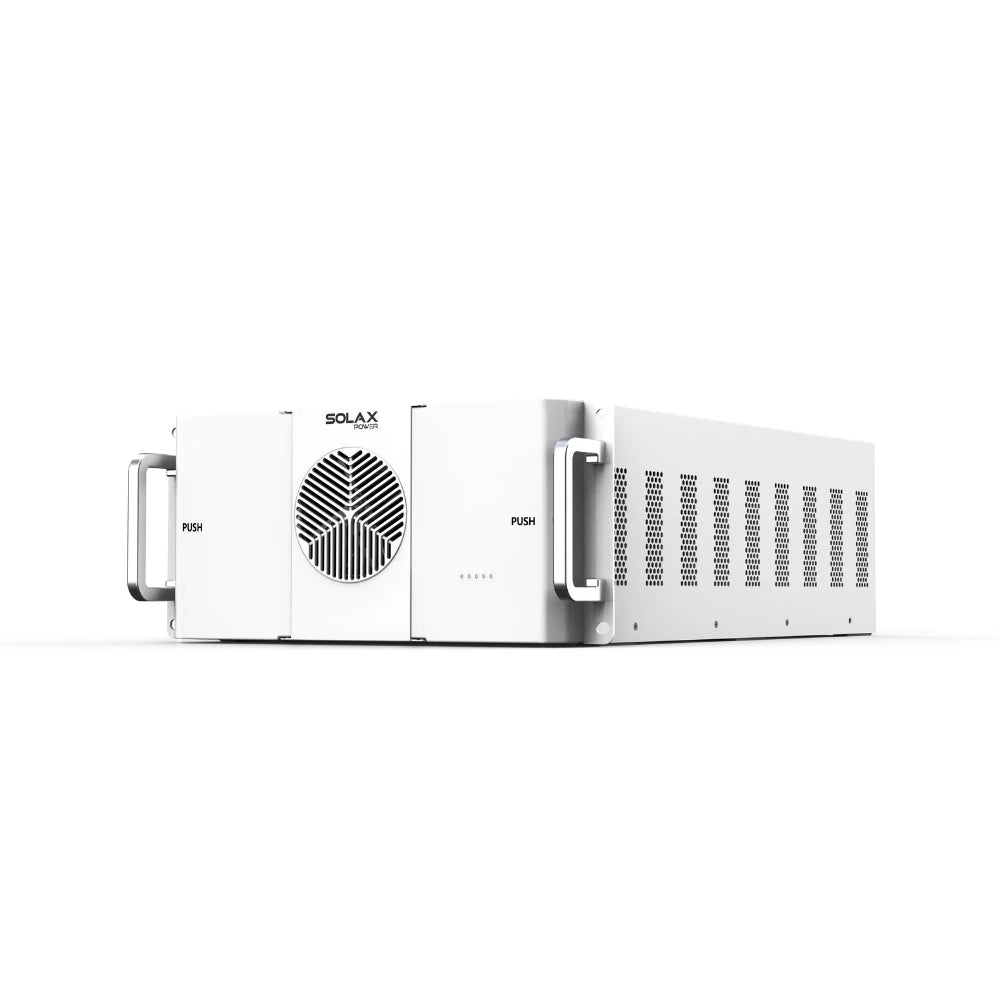

The HR140 series is built from 14.3 kWh modules operating in a series configuration and supervised by a TBMS-R15 battery management system. A system contains 7 to 14 modules, allowing the nominal capacity to be adjusted between 100 and 200 kWh. LFP (lithium iron phosphate) cell technology ensures safe operation, long lifespan, and environmentally friendly operation.
In addition to cell-level monitoring, the TBMS-R15 unit continuously monitors temperature, voltage, and current, and communicates with the PCS inverter via CAN communication. The system is capable of charging between 0–53 °C and discharging at temperatures as low as –20 °C.
The high-voltage architecture (358–716 V) provides high efficiency and low losses during high-power operation. The system is designed for rack mounting with IP20 protection, allowing it to be installed in enclosed indoor energy storage cabinets, technical rooms, or data center systems.
The SolaX HR140 supports parallel scalability, even by connecting multiple rack cabinets. Every system can be integrated into the SolaX Cloud monitoring platform, which enables real-time monitoring, diagnostics, and remote software updates.
- Available capacities: 100 – 200 kWh
- 14.3 kWh per module, in 7 – 14 module configurations
- LFP cell technology, cobalt-free, high cycle life
- TBMS-R15 control unit with cell-level monitoring
- High-voltage (HV) architecture, 358 – 717 V range
- Rack-mount design for enclosed indoor installation
- IP20 protection, natural cooling, fanless operation
- Charging temperature: 0 – 53 °C
- Discharging temperature: –20 – 53 °C
- More than 6000 charging cycles, 90% DOD
- CAN communication with PCS, SolaX Cloud compatible
- Certifications: IEC62619, EN62477, IEC61000, UN38.3
- 10-year warranty
The SolaX HR140 series is an industrial-grade energy storage solution, and with its high-voltage design, cell-level safety monitoring, and flexible capacity expansion, it is an ideal choice for factories, office buildings, energy storage stations, or microgrid systems.
| Névleges kapacitás (kWh) | 157.6 kWh |
|---|---|
| Hasznosítható energia | 141.8 kWh |
| Csúcsteljesítmény | 79 kW |
| Max. töltőáram | 140 A |
| Max. kisütési áram | 140 A |
| Névleges feszültség | 563.2 V |
| Működési feszültségtartomány | 457–642 V |
| IP védelem | IP20 |
| Működési hőmérséklet | 0°C ~ +53°C |
| Méret | 461 x 228 x (778x11) mm |
| Tömeg | 344.3 kg |
| Garancia | 10 years |
