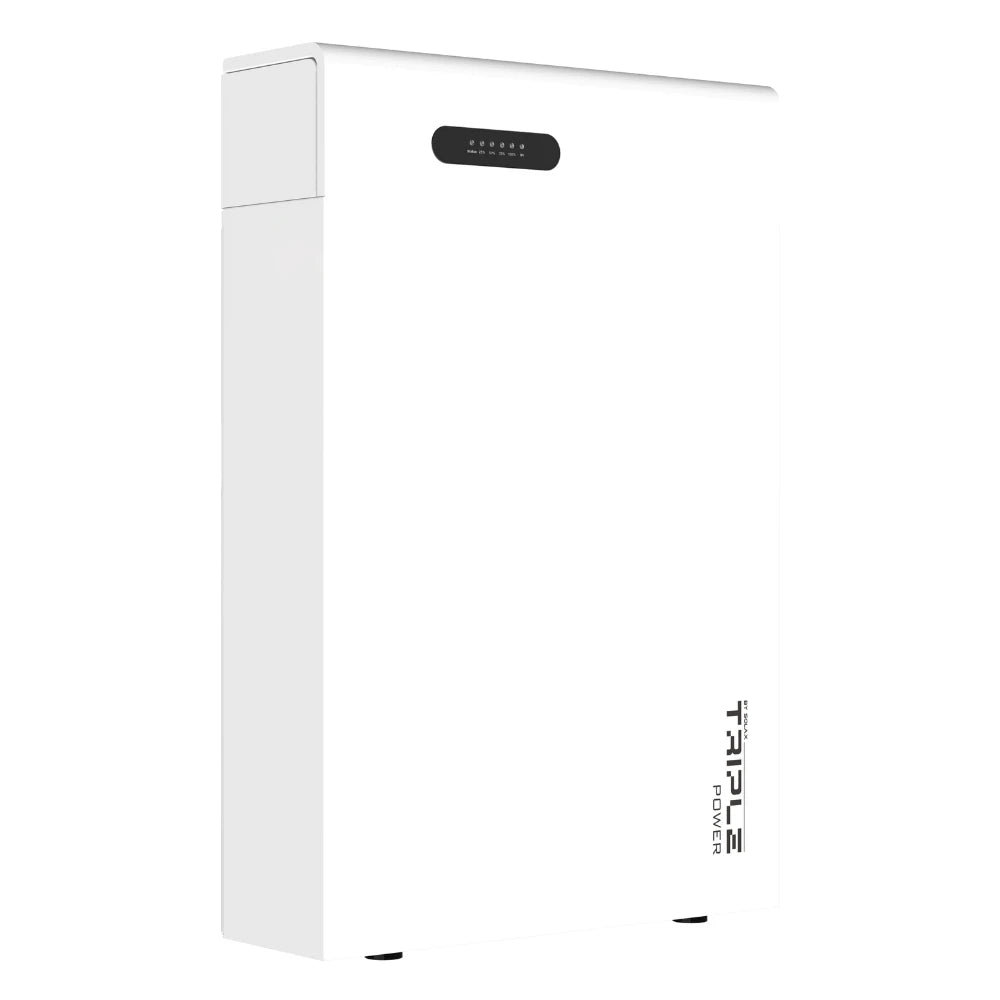

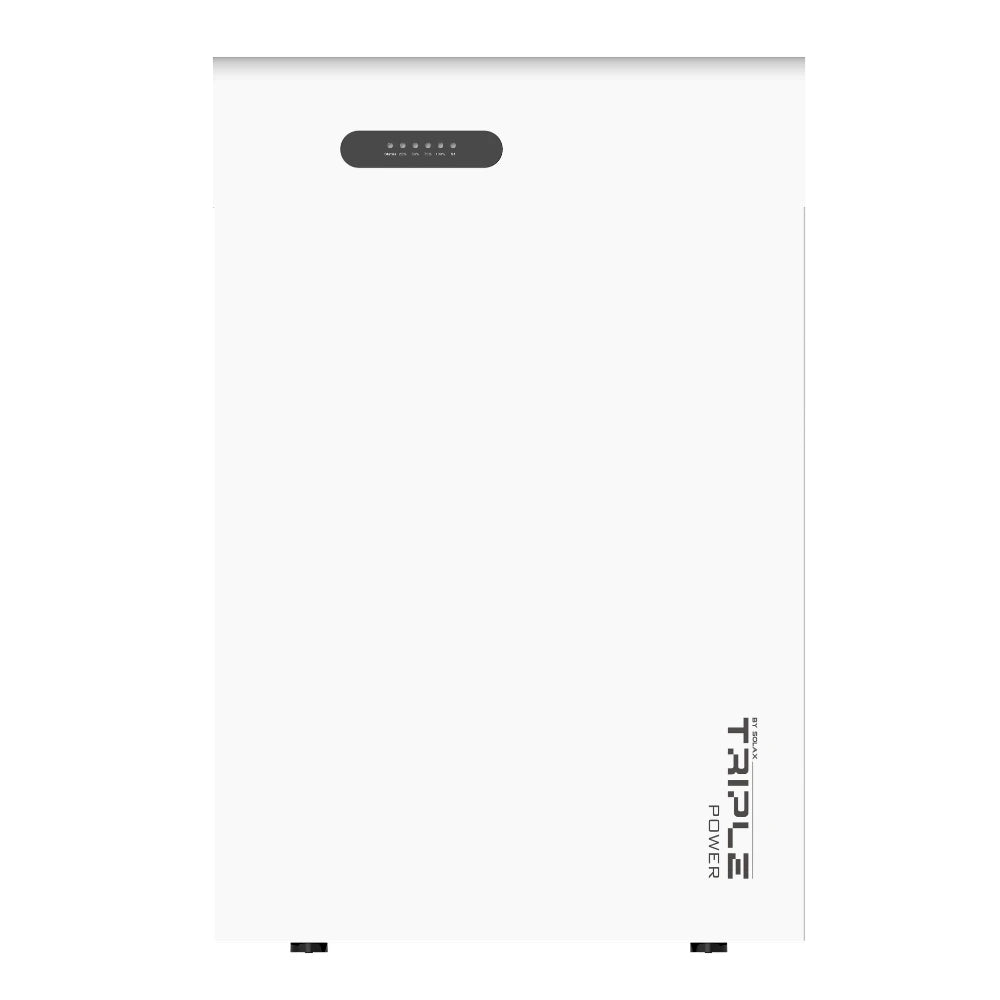

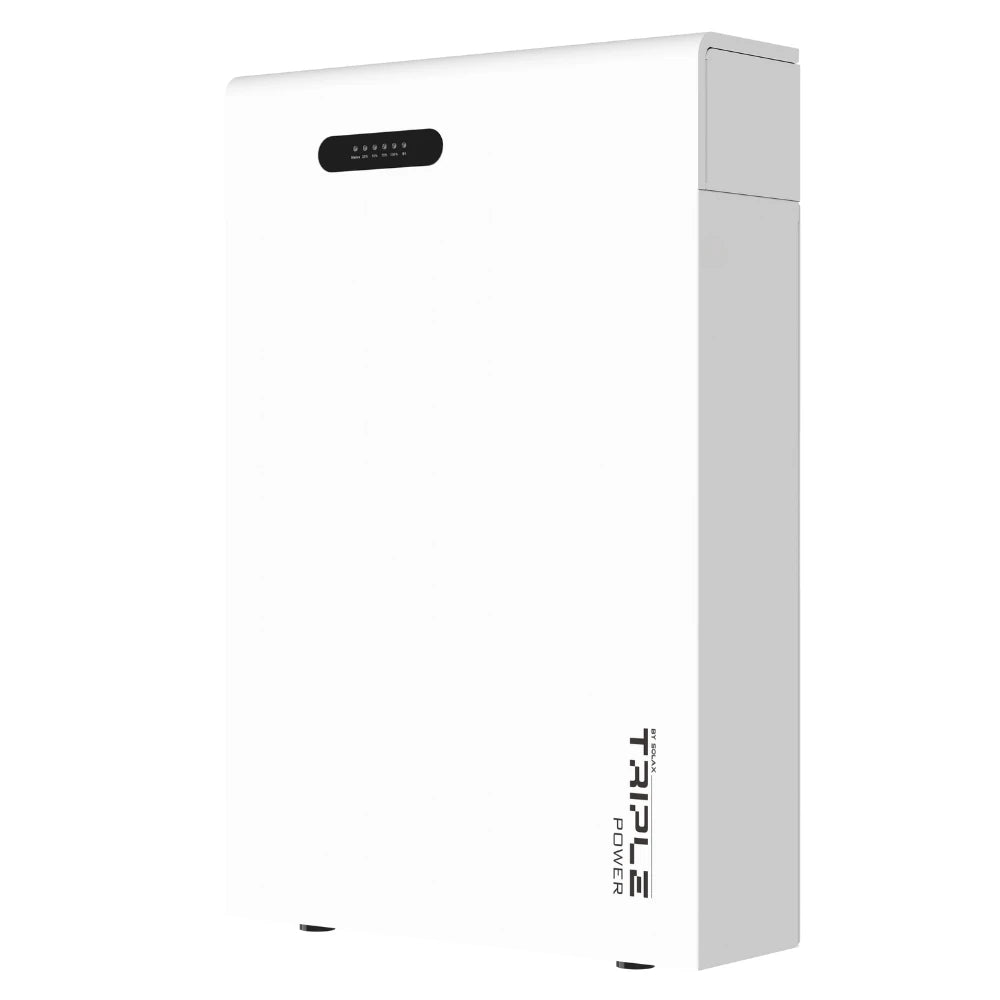

The SolaX H5.8 V3 Master is the control unit for the T-BAT H 5.8 V3 high-voltage battery system. It includes LiFePO₄ cells, an integrated BMS, and a battery pack with a nominal capacity of 5.8 kWh. The usable energy content is 5.5 kWh at a 95% depth of discharge.

A single Master module has a nominal voltage of 115.2 V and an operating voltage range of 100–130 V. It can only be used independently with compatible SolaX inverters whose battery-side voltage range covers this. If the inverter requires a higher minimum battery voltage, Slave modules must be connected.

Up to five Slave modules can be connected to the Master, allowing a battery group's nominal capacity to be expanded up to 34.6 kWh. With the heating function, the charging and discharging temperature range is between –30 and +55 °C. The device can be installed indoors or outdoors, mounted on a wall or floor.

Key data
Nominal energy: 5.8 kWh
Usable energy: 5.5 kWh
Nominal voltage: 115.2 V
Operating voltage: 100–130 V
Maximum power: 4 kW
Depth of discharge: 95%
Size: 474 × 715 × 150 mm
Weight: 61.5 kg
Protection class: IP66
Warranty: 10 years
