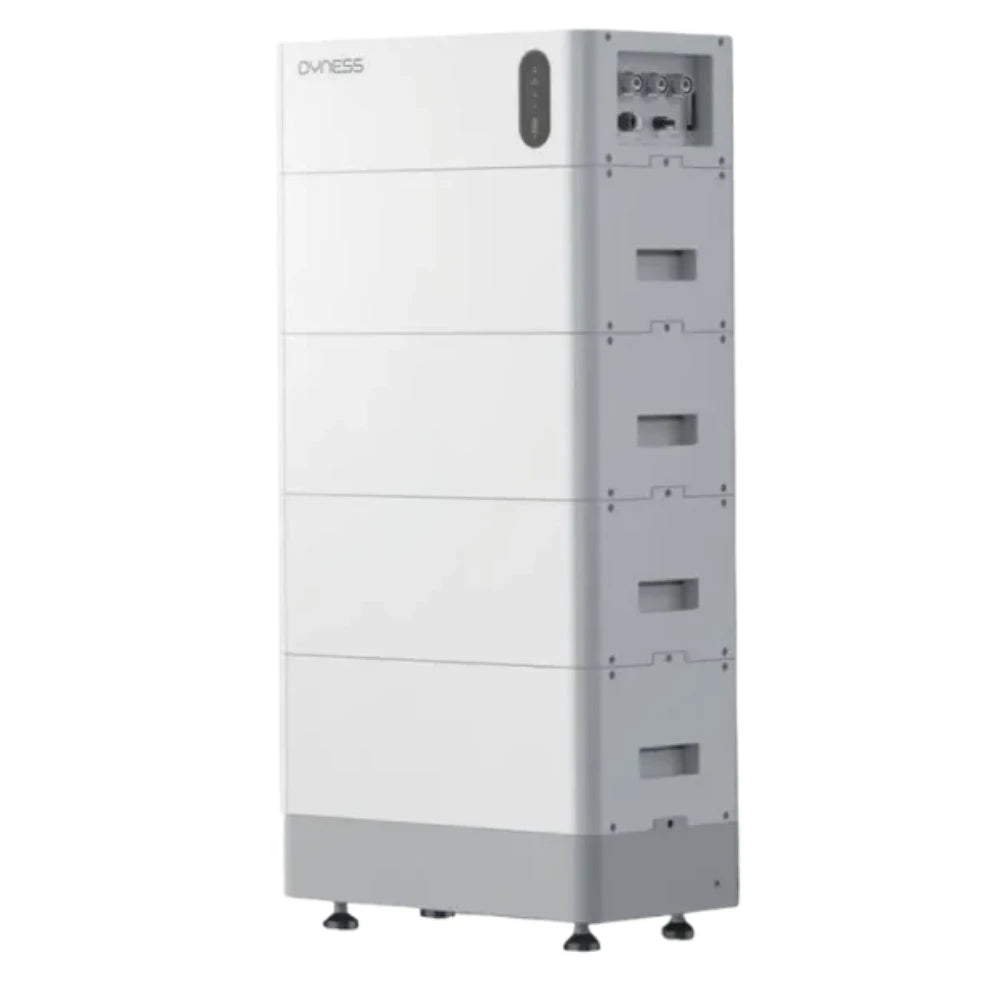

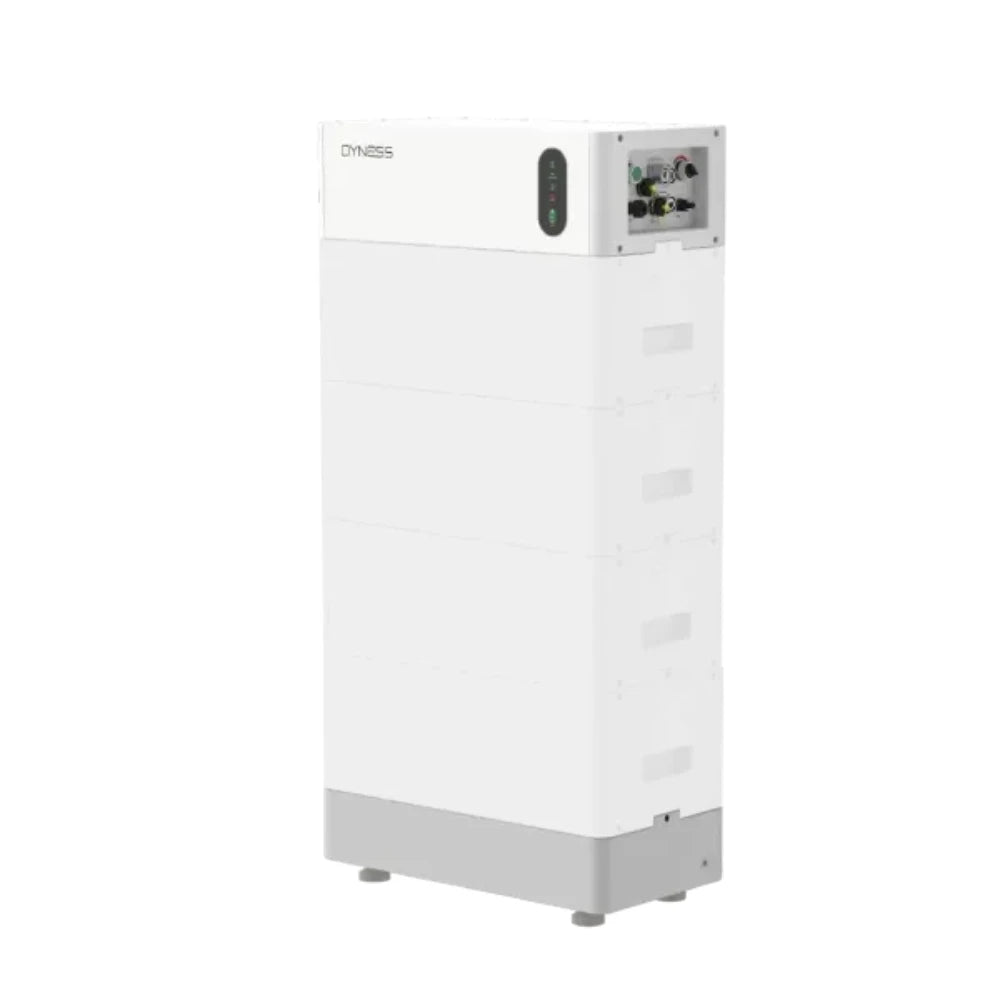

The Dyness Tower Pro control module is the monitoring and connection unit required for the operation of the high-voltage battery system. It controls the connected HV9640 battery modules, monitors charging and discharging processes, and communicates with compatible inverters via CAN or RS485 connection.

The control module itself does not store energy. A functioning system requires a minimum of two and a maximum of six battery modules. A system with a heating function can be charged down to –20 °C; without heating, the lower limit for charging temperature is 0 °C. The discharge temperature range is between –20 and +50 °C.

The entire Tower Pro system has IP55 protection, a built-in aerosol fire extinguishing unit, and Wi-Fi and app-based monitoring. Up to 12 complete Tower Pro systems can be connected in parallel. Exact inverter compatibility must be checked before installation.

Key data
System type: high voltage
Battery module: Dyness HV9640
Number of modules: 2–6 pcs
System capacity: 7.68–23.04 kWh
System voltage: 192–576 V
Communication: CAN and RS485
Charging temperature with heating: between –20 and +55 °C
Protection class: IP55
Parallel connectivity: up to 12 systems
Warranty: 10 years
