Deye SUN-EVSE22K01-EU-AC Electric Vehicle Charger 22kW - 3 Phase

Payment
You can pay for your order by bank transfer, in Hungarian Forints or Euros. Cash on delivery is available for orders up to HUF 500,000, with a handling fee of HUF 4,990. For orders over HUF 500,000, only bank transfer is accepted. The proforma invoice will be sent to you by email, containing the details required for the transfer.

Shipping
We deliver your orders throughout Hungary with the help of our reliable logistics partners or our own transport. Personal pickup is possible by prior arrangement. Shipping costs are determined based on the size, weight, and type of the ordered product:

• Small package: HUF 3,790
• Large package: HUF 6,490
• Solar panels and batteries: custom shipping fee (based on size, weight, and quantity)

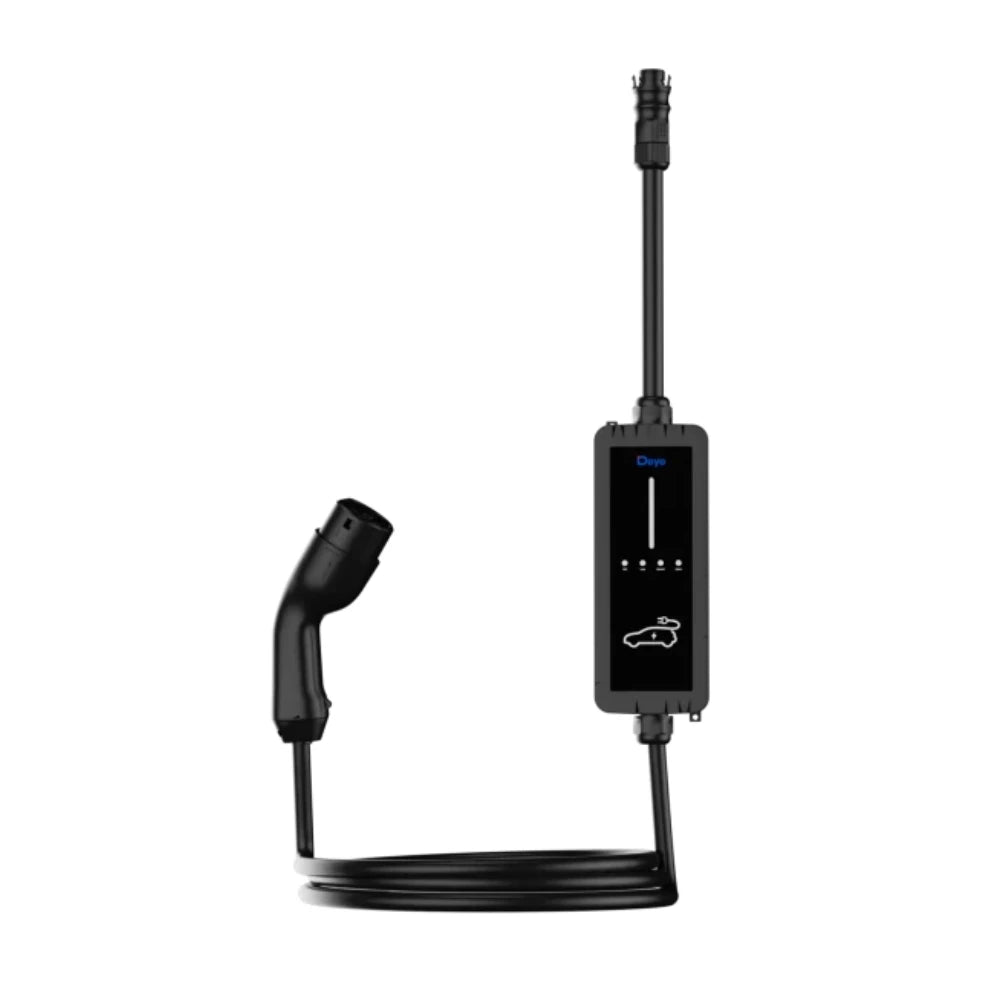

The Deye SUN-EVSE22K01-EU-AC is a three-phase AC car charger with a maximum output of 22 kW. It operates with a maximum input current of 32 A and features a 4.2-meter fixed charging cable. It provides a charging power of up to 7 kW with a single-phase connection and up to 22 kW with a three-phase network.

Charging can be initiated by direct connection, after identification, or based on a preset time. The device supports LoRa, Wi-Fi, and Bluetooth communication. When used with a Deye hybrid inverter and the manufacturer's energy management system, timed charging or charging exclusively from surplus solar energy generation can be configured.

Built-in protection handles over- and undervoltage, overload, short circuit, overheating, ground fault, and leakage current. The charger features 6 mA DC leakage current detection and Type II surge protection.

Key Specifications
Maximum power: 22 kW three-phase
Single-phase power: up to 7 kW
Maximum current: 32 A
Connection: 1 or 3 phase
Charging cable length: 4.2 m
Communication: LoRa, Wi-Fi, Bluetooth
Protection class: IP66
Operating temperature: –40 to +55 °C
Dimensions: 104 × 264 × 57.5 mm
Weight: 3.7 kg
